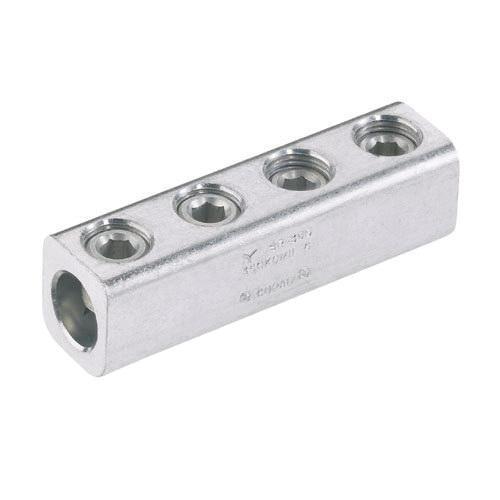

Panduit® SR-2-XY
Panduit® Pan-Lug™ SR-2-XY SR Series Dual Rated Mechanical Splicer/Reducer Connector, 14 to 2 AWG, 14 to 10 AWG Solid/Stranded Aluminum/Copper Conductor, Aluminum
- Manufacturer Name: Panduit
- MPN: SR-2-XY
- Brand Name: Panduit®
- UPC: 074983607716
- FEPN: SR-2-XY PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Term® splices are designed and manufactured for fast assembly and long reliable performance. As the demand for splices increases, it becomes essential to provide a complete system for termination products. We provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit® Pan-Lug™ Mechanical Splicer/Reducer Connector, Dual Rated, Series: SR Series, Solid/Stranded Aluminum/Copper Conductor, 14 to 2 AWG, 14 to 10 AWG Conductor, 600 VAC, 0.63 in L Wire Strip, 90 deg C, Aluminum, Tin Plated, 1.38 in L x 0.5 in W x 0.56 in H
| Dimensions | : | 1.38 in L x 0.5 in W x 0.56 in H |
| Finish | : | Tin Plated |
| Series | : | SR Series |
| Specifications | : | 0.63 in L Wire Strip |
| Temperature Rating | : | 90 deg C |
| Type | : | Dual Rated |
| Voltage Rating | : | 600 VAC |
| Conductor Size | : | 14 to 2 AWG, 14 to 10 AWG |
| Conductor Type | : | Solid/Stranded Aluminum/Copper |
| Material | : | Aluminum |
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Tin plated to inhibit corrosion
- Rounded bottoms to facilitate taping
- Solid center barrier prevents contact of dissimilar metal conductors
