Eaton Bussmann series Low-Peak™ ultimate protection fuses are the industry's only UL listed and CSA Certified fuses with a 300 kA interrupting rating, providing 50% more protection than any other listed fuse. The high interrupting rating allows for simple, worry free installation in virtually any application.

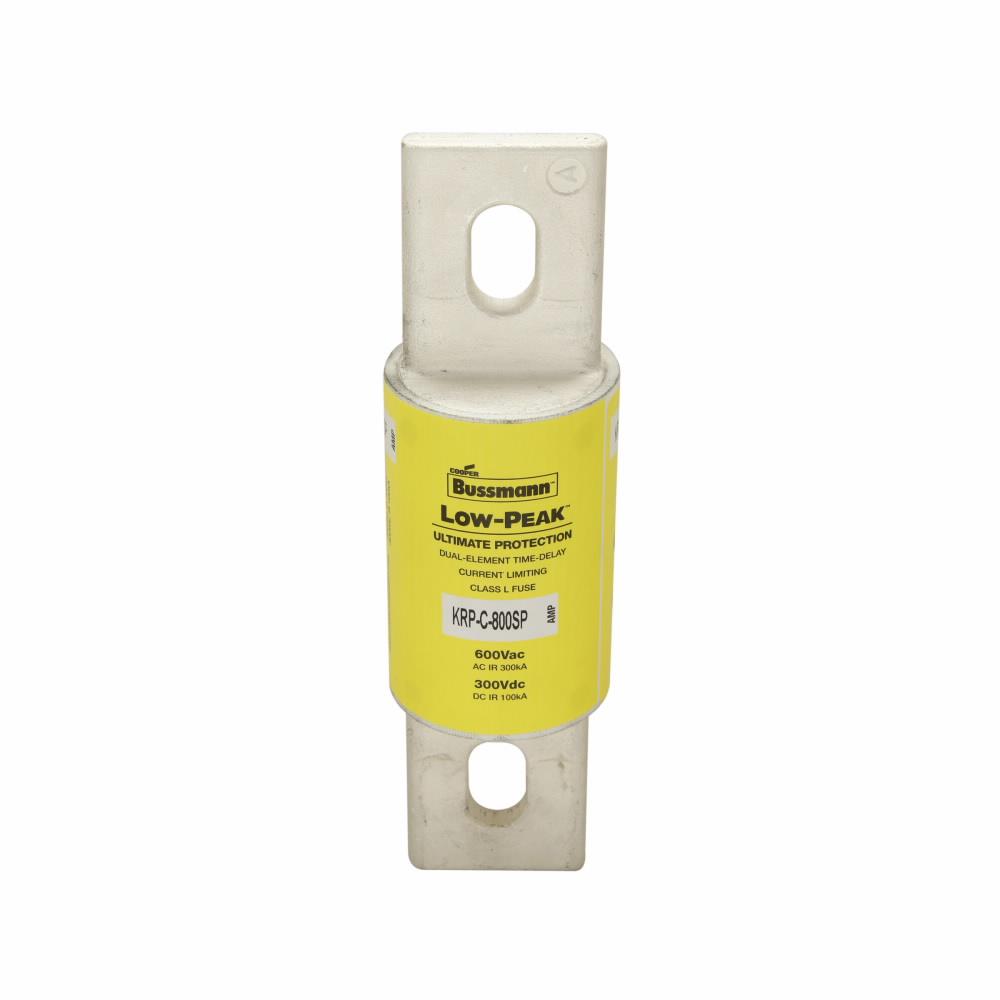

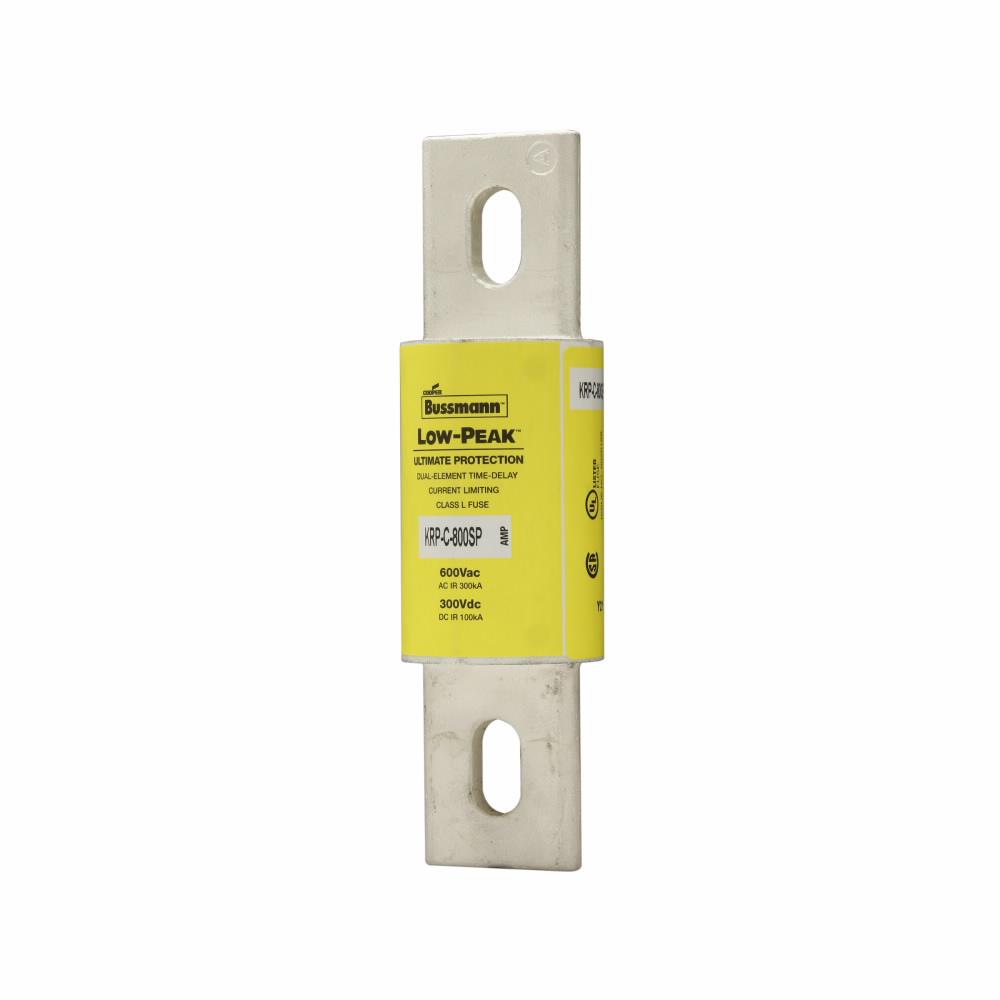

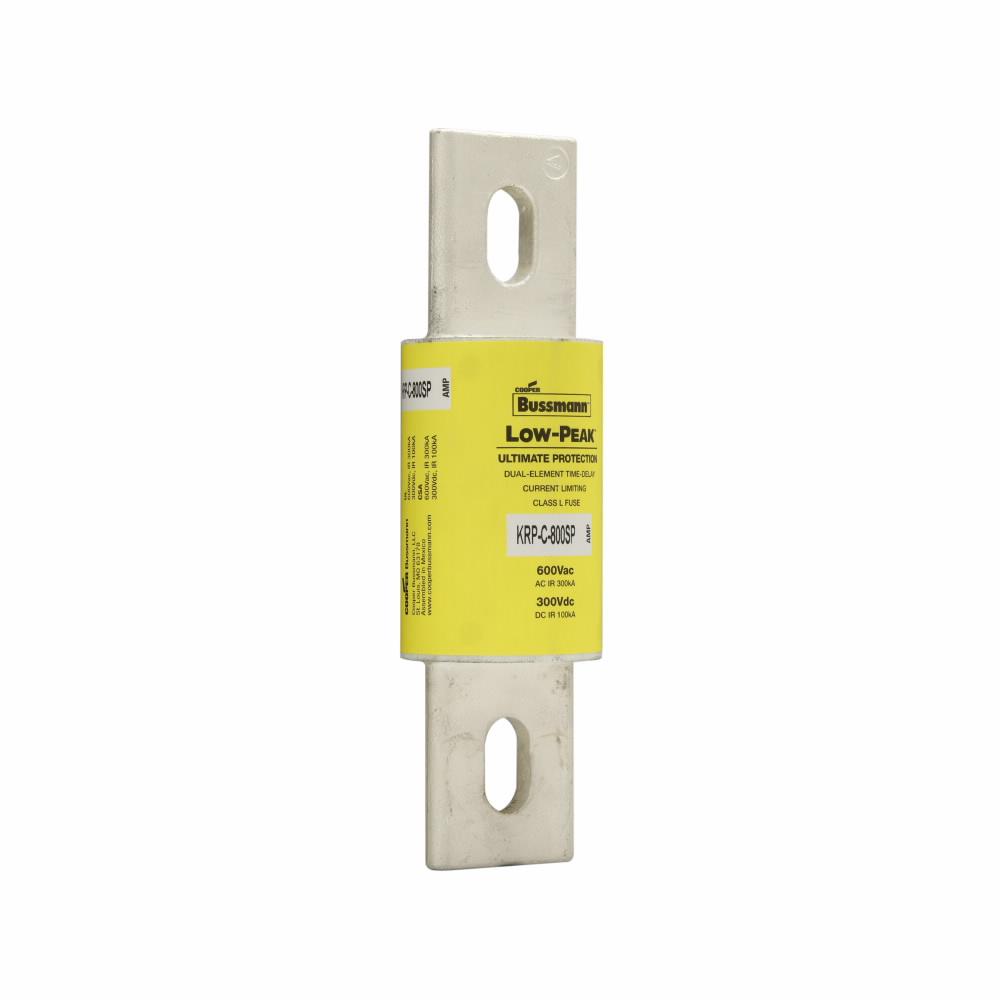

Bussmann Low-Peak™ Fuse, Current Limiting Time Delay, Series: KRP-C, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 800 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: L, 4 s at 500% Response, Bolted Blade End Terminal, Bolted-On Mount, Cartridge Body, Dual Element, Melamine, 2.5 in Dia x 8.63 in L Body Size

• Fast short circuit protection with time delay performance provide ultimate protection
• Consistent 2:1 ampacity ratios for all Low-Peak™ fuses make selective co-ordination easy
• Time delay for close sizing load
• Current limiting action of the fuse generally affords considerable reduction in bus bracing
• All purpose silver linked fuse for both overload and short circuit protection for high capacity systems
• O-ring seals maximize pressure build-up during current limiting action and ensure filter retention
• High grade silica sand filler accelerates response of fuse to short circuits by having quenching effect on the fuse arc
• 99.9% pure silver links provide low watt loss with low operating temperature on normal current levels and minimizes total clearing it fault energy left through
• Silver plated end bell

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6102cca0c624d0e107dff3693704778a3d4af1f70dc4cd69eef50428f7a14fe1.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e3c073e59124bc09d90d847f6b0b83d8a00b926d72ad1c2e4c4e57888ba92dd8.pdf
• VIDEO LINK https://www.youtube.com/watch?v=YMvqUyoETXk
