Sta-Kon® RBD1837
Send Print
  1. pin-int

Sta-Kon® RBD1837

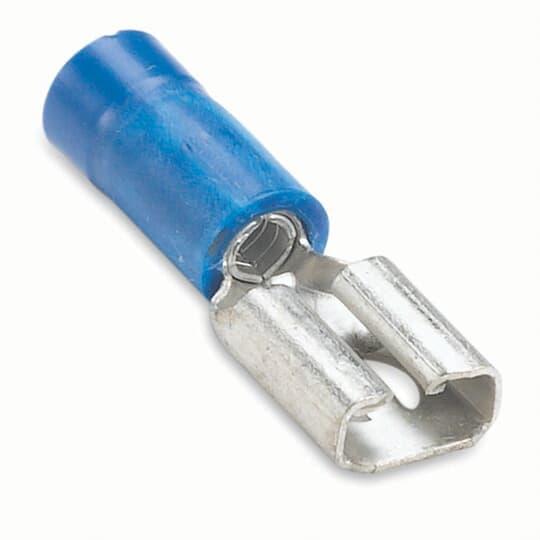

Sta-Kon® RBD1837 Female Disconnect, 16 to 14 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Brass, Blue, Fully Vinyl

  • Manufacturer Name: ABB
  • MPN: RBD1837
  • Brand Name: Sta-Kon®
  • UPC: 786210817392
  • FEPN: RBD1837 TB
  • Min Order Qty: 1
  • Quantity Interval: 1000
  • Inventory Availability loading loading

Sta-Kon® Female Disconnect, 16 to 14 AWG Conductor, 0.187 in W x 0.02 in THK Tab, 600 V, 0.17 in Maximum Insulation, Brass, Blue, TiN Coated, 83 in L x 23 in W, Fully Vinyl

Dimensions       :      83 in L x 23 in W
Finish       :      TiN Coated
Specifications       :      0.17 in Maximum Insulation
Voltage Rating       :      600 V
Conductor Size       :      16 to 14 AWG
Tab Size       :      0.187 in W x 0.02 in THK
Material       :      Brass
Color       :      Blue
Insulated       :      Fully Vinyl
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sta-Kon_14RB-2577_Specification_Sheet.pdf
