Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

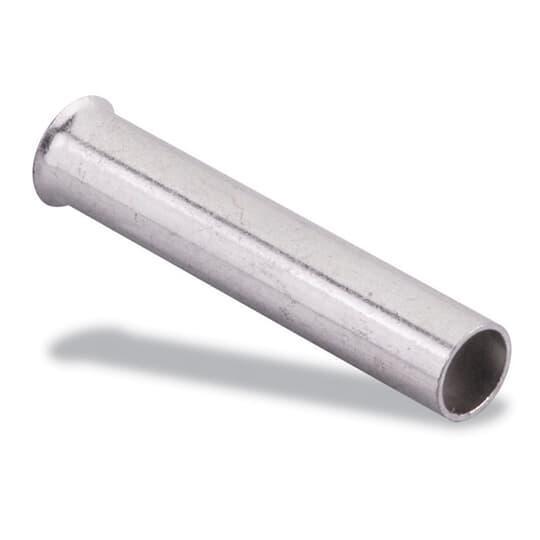

Sta-Kon®, F9015, Ferrule, Non-Insulated, Series: F Series, Stranded Copper Conductor, 12 AWG Conductor, 0.354 in Length, 0.139 in Dia Barrel, 300 V AC, Specifications: 0.087 in ID x 0.008 in THK Pin, 105 deg C, Tin Coated, Metallic
| Barrel Size | : | 0.139 in Dia |
| Finish | : | Tin Coated |
| Series | : | F Series |
| Specifications | : | 0.087 in ID x 0.008 in THK Pin |
| Temperature Rating | : | 105 deg C |
| Type | : | Non-Insulated |
| Voltage Rating | : | 300 V AC |
| Conductor Size | : | 12 AWG |
| Conductor Type | : | Stranded Copper |
| Length | : | 0.354 in |
| Material | : | Copper |
| Color | : | Metallic |
- Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
- T1, T3 and ERG4 recommended tools
Specification Sheet
