Class H(K) modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class H(K) fuse amp range. All blocks are available as snap together 1-pole versions for tool less assembly of multiple poles at point of use or as factory configured 2 and 3-pole versions to meet stocking requirements. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

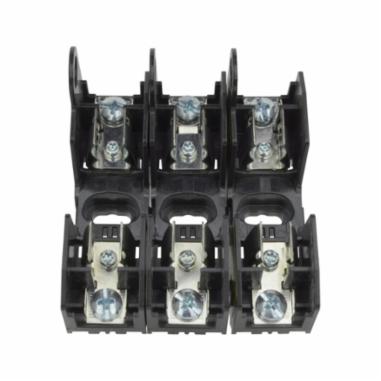

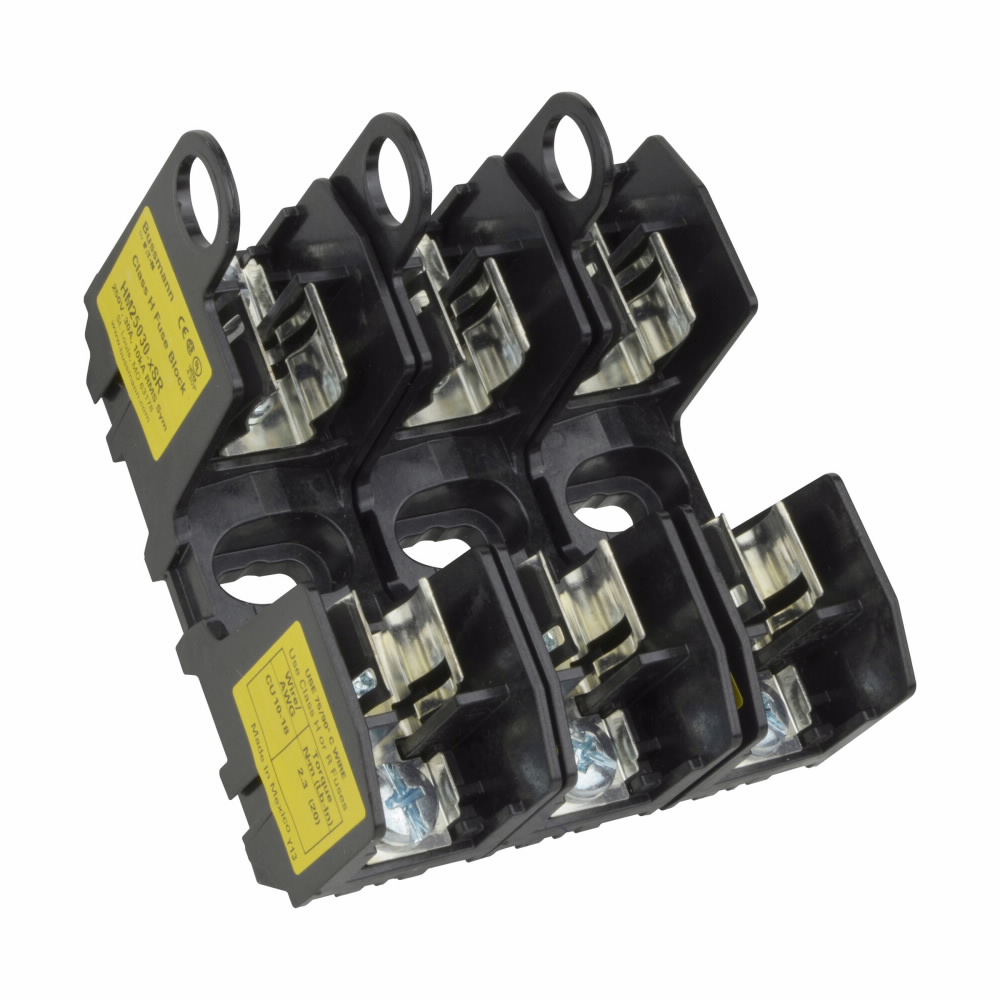

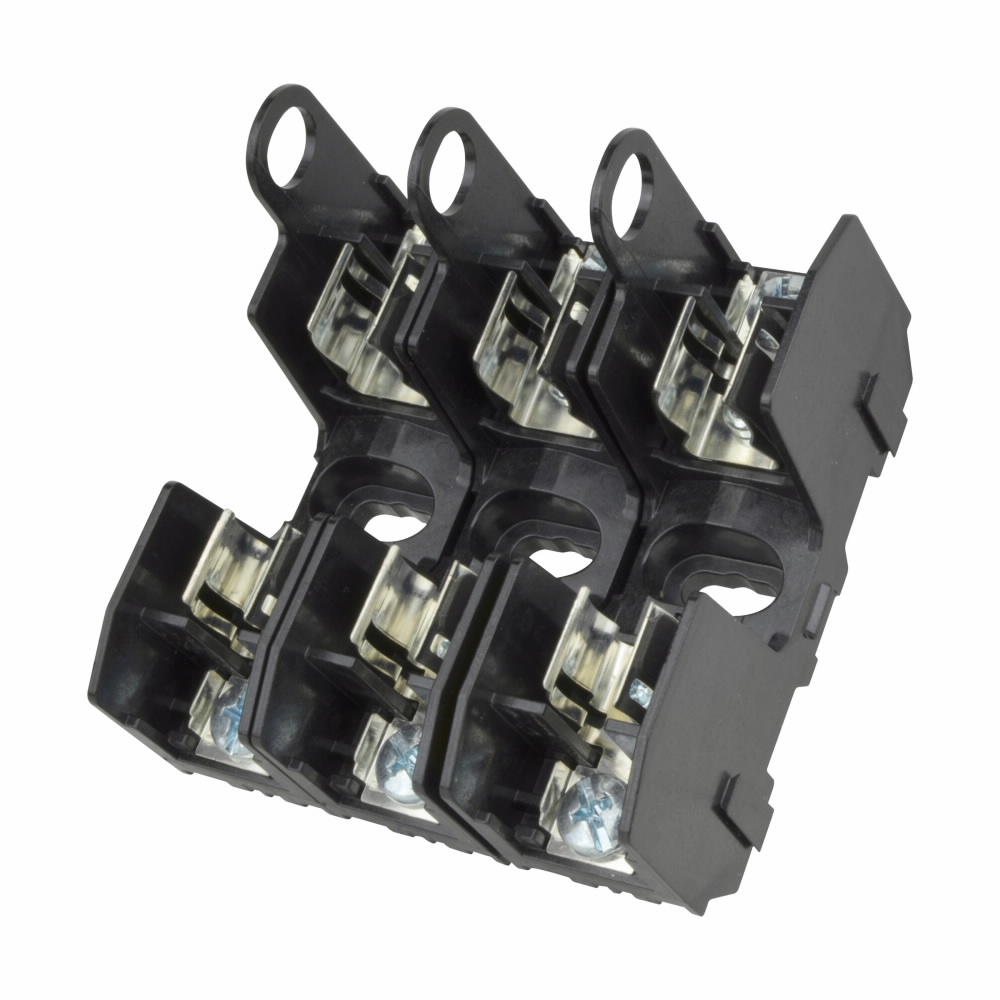

Bussmann Fuse Block, Modular, Series: HM Series, 250 V, 0 to 30 A, 3 Pole, Class: H/K, Fuse Holder Code: H, Phillips® Slot Screw, 18 to 10 AWG Wire, DIN Rail/Panel Mount, 2 in Fuse Length, 0.56 in Fuse Dia, -40 to 120 deg C, For Use With: NON Series Fuse, Thermoplastic, 3.2 in L x 2.9 in W x 1.4 in H
| Connection Type | : | Phillips® Slot Screw |
| Dimensions | : | 3.2 in L x 2.9 in W x 1.4 in H |
| Fuse Diameter | : | 0.56 in |
| Fuse Holder Code | : | H |
| Fuse Length | : | 2 in |
| Material | : | Thermoplastic |
| Mounting Type | : | DIN Rail/Panel |
| Series | : | HM Series |
| Suitable For Use With | : | NON Series Fuse |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | Modular |
| Voltage Rating | : | 250 V |
| Amperage Rating | : | 0 to 30 A |
| Class | : | H/K |
| Wire Size | : | 18 to 10 AWG |
| Number of Poles | : | 3 |
- To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Save panel space with the smallest width dimension on the market
- Easy circuit identification with available universal marker labels for blocks and covers
- 18 to 10 AWG copper wire
