The high quality and built-in flexibility of the Blackburn® AMT connectors reduce the cost of field installations on splices, taps and terminations. Theyre easy and quick to install and provide superior insulation that lasts the life of the connection.

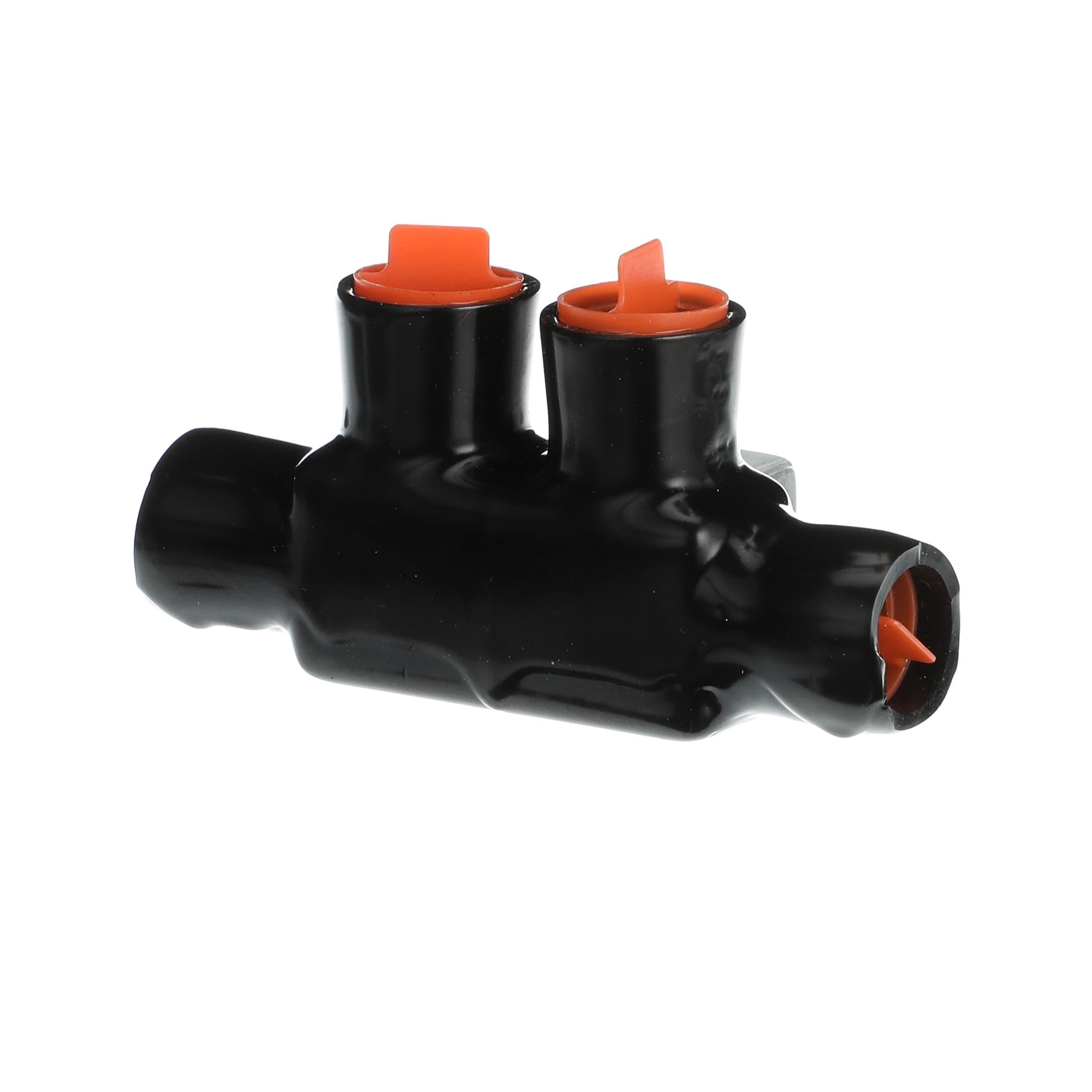

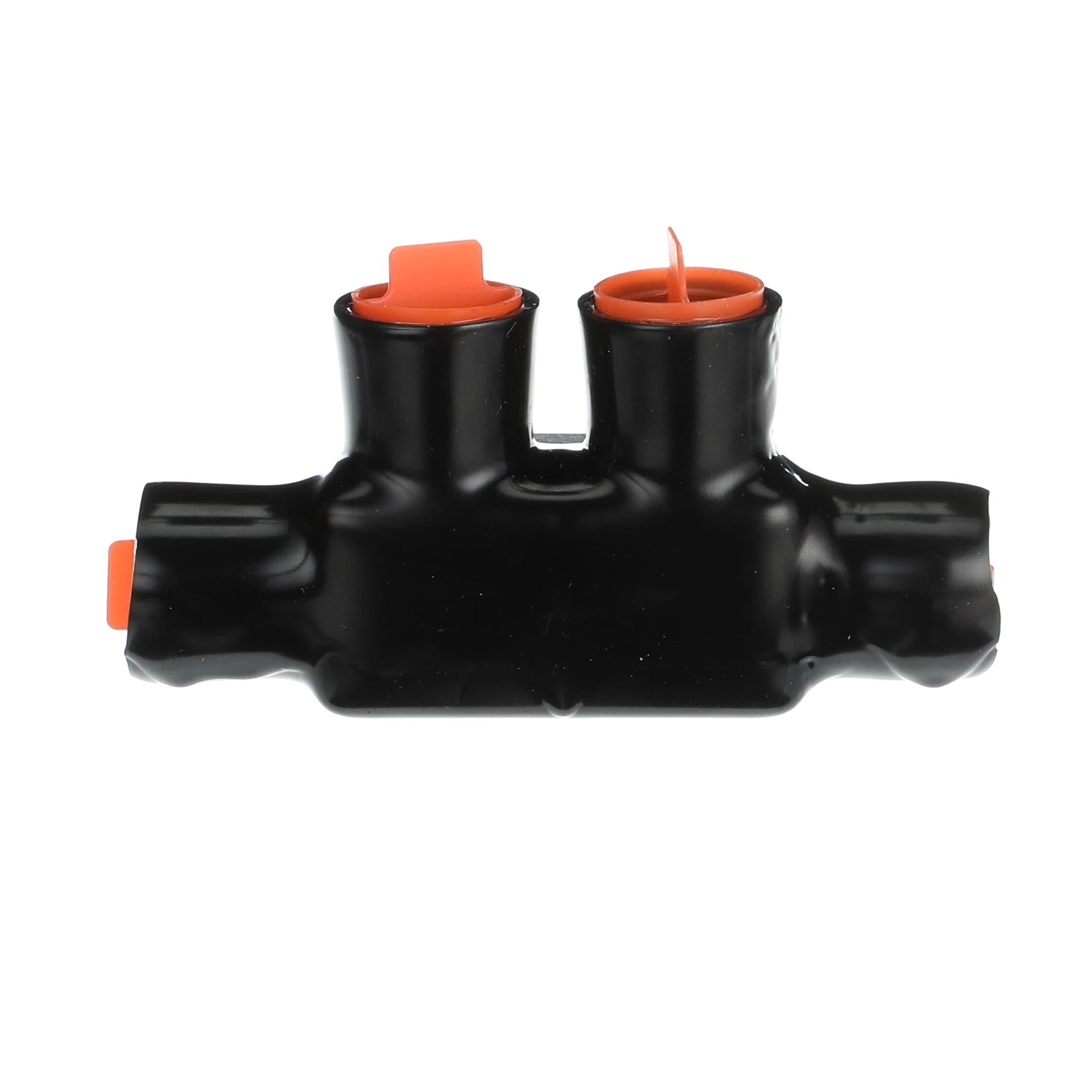

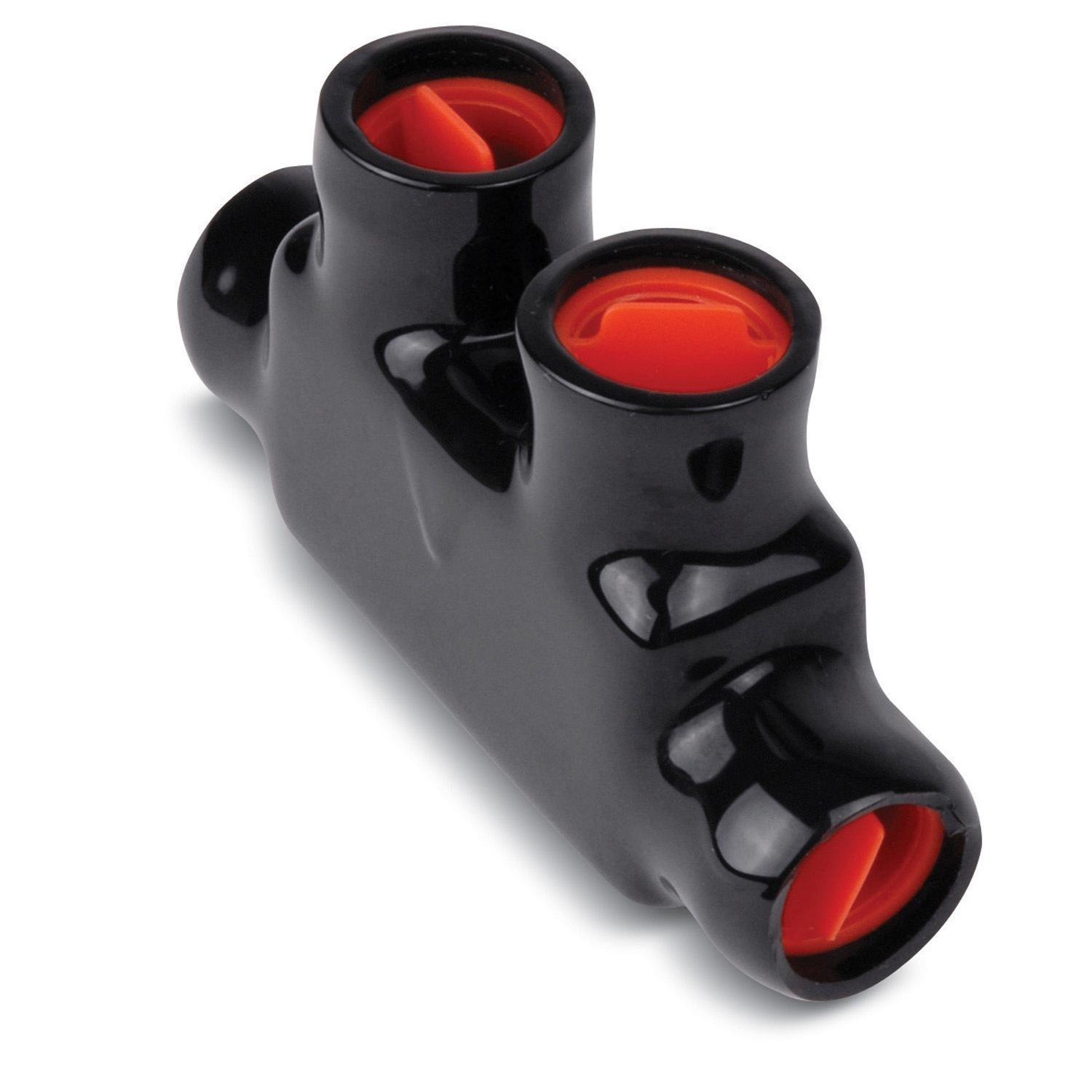

Blackburn® AMTSR250 Multi-Port Connector, Series: AMT, Stranded Conductor, 600 V AC, Ultraviolet Resistance, Specifications: 6 AWG to 250 kcmil Wire, 5/16 in Hex Screw, Black Color, 90 deg C, Aluminum, 4 in L x 1.06 in W x 2 in H Dimensions
| Dimensions | : | 4 in L x 1.06 in W x 2 in H |
| Resistance | : | Ultraviolet |
| Series | : | AMT |
| Specifications | : | 6 AWG to 250 kcmil Wire, 5/16 in Hex Screw, Black Color |
| Temperature Rating | : | 90 deg C |
| Voltage Rating | : | 600 V AC |
| Conductor Type | : | Stranded |
| Material | : | Aluminum |
- PVC insulation eliminates insulation failures and reduces outage costs
- Removable port and screw plugs
- Compact design provides space efficiencies
- The high quality and built-in flexibility of Blackburn® AMT connectors reduce the cost of field installations on splices, taps and terminations
- Easy and quick to install and provide superior insulation that lasts the life of the connection
- Superior connections with lower installation costs
- All cable entry are equipped with an anti-oxidation compound
