Wiring Device-Kellems HBL2311SW
Send Print
  1. pin-int

Wiring Device-Kellems HBL2311SW

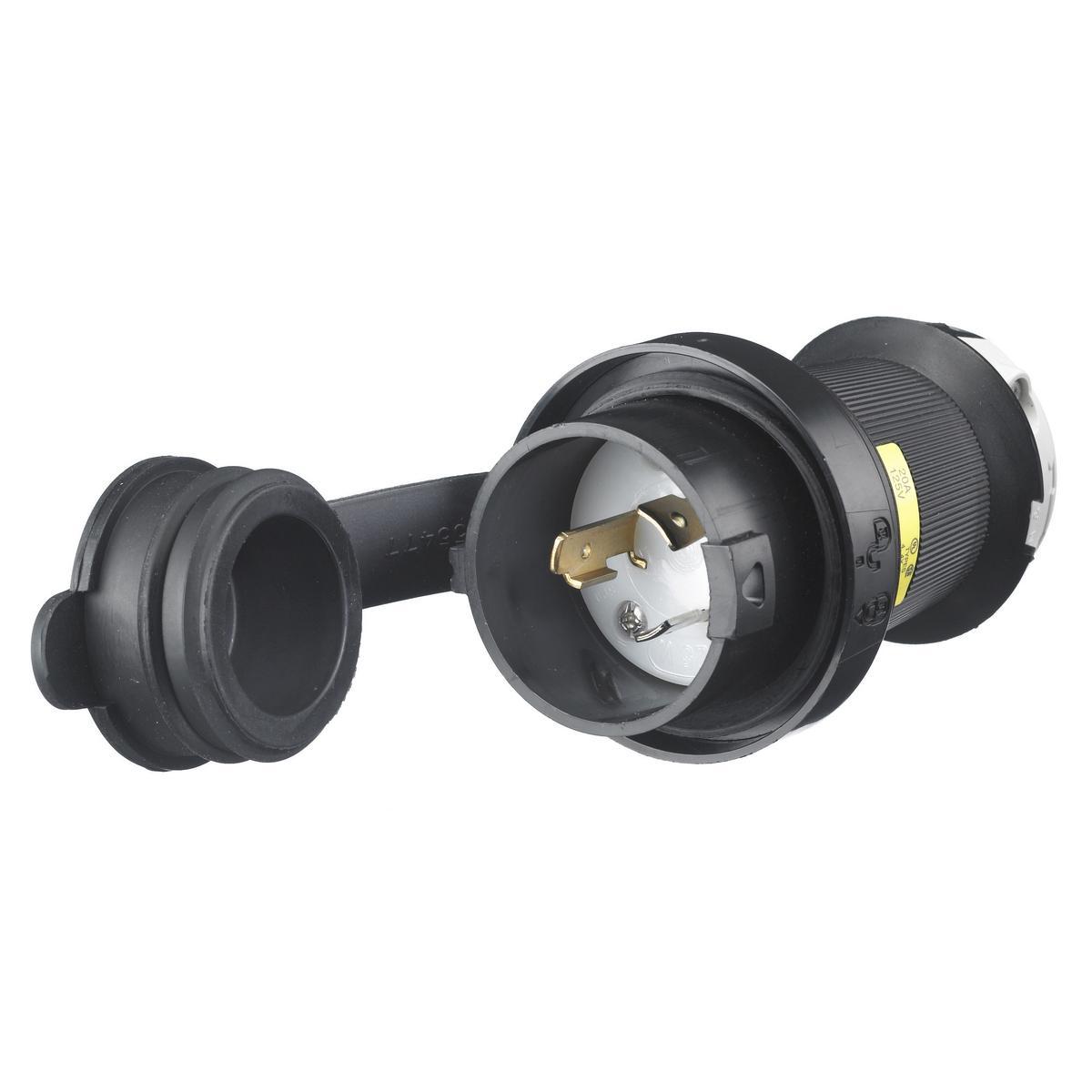

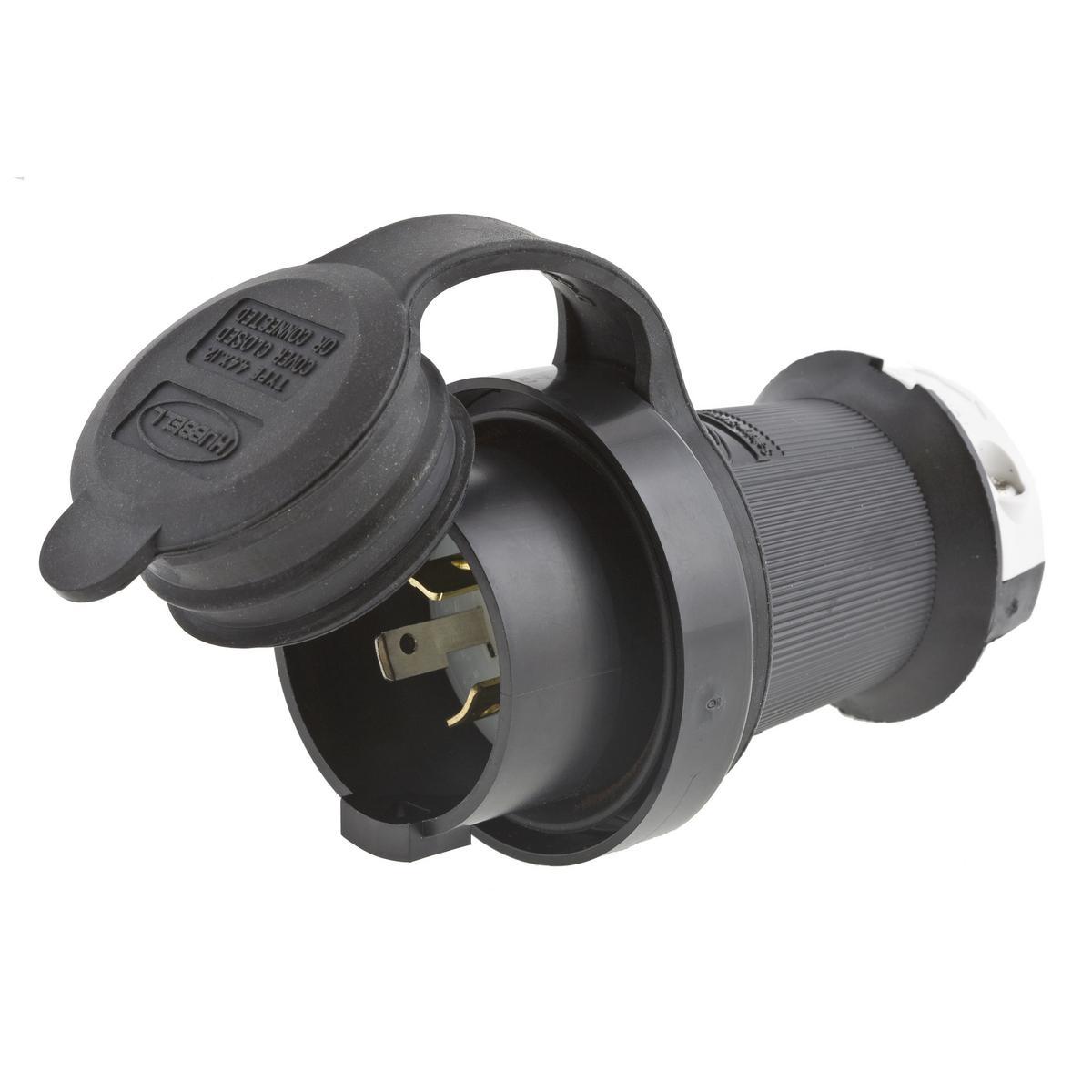

Wiring Device-Kellems HBL2311SW HBL® 1-Phase Grounding Watertight Cord Mount Locking Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Black/White

  • Manufacturer Name: Hubbell
  • MPN: HBL2311SW
  • Brand Name: Wiring Device-Kellems
  • UPC: 783585231020
  • FEPN: HBL2311SW HW
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Wiring Device-Kellems, HBL2311SW, Locking Plug, 1-Phase Grounding Watertight Cord Mount, Series: HBL®, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.77 x 2.77 x 4.4 in Dimensions

Cord Diameter       :      0.36 to 0.93 in
Dimensions       :      2.77 x 2.77 x 4.4 in
Enclosure       :      NEMA 4/4X/12/IP66
Grade       :      Industrial
Horsepower       :      1 hp
Material       :      Composite
NEMA Rating       :      L5-20P
Series       :      HBL®
Temperature Rating       :      -40 to 75 deg C
Terminal Type       :      Screw
Type       :      1-Phase Grounding Watertight Cord Mount
Voltage Rating       :      125 VAC
Amperage Rating       :      20 A
Number of Poles       :      2
Number of Wires       :      3
Color       :      Black/White
  • Impact resistant shroud protects blades against bending and breaking
  • Reduces exposure to arcing when connecting or disconnecting under load
  • Superior cord grip design protects terminations from excess strain
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4d505ba785dd5349f1a8d2389966e7c161662adab74aa41b4f6cee907e86db6e.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5aac995530822d87965a1c212cfb275321b1739ab58b96a9cdeb9a605fc35a9f.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_92d7a635bea054e300775294e5ea408dd05bd6122e6c924937879732ce266324.pdf
  • linkVIDEO LINK https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
