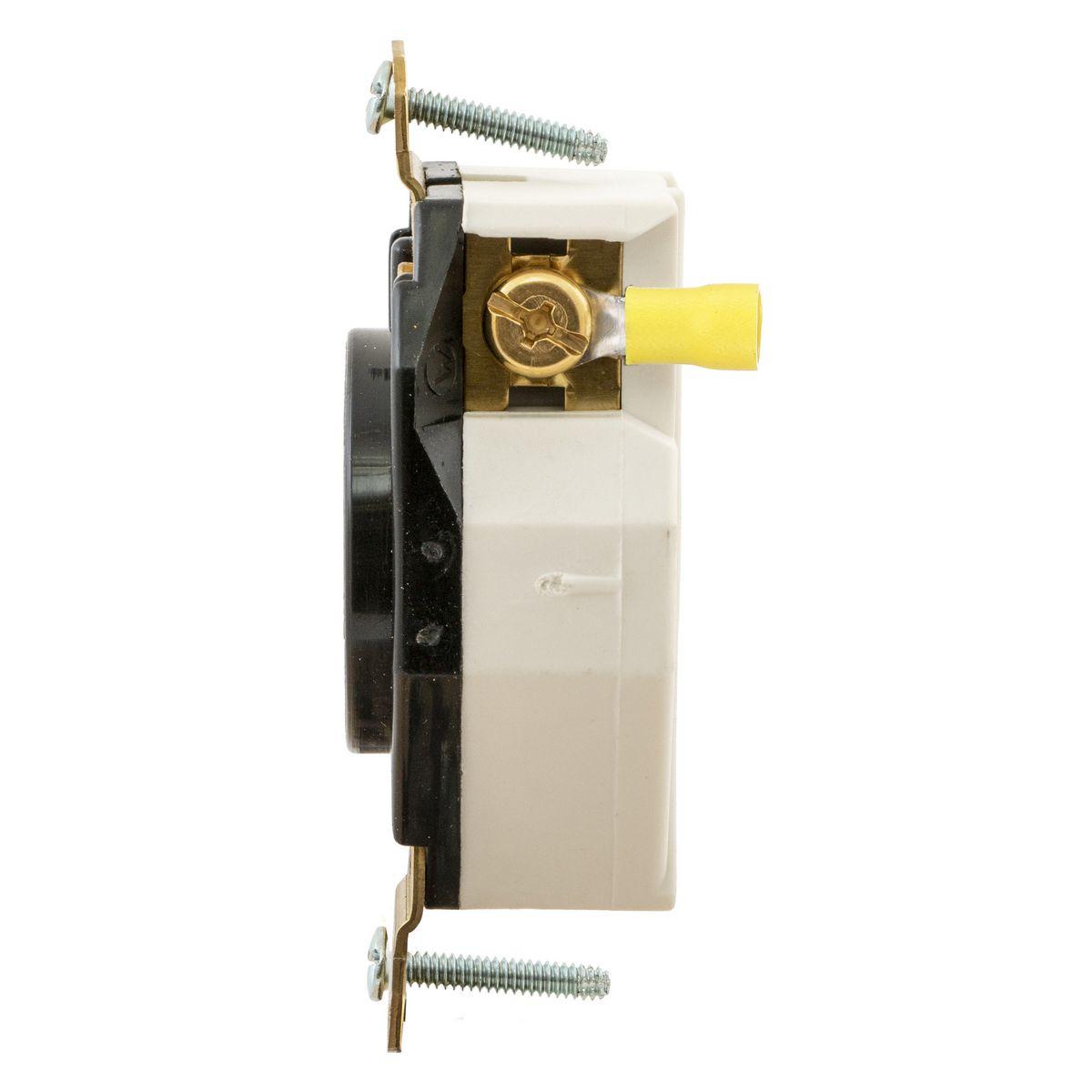

Wiring Device-Kellems HBL2310RT
Wiring Device-Kellems Twist-Lock® HBL2310RT 1-Phase Flush Mount Heavy Duty Grounding Standard Single Screw Mount Locking Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
- Manufacturer Name: Hubbell
- MPN: HBL2310RT
- Brand Name: Wiring Device-Kellems
- UPC: 783585234038
- FEPN: HBL2310RT HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Twist-Lock® Locking Receptacle, 1-Phase Flush Mount Heavy Duty Grounding Standard Single Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Ring Terminal, Nylon, Black, 3.28 x 1.7 x 1.23 in
| Dimensions | : | 3.28 x 1.7 x 1.23 in |
| Enclosure | : | IP20 |
| Grade | : | Industrial |
| Horsepower | : | 1 hp |
| Material | : | Nylon |
| NEMA Rating | : | L5-20R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Ring |
| Type | : | 1-Phase Flush Mount Heavy Duty Grounding Standard Single Screw Mount |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Black |
- High-impact, abuse-resistant nylon face
- Accepts ring terminals
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
