Crouse-Hinds APR6465

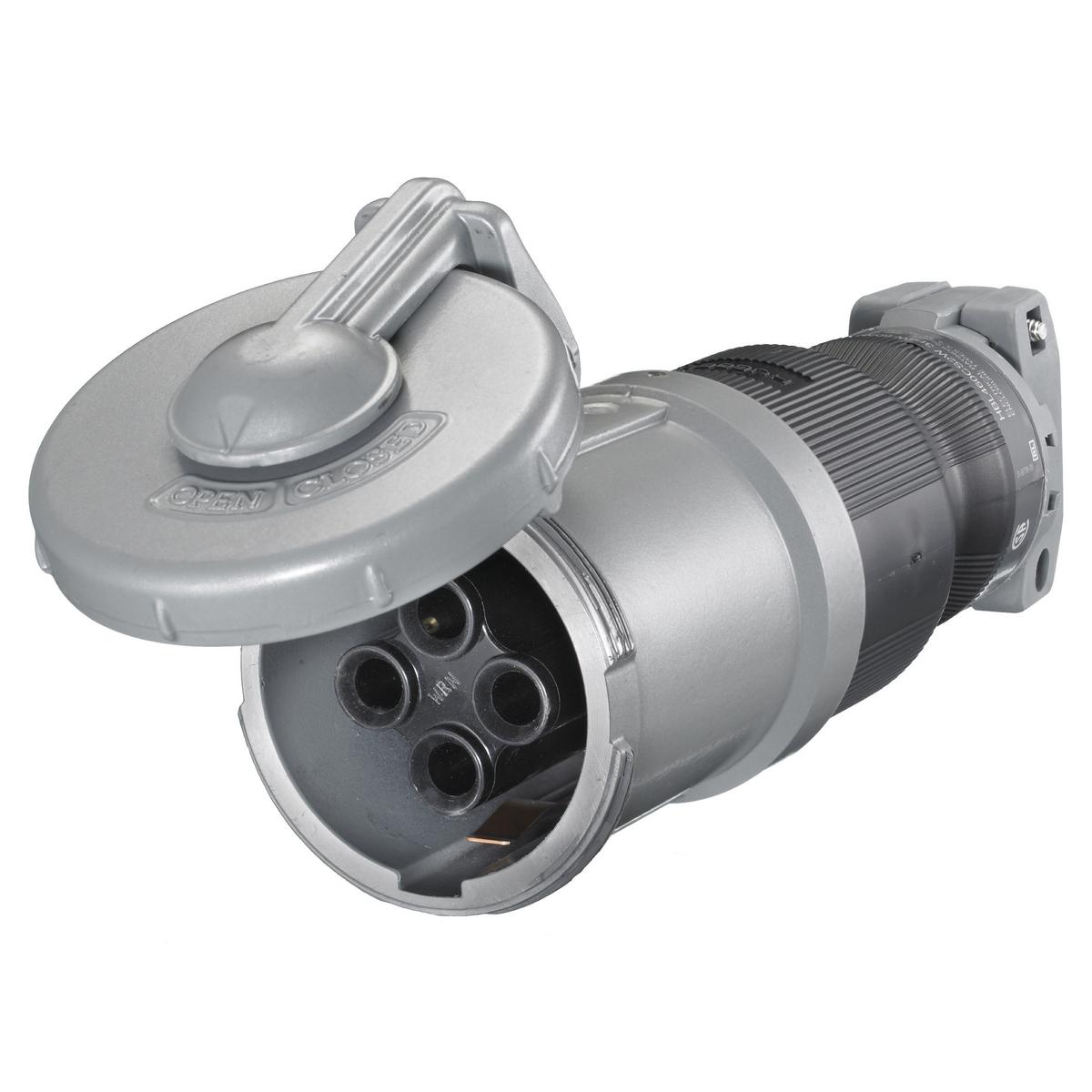

Crouse-Hinds Arktite® 1667425 APR Grounding Style 2 Watertight Pin and Sleeve Mating Connector, 600 VAC/250 VDC, 60 A, 4 Poles, 3 Wires
- Manufacturer Name: Eaton
- MPN: APR6465
- Brand Name: Crouse-Hinds
- UPC: 782274056005
- FEPN: APR6465 CH
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Crouse-Hinds Arktite® Pin and Sleeve Mating Connector, Grounding Style 2 Watertight, Series: APR, 600 VAC/250 VDC, 60 A, 50 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 4 Rating, Crimp/Pressure/Solder Terminal, Copper-Free Aluminum, 8-1/4 in L x 2-15/16 in H Dimensions
| Dimensions | : | 8-1/4 in L x 2-15/16 in H |
| Frequency Rating | : | 50 to 400 Hz |
| Material | : | Copper-Free Aluminum |
| NEMA Rating | : | NEMA 4 |
| Series | : | APR |
| Terminal Type | : | Crimp/Pressure/Solder |
| Type | : | Grounding Style 2 Watertight |
| Voltage Rating | : | 600 VAC/250 VDC |
| Amperage Rating | : | 60 A |
| Number of Poles | : | 4 |
| Number of Wires | : | 3 |
- Extra wide electrical spacing allows for maximum safety
- Insulator materials are the result of intensive testing, selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance
- Designed to withstand rough usage and the effects of adverse environments
- Split pin contact design
- 0.5 to 1.45 in Dia cable
