Wiring Device-Kellems NHC1041
Send Print
  1. pin-int

Wiring Device-Kellems NHC1041

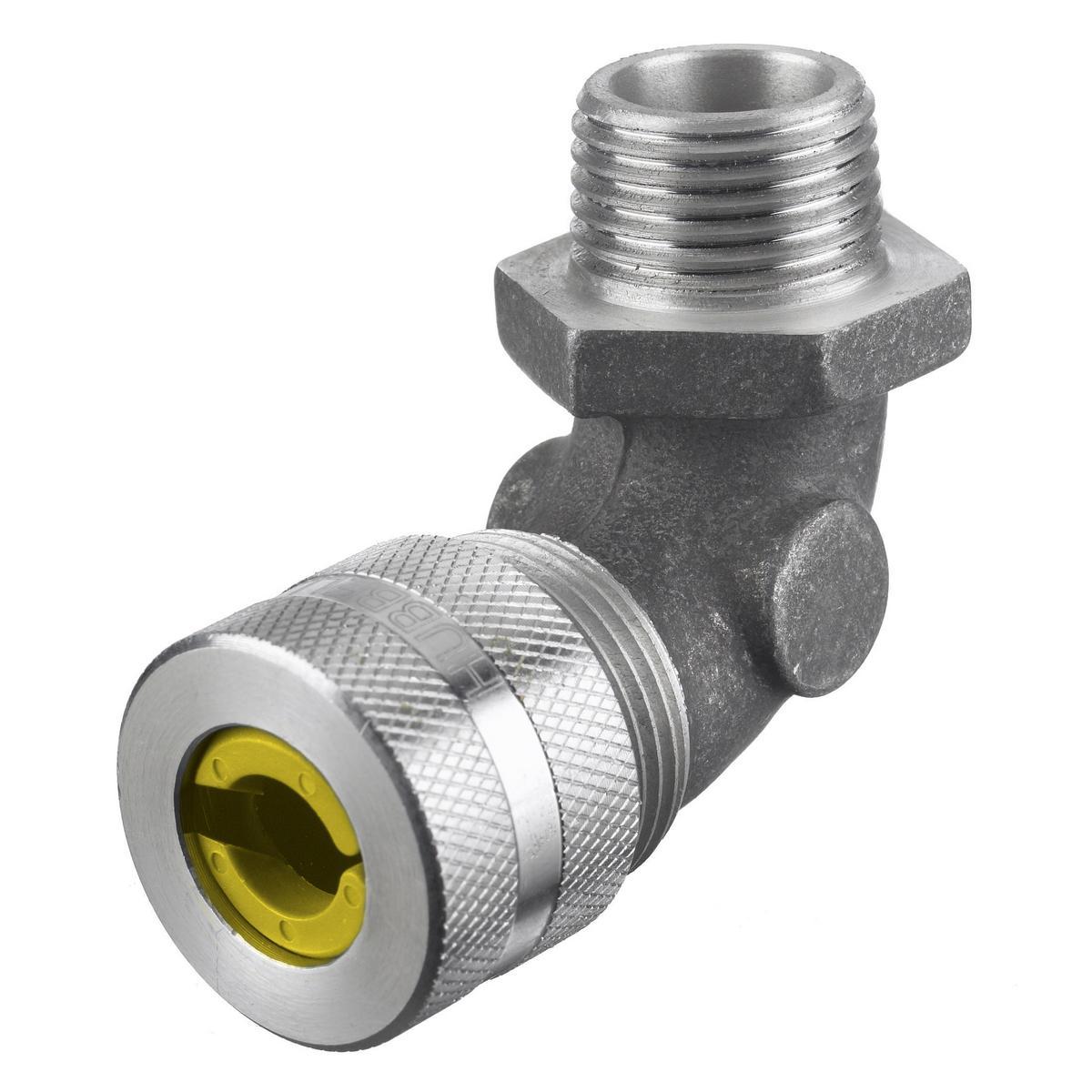

Wiring Device-Kellems Kellems Wire Management NHC1041 90 deg Form 4 Standard Cord Connector, 1 in MNPT Trade, 1 Conductor, 0.63 to 0.75 in Cable Openings, Aluminum, Machined

  • Manufacturer Name: Hubbell
  • MPN: NHC1041
  • Brand Name: Wiring Device-Kellems
  • UPC: 783585201412
  • FEPN: NHC1041 HW
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Wiring Device-Kellems Kellems Wire Management Cord Connector, 90 deg Form 4 Standard, Series: NHC, 1 in MNPT Trade, 1 Conductor, Cable Openings: 0.63 to 0.75 in, Jacketed Cable, MNPT Connection, Aluminum, Machined, Metallic/Yellow, -30 to 225 deg F

Cable Type       :      Jacketed
Color       :      Metallic/Yellow
Connection Type       :      MNPT
Series       :      NHC
Temperature Rating       :      -30 to 225 deg F
Type       :      90 deg Form 4 Standard
Trade Size       :      1 in MNPT
Number of Conductors       :      1
Cable Openings       :      0.63 to 0.75 in
Material       :      Aluminum
Finish       :      Machined
  • One-piece design with machined thread
  • Suitable for use in wet locations when used with a listed nylon washer between box and fitting
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9e3ac3ed4941a0d21c87823e173fe45d3ee6911b0d13538e409e2f03267a88b8.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f4fb7d1f0f9f919697bed3a42dc280c0db8e0a4d8727abc91b52e05f45830520.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device_Kellems_NHC1010_Catalog.pdf
  • linkVIDEO LINK https://youtu.be/6SdOpBP_CJk
