nVent CADDY 12P24SM
Send Print
  1. pin-int

nVent CADDY 12P24SM

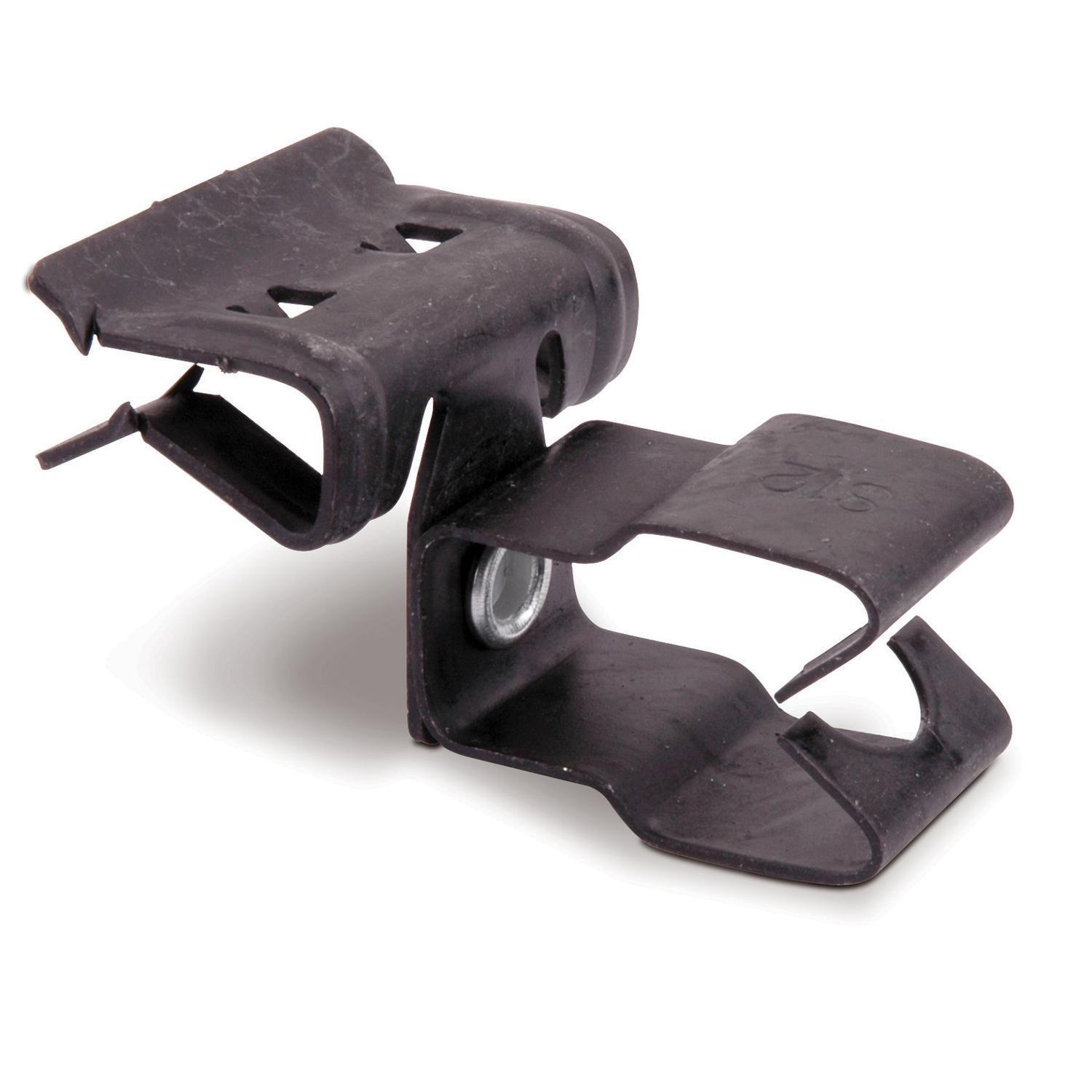

nVent CADDY 12P24SM H-PSM Conduit/Pipe to Flange Clip, 3/4 in, 1/2 in Conduit, 15 lb Ultimate Static Load, 0.866 to 1.181 in OD, Spring Steel

  • Manufacturer Name: nVent
  • MPN: 12P24SM
  • Brand Name: nVent CADDY
  • UPC: 782856112624
  • FEPN: 12P24SM ER
  • Min Order Qty: 1
  • Quantity Interval: 100
  • Inventory Availability loading loading

nVent CADDY Conduit/Pipe to Flange Clip, Series: H-PSM, 3/4 in, 1/2 in Conduit, 15 lb Ultimate Static, 0.866 to 1.181 in Outside Dia, 1/8 to 1/4 in Flange, Side Mount, For Use With: EMT, Rigid, IMT and Aluminum Conduit, Spring Steel, Caddy® Armor

Finish       :      Caddy® Armor
Flange Size       :      1/8 to 1/4 in
Mounting Type       :      Side
Series       :      H-PSM
Suitable For Use With       :      EMT, Rigid, IMT and Aluminum Conduit
Conduit Size       :      3/4 in, 1/2 in
Load Capacity       :      15 lb Ultimate Static
Outside Diameter       :      0.866 to 1.181 in
Material       :      Spring Steel
  • Requires only a hammer to install
  • Will pivot thru 360 deg
  • Available for EMT, rigid and aluminum conduit
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nVent_CADDY_12P24SM_Specification_Sheet.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nVent_CADDY_8P58SM_Installation_Manual.pdf
  • pdfOwners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nVent_CADDY_C58812SM_User_Manual.pdf
  • linkVIDEO LINK https://youtu.be://4nqt2suE8uY
