Wiring Device-Kellems HBL2710SW

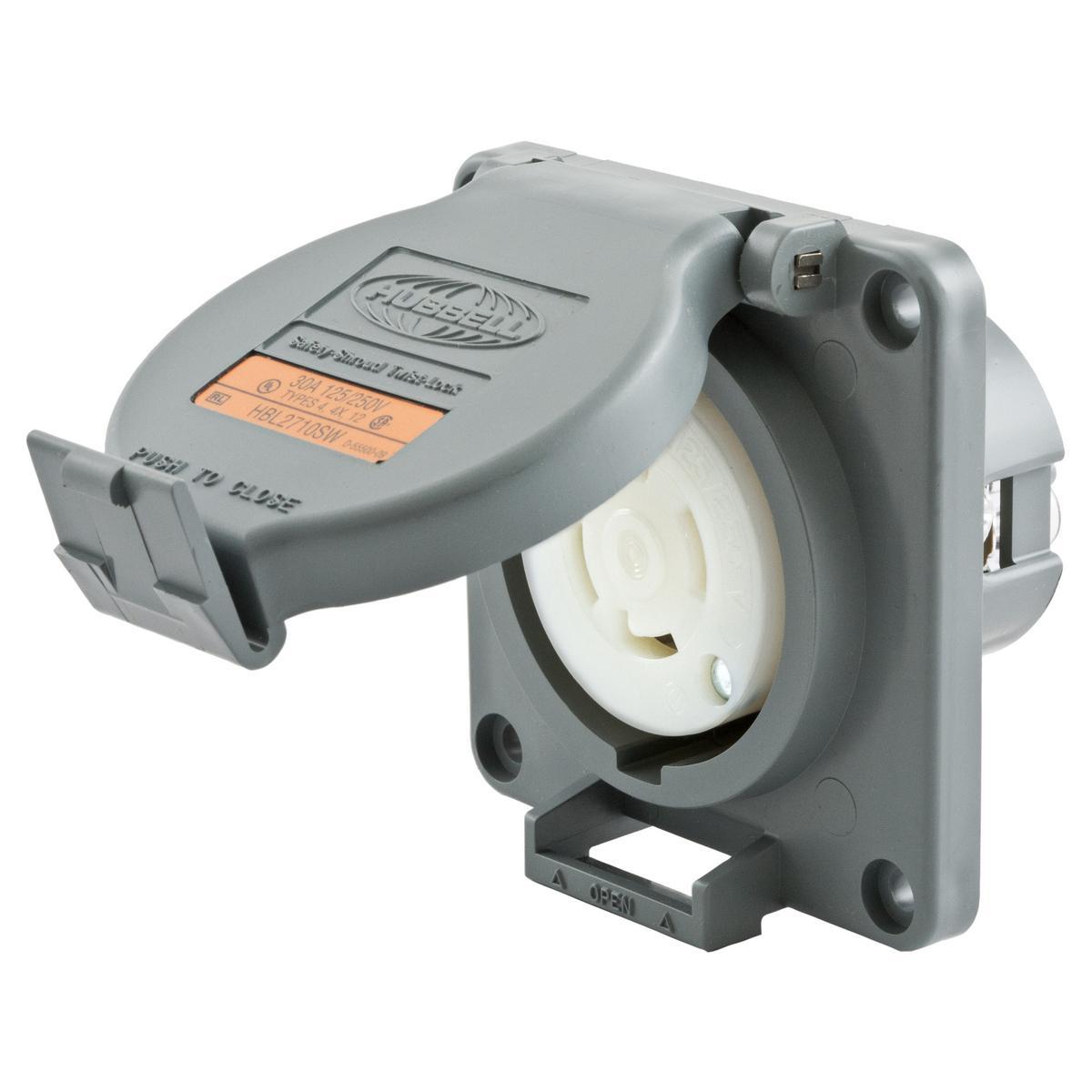

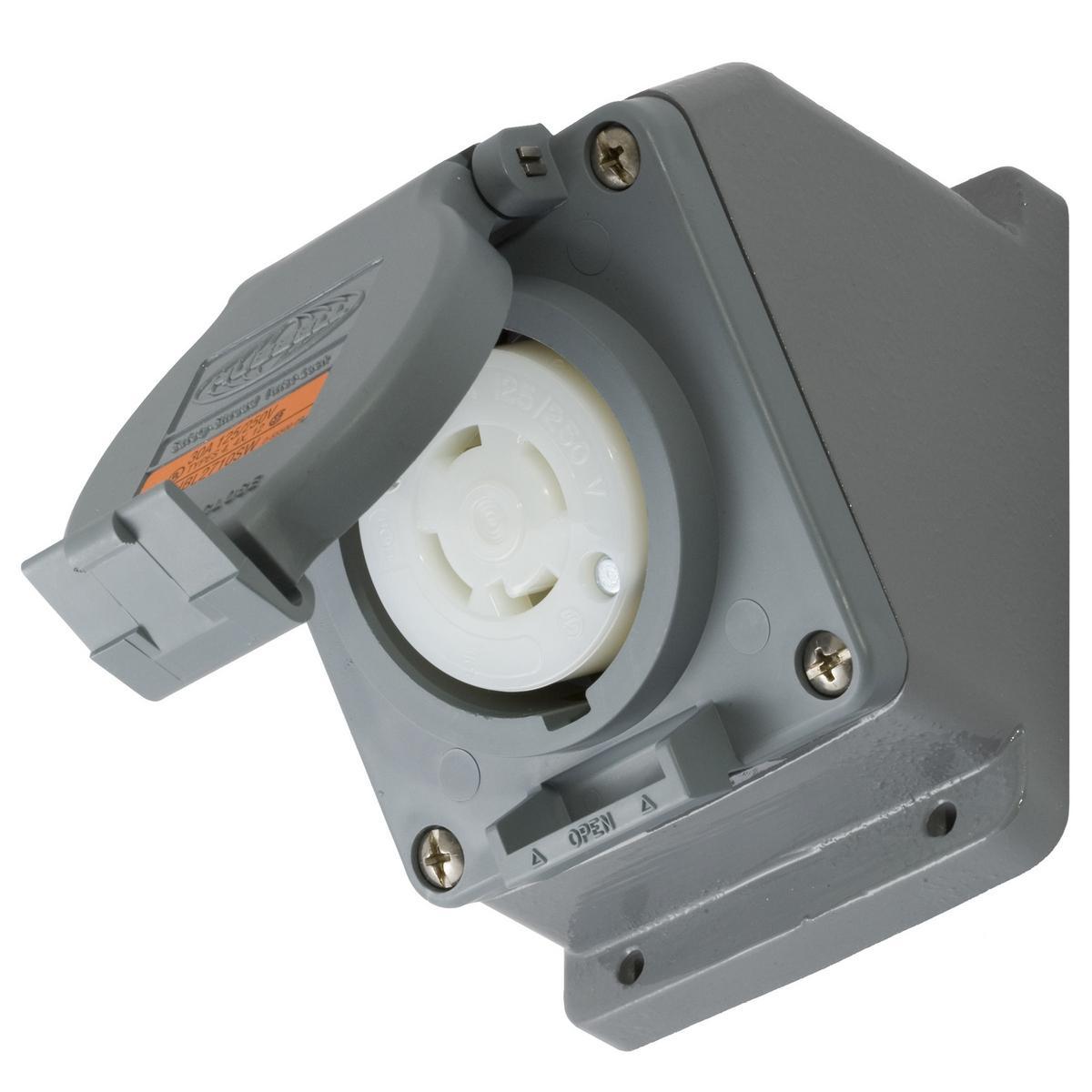

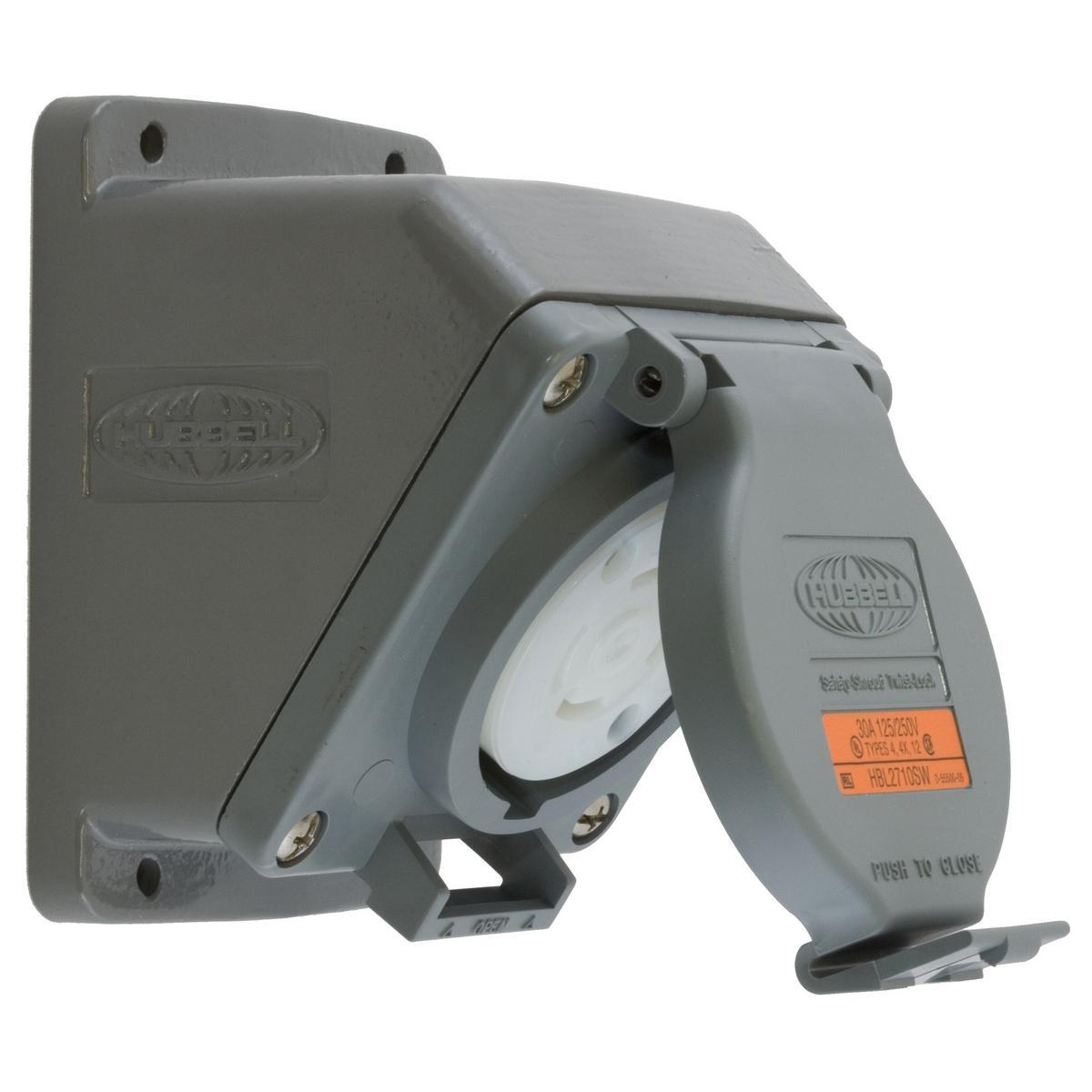

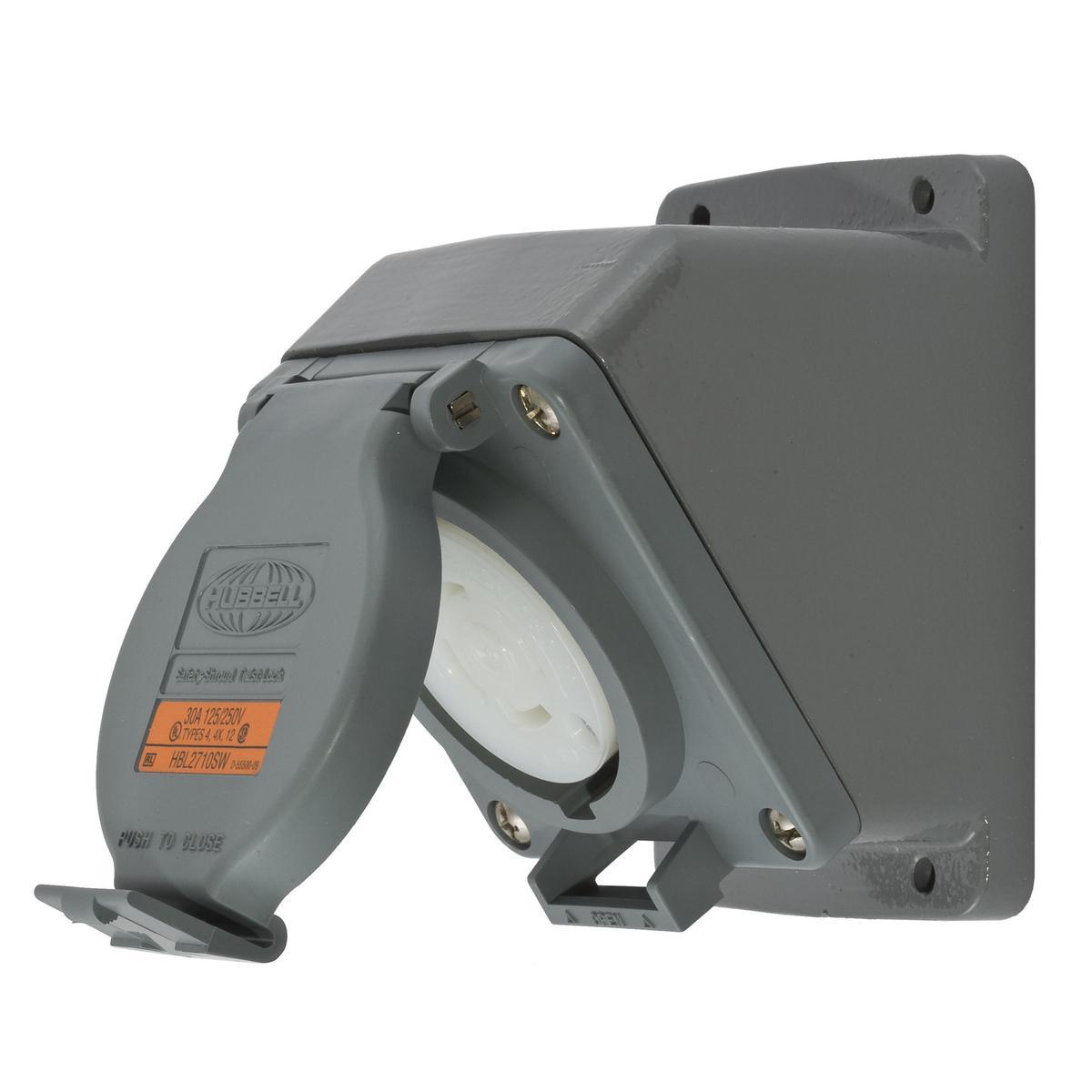

Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2710SW 1-Phase Heavy Duty Single Watertight Screw Mount Locking Receptacle, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Gray/White
- Manufacturer Name: Hubbell
- MPN: HBL2710SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585231747
- FEPN: HBL2710SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Receptacle, 1-Phase Heavy Duty Single Watertight Screw Mount, 125/250 VAC, 30 A, 2 hp, 3 Pole, 4 Wires, L14-30R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Valox™, Gray/White, 3.75 x 3.75 x 2.9 in
| Dimensions | : | 3.75 x 3.75 x 2.9 in |
| Grade | : | Industrial |
| Horsepower | : | 2 hp |
| Material | : | Valox™ |
| NEMA Rating | : | L14-30R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase Heavy Duty Single Watertight Screw Mount |
| Voltage Rating | : | 125/250 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Gray/White |
- Withstands 2000 VAC dielectric voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- #10-32 bronze terminal and ground screw
- 10 AWG terminal accommodation
- Certified for current interrupting at full rated current interrupting
- 302/304 stainless steel multi-drive mounting screw
