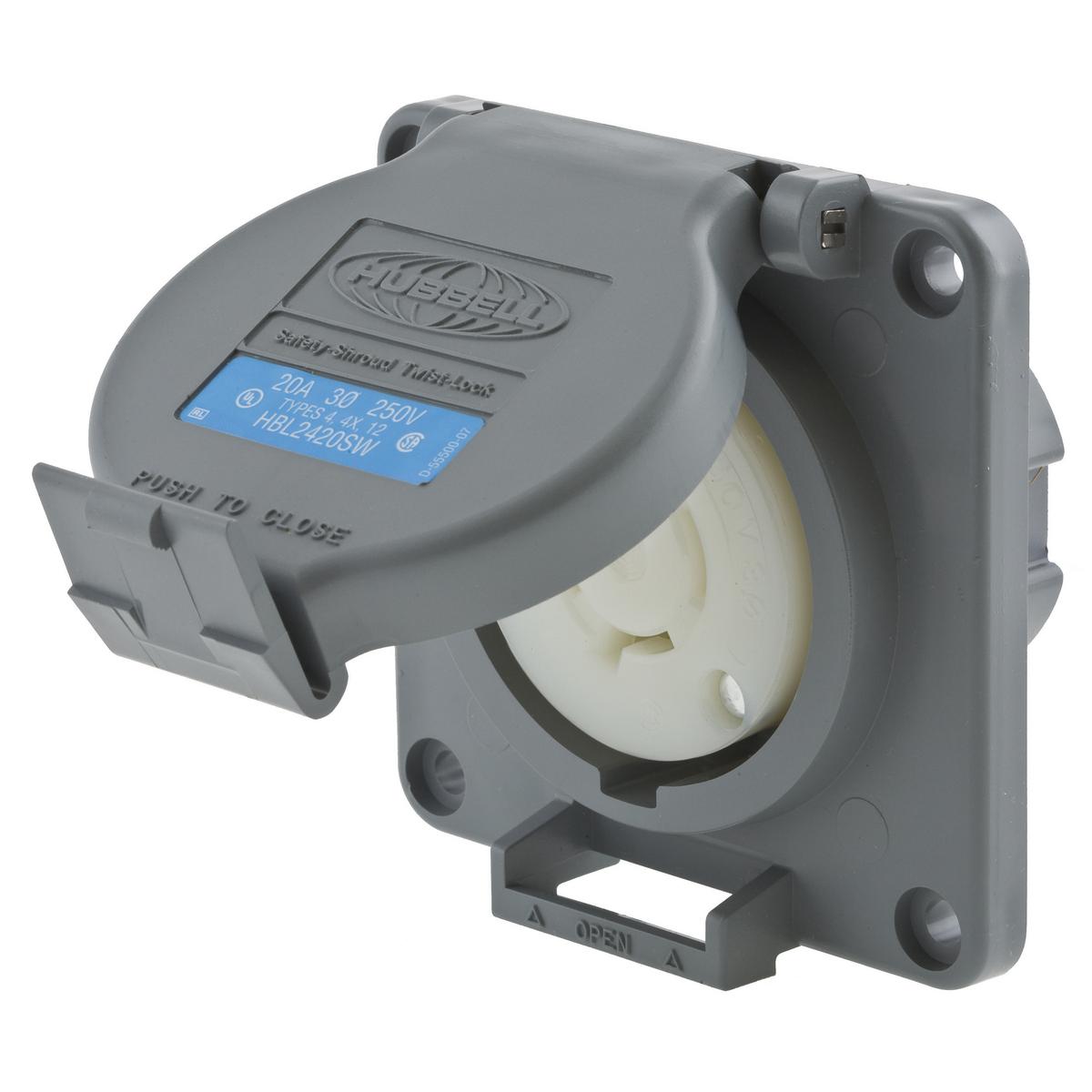

Wiring Device-Kellems HBL2420SW
Wiring Device-Kellems HBL2420SW HBL® 3-Phase Grounding Heavy Duty Watertight Single Screw Mount Locking Receptacle, 250 VAC, 20 A, 3 Poles, 4 Wires, Gray/White
- Manufacturer Name: Hubbell
- MPN: HBL2420SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585231341
- FEPN: HBL2420SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, HBL2420SW, Locking Receptacle, 3-Phase Grounding Heavy Duty Watertight Single Screw Mount, Series: HBL®, 250 VAC, 20 A, 3 hp, 3 Pole, 4 Wires, L15-20R NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 3.75 x 3.75 x 2.9 in Dimensions
| Dimensions | : | 3.75 x 3.75 x 2.9 in |
| Enclosure | : | NEMA 4/4X/12/IP66 |
| Grade | : | Industrial |
| Horsepower | : | 3 hp |
| Material | : | Thermoplastic |
| NEMA Rating | : | L15-20R |
| Series | : | HBL® |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 3-Phase Grounding Heavy Duty Watertight Single Screw Mount |
| Voltage Rating | : | 250 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Gray/White |
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
