Sta-Kon® parallel splices offer solutions for hundreds of OEM, utility and communications applications. These splices provide excellent reliability, long-term performance, and a UL listed connection at a low installed cost. Sta-Kon® parallel splices are resistant to corrosion and preserve the electrical integrity of the wires in single or multiple strands. The new Sta-Kon® parallel splices also feature an intelligent constructable part number for quick identify cation of the wire range and pack quantity.

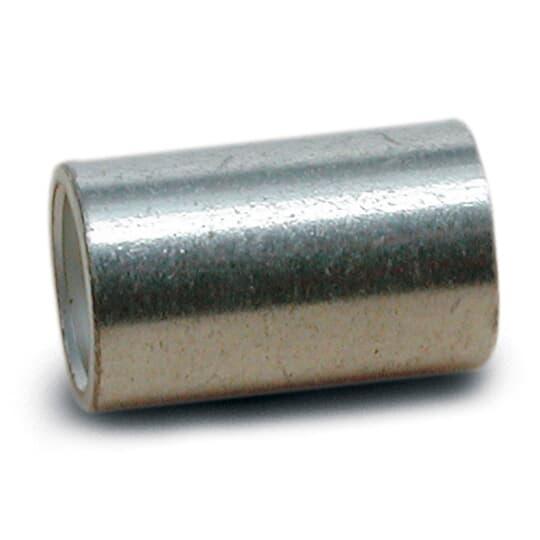

Sta-Kon® Splice Connector, Non-Insulated Parallel, Series: C Series, 12 to 10 AWG Conductor, 0.22 in OD Barrel, 0.38 in Length, 5/16 in Wire Strip Length, 600 V AC, 150 deg C, Copper, Metallic, Tin Plated, 0.17 in ID Dimensions
| Color | : | Metallic |
| Dimensions | : | 0.17 in ID |
| Finish | : | Tin Plated |
| Series | : | C Series |
| Temperature Rating | : | 150 deg C |
| Type | : | Non-Insulated Parallel |
| Voltage Rating | : | 600 V AC |
| Wire Strip Length | : | 5/16 in |
| Conductor Size | : | 12 to 10 AWG |
| Barrel Outer Diameter | : | 0.22 in |
| Length | : | 0.38 in |
| Material | : | Copper |
- Resistant to corrosion and preserve the electrical integrity of the wires in single or multiple strands
- Feature an intelligent constructible part number for quick identification of the wire range
- Application tool ERG4002, ERG4005, WT111M, WT112M, WT2000
- 5180 to 13100 kcmil circular mil range
