Bussmann offers an extensive line of Supplemental and Midget Fuses to meet your circuit protection needs. Supporting this offering is an equally broad offering of Compact Fuseholders, blocks, terminal blocks and disconnects.

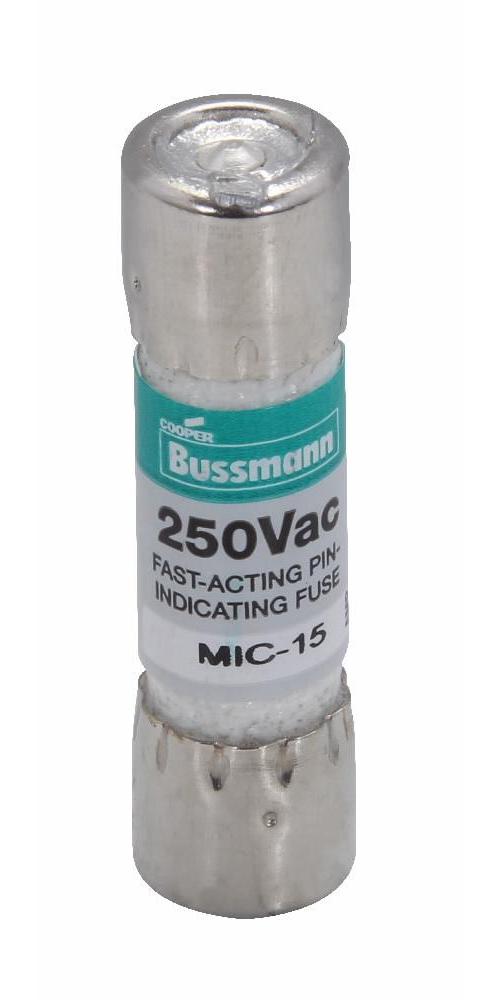

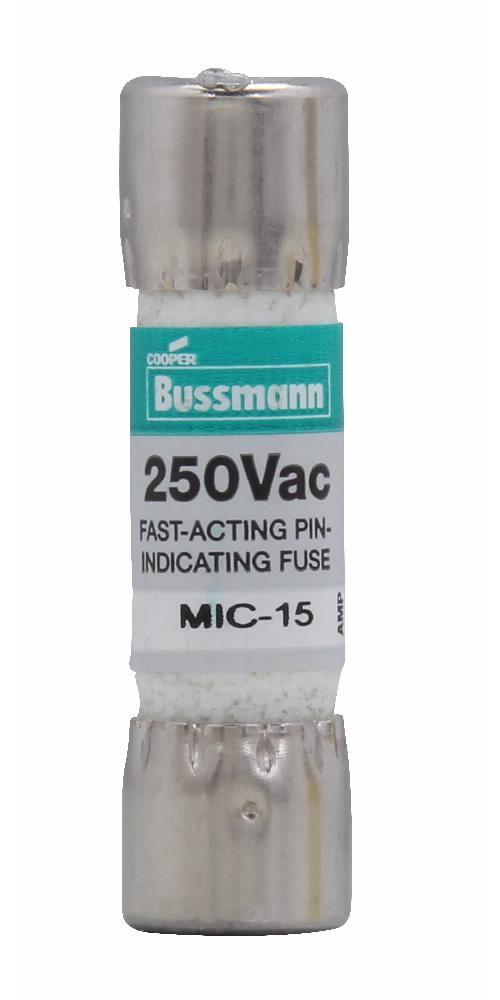

Bussmann Midget Fuse, Fast Acting, Series: MIC, Indicating/Non-Indicating: Indicating, 15 A, 250 VAC, 750 A Interrupt, Class: Supplemental, Ferrule Terminal, Holder Mount, Cartridge Body Type, Bronze/Fiberglass, Green, 13/32 in Dia x 1-1/2 in L Body Size
| Body Size | : | 13/32 in Dia x 1-1/2 in L |
| Color | : | Green |
| Indicating/Non-Indicating | : | Indicating |
| Material | : | Bronze/Fiberglass |
| Mounting Type | : | Holder |
| Series | : | MIC |
| Terminal Type | : | Ferrule |
| Type | : | Fast Acting |
| Amperage Rating | : | 15 A |
| Voltage Rating | : | 250 VAC |
| Interrupt Rating | : | 750 A |
| Class | : | Supplemental |
| Body Type | : | Cartridge |
- Color coded by maximum voltage rating
- Pin indication for visual indication of open fuse condition
- Silver plated pin for positive, electrical signal activation
- Nickel plated brass end caps
- Power electronic circuits in which fuse opening must be quickly apparent
