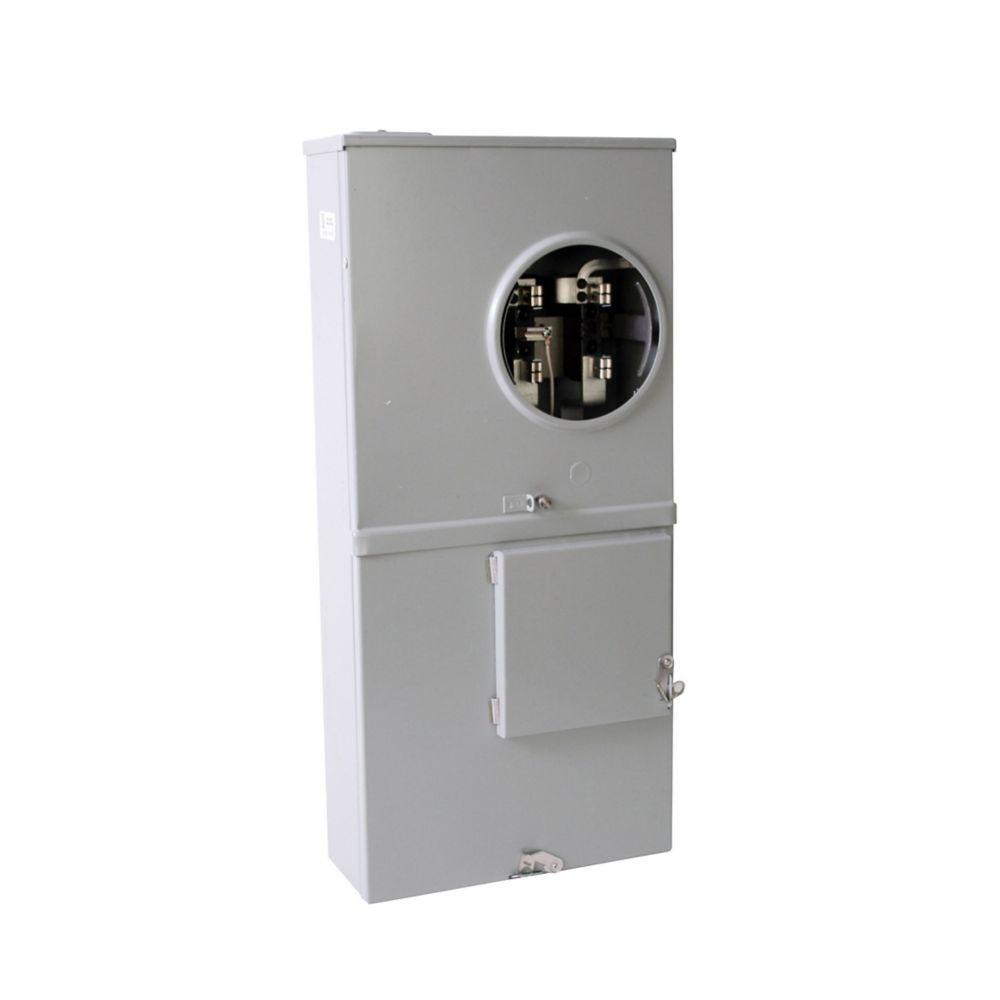

EATON CHMMB200BTS
EATON CHMMB200BTS Type CH 1-Socket 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC Meter Main Breaker, 120/240 VAC, 200 A, 1 Phase , NEMA 3R Enclosure
- Manufacturer Name: Eaton
- MPN: CHMMB200BTS
- Brand Name: EATON
- UPC: 782113682020
- FEPN: CHMMB200BTS EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
EATON's residential meter breakers are service entrance equipment systems that consist of a single meter socket and load center (circuit breaker distribution section) or meter socket and main breaker combined in one enclosure.
EATON Meter Main Breaker, Type CH 1-Socket 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC, Series: CHMM, 120/240 VAC, 200 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, 5 Jaws, Top Endwall, 3/4 in Hub, Ringless Cover, Surface Mount, NEMA 3R, 4.93 in L x 13 in W x 28.37 in H
| Cover Type | : | Ringless |
| Dimensions | : | 4.93 in L x 13 in W x 28.37 in H |
| Feed Type | : | Bottom/Overhead/Top/Underground |
| Hub Size | : | 3/4 in |
| Hub Type | : | Top Endwall |
| Mounting Type | : | Surface |
| Number of Jaws | : | 5 |
| Series | : | CHMM |
| Type | : | Type CH 1-Socket 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | 200 A |
| Phase | : | 1 |
| Enclosure Type | : | NEMA 3R |
- Larger lay-in lugs and 3 in knockouts for ease of installation
- Factory installed neutral assemblies
- Hub provisions on top endwall
- Padlockable device covers provide an additional measure of security and help prevent tampering
- Without distribution section
