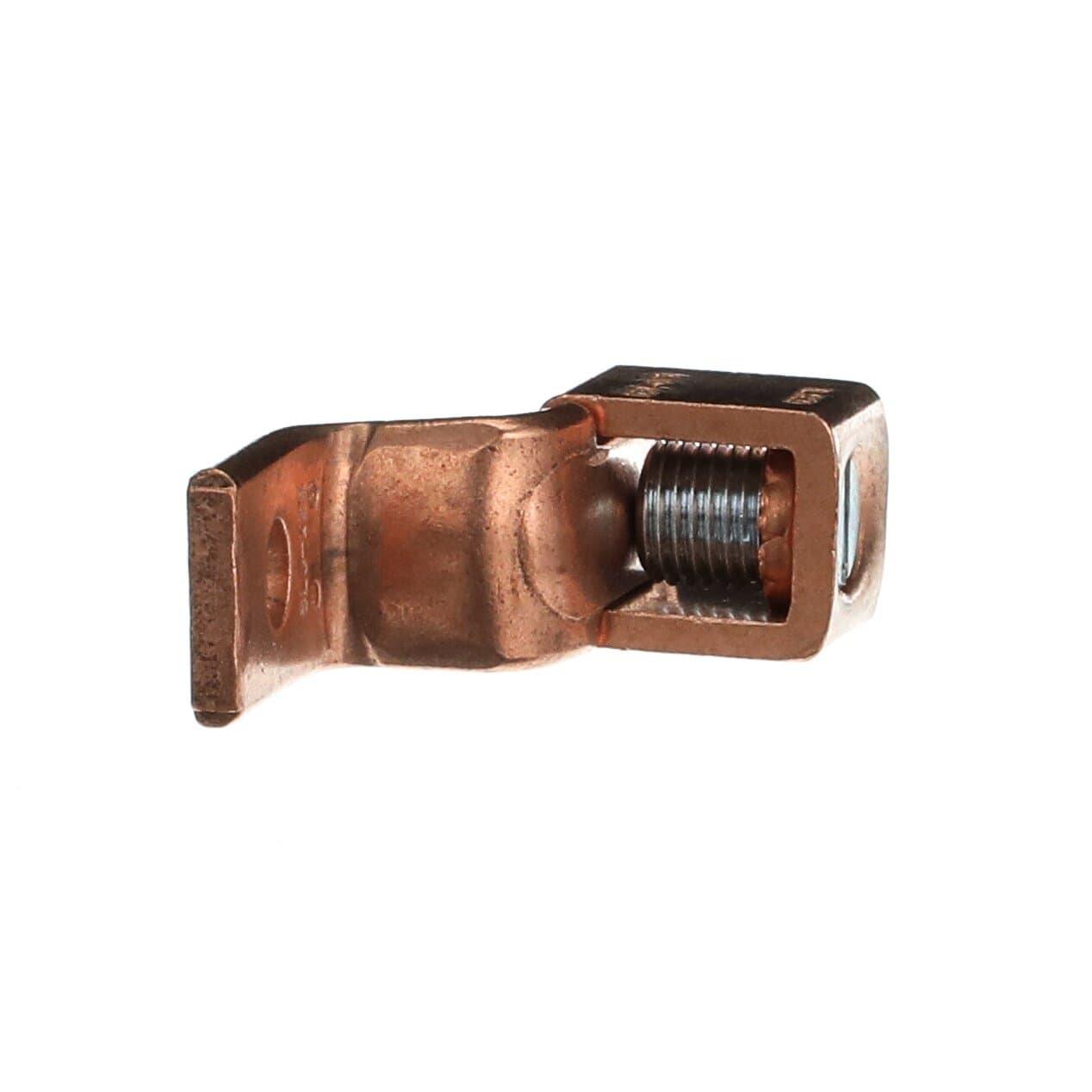

Blackburn® BTC1102
Blackburn® BTC1102 Type BTC Mechanical Connector, 2 to 1/0 AWG Stranded Copper Conductor, 17/64 in Stud, 1 Bolt Holes, Copper
- Manufacturer Name: ABB
- MPN: BTC1102
- Brand Name: Blackburn®
- UPC: 783786611331
- FEPN: BTC1102 TB
- Min Order Qty: 1
- Quantity Interval: 10
-
Inventory Availability
-
Retail Price:
Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.
Blackburn® BTC1102 Mechanical Connector, Type BTC, Stranded Copper Conductor, 2 to 1/0 AWG Conductor, 17/64 in Stud, 1 Bolt Holes, 5/8 in W x 1/8 in THK Tongue, Offset Tongue, Specifications: 1-Conductor, Copper, 1-25/32 in L x 5/8 in W x 1-13/32 in H Dimensions
| Dimensions | : | 1-25/32 in L x 5/8 in W x 1-13/32 in H |
| Specifications | : | 1-Conductor |
| Tongue Size | : | 5/8 in W x 1/8 in THK |
| Tongue Type | : | Offset |
| Type | : | Type BTC |
| Conductor Size | : | 2 to 1/0 AWG |
| Conductor Type | : | Stranded Copper |
| Stud Size | : | 17/64 in |
| Number of Bolt Holes | : | 1 |
| Material | : | Copper |
- Uniquely designed pressure bar and notched v-bottom collar provide vise-like grip between conductor and terminal
- Made of electrolytic seamless copper with steel screw
- 1 stud of 17/64 in
