The 30.5 mm pushbutton line features a die-cast zinc construction with chrome plated housing and mounting nut. The same durable construction is also available with the corrosive-resistant E34 line of pushbuttons.

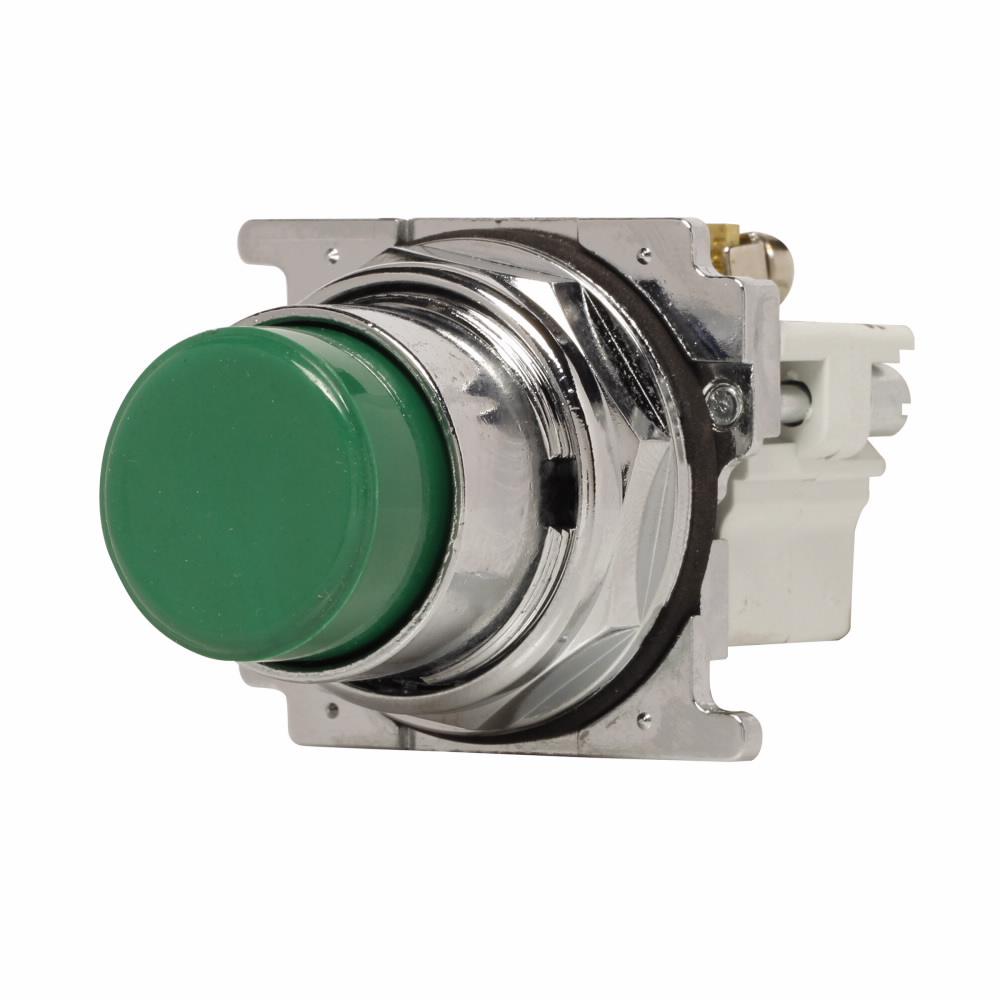

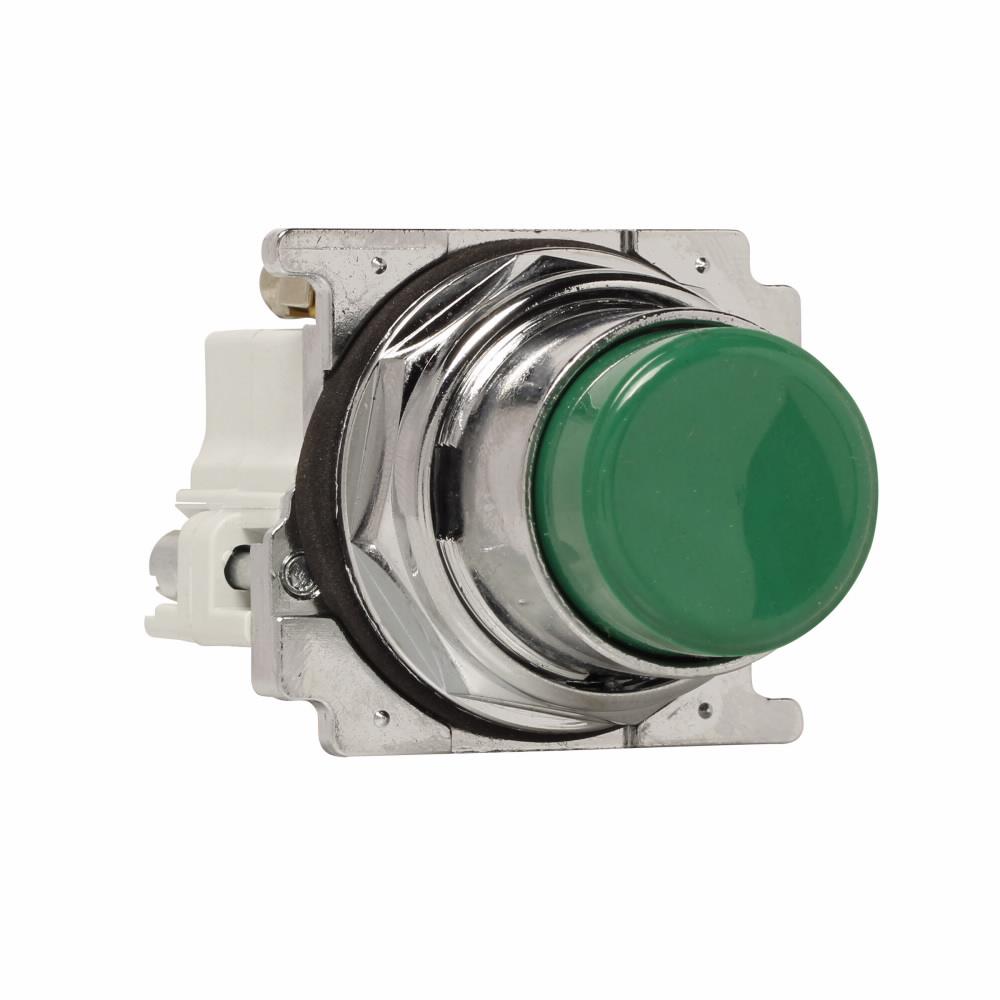

EATON Non-Illuminated Pushbutton, Heavy Duty Oil/Watertight, Series: 10250T, 30.5 mm Size, 1NO-1NC Contact Configuration, Momentary Contact Mode, 10 A at 600 VAC Contact, Bezel/Housing: Polished Chrome Bezel, Extended Button Actuator, NEMA 3/3R/4/4X/12/13 Enclosure, Die-Cast Zinc, Polished Chrome, Green
| Actuator | : | Extended Button |
| Bezel/Housing | : | Polished Chrome Bezel |
| Contact Mode | : | Momentary |
| Contact Rating | : | 10 A at 600 VAC |
| Enclosure Type | : | NEMA 3/3R/4/4X/12/13 |
| Finish | : | Polished Chrome |
| Material | : | Die-Cast Zinc |
| Series | : | 10250T |
| Type | : | Heavy Duty Oil/Watertight |
| Size | : | 30.5 mm |
| Contact Configuration | : | 1NO-1NC |
| Color | : | Green |
- Heavy duty die-cast zinc construction
- Enclosed silver contacts with reliability nibs
- Diaphragm seals with drainage holes
- Grounding nibs on the operator casing
- Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
- Drainage holes prevent build-up of liquid inside the operator which can prevent operation in freezing environments
- Grounding nibs bit through paint and other coatings to provide secure ground
