Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.

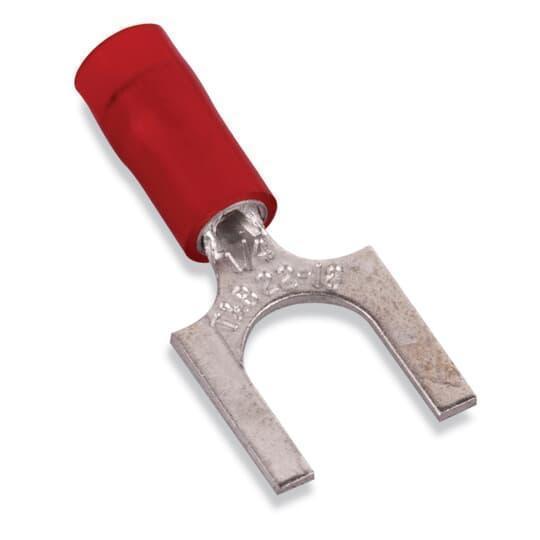

Panduit® Pan-Term® Fork Terminal, Loose Piece, Series: PNF-F, Copper Stranded Conductor, #18 Conductor, #8 Stud, 0.86 in Length, Funnel Entry/Sleeved/Internal Serration Barrel, Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V, Specifications: 7/32 in L Wire Strip, 0.136 in Dia Nylon Insulation, 0.21 in Mounting Hole, 1/4 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Red

• Fork design provides for fast and easy installation, without the need to remove fastener
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Locks in place for secure connection insulation support helps to prevent wire damage in bending applications
• Brazed seam protects terminal barrel from splitting during the crimp process
• Flange design provides extra secure connection on a variety of applications
• Barrel of terminal internally beveled to provide quick and easy wire insertion

• Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_PNF18-6F-M_Full_Engineering_Drawing.pdf
