Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor. These adjustable bimetallic ambient compensated contactors are designed for use with CE or CN non-reversing and reversing contactors. They have interchangeable heater packs and are available in four sizes for overload protection up to 900 hp, reducing the number of different contactor/overload relay combinations that have to be stocked. They also feature a full line of snap-on accessories common to both IEC and NEMA devices.

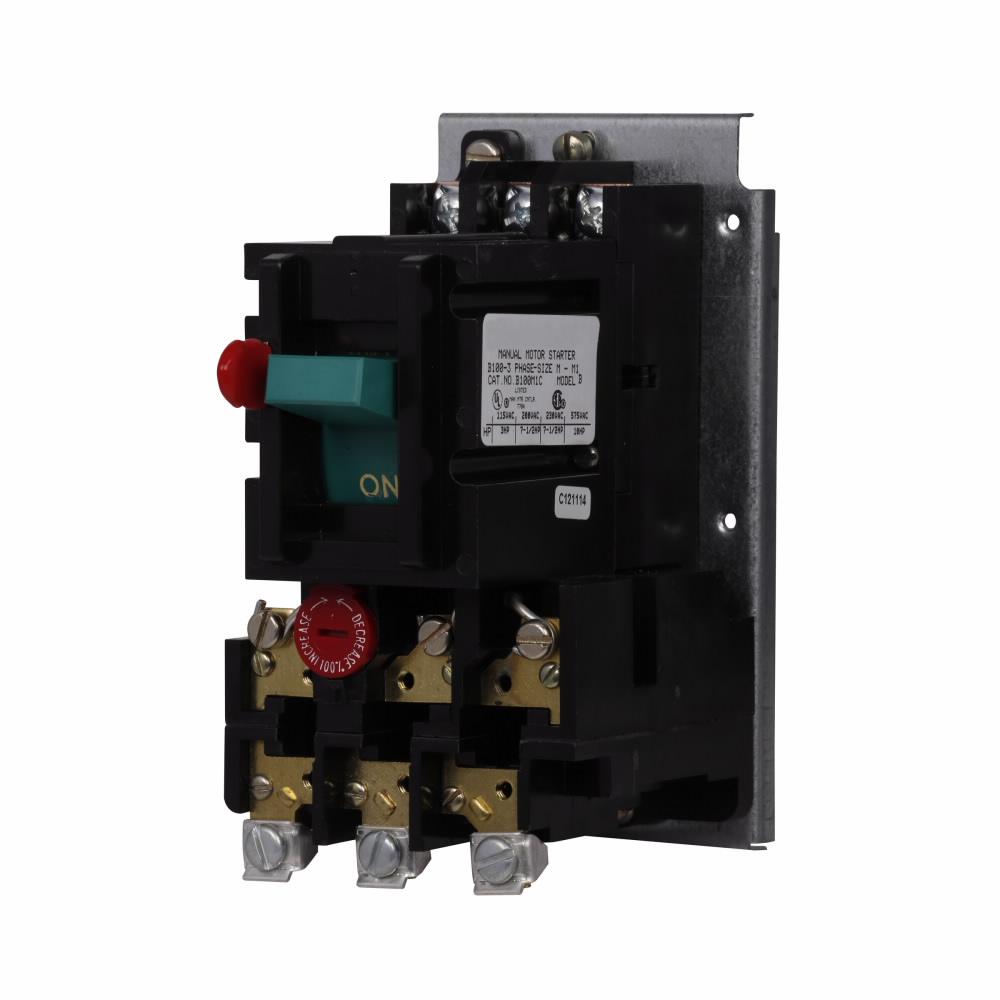

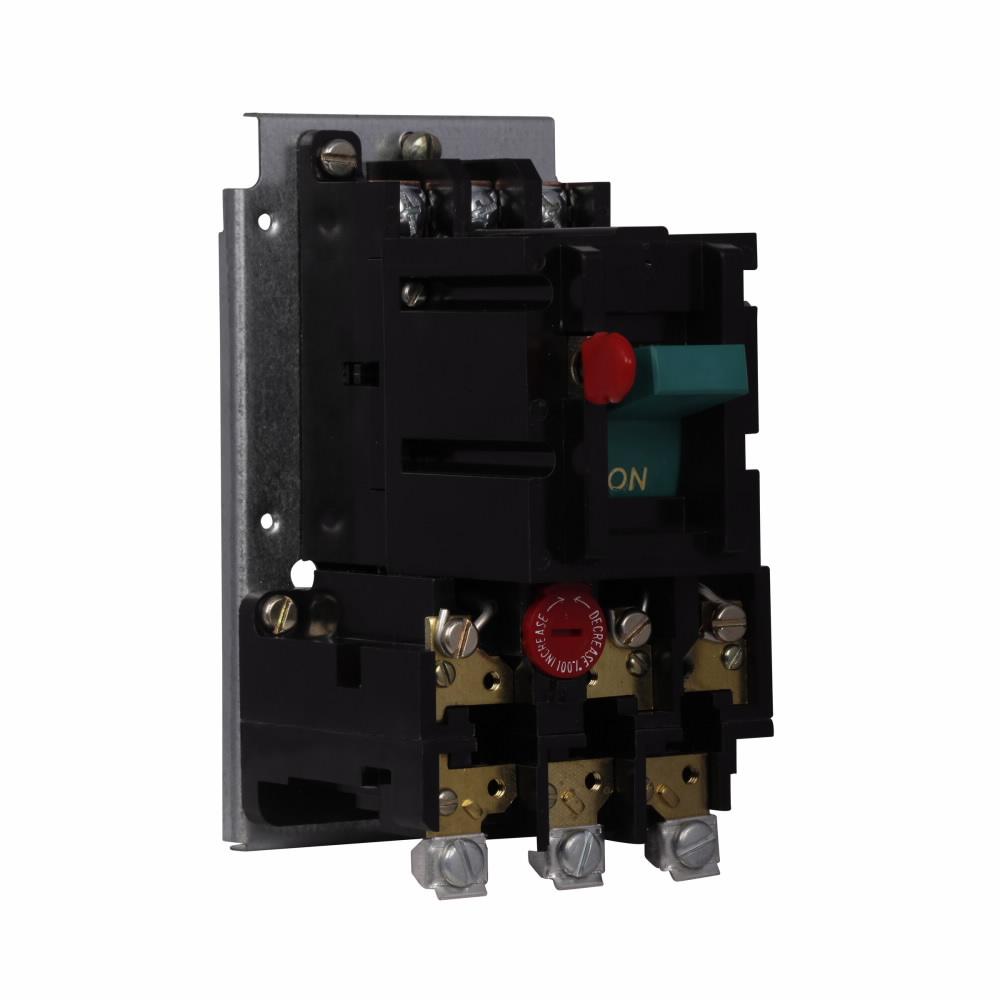

EATON Motor Starter, Series: B100, 600 VAC, 26.8 A, 10 hp Motor, 3 Pole, Manual Reset, Screw Connection, Non-Reversing Action, Bi-Metal Overload Relay, Toggle Control, NEMA M-1/Open Enclosure, 5.84 in H x 3.19 in W x 4.59 in D Dimensions
| Amperage Rating | : | 26.8 A |
| Connection Type | : | Screw |
| Control Type | : | Toggle |
| Dimensions | : | 5.84 in H x 3.19 in W x 4.59 in D |
| Motor Power | : | 10 hp |
| Overload Relay | : | Bi-Metal |
| Reset Type | : | Manual |
| Series | : | B100 |
| Voltage Rating | : | 600 VAC |
| Action | : | Non-Reversing |
| Number of Poles | : | 3 |
| Enclosure Type | : | NEMA M-1/Open |
- Straight-through wiring
- Field mounted auxiliary contacts
- Standard with a lockout device to lock motor in the off position
- Provides manual control and overload protection
