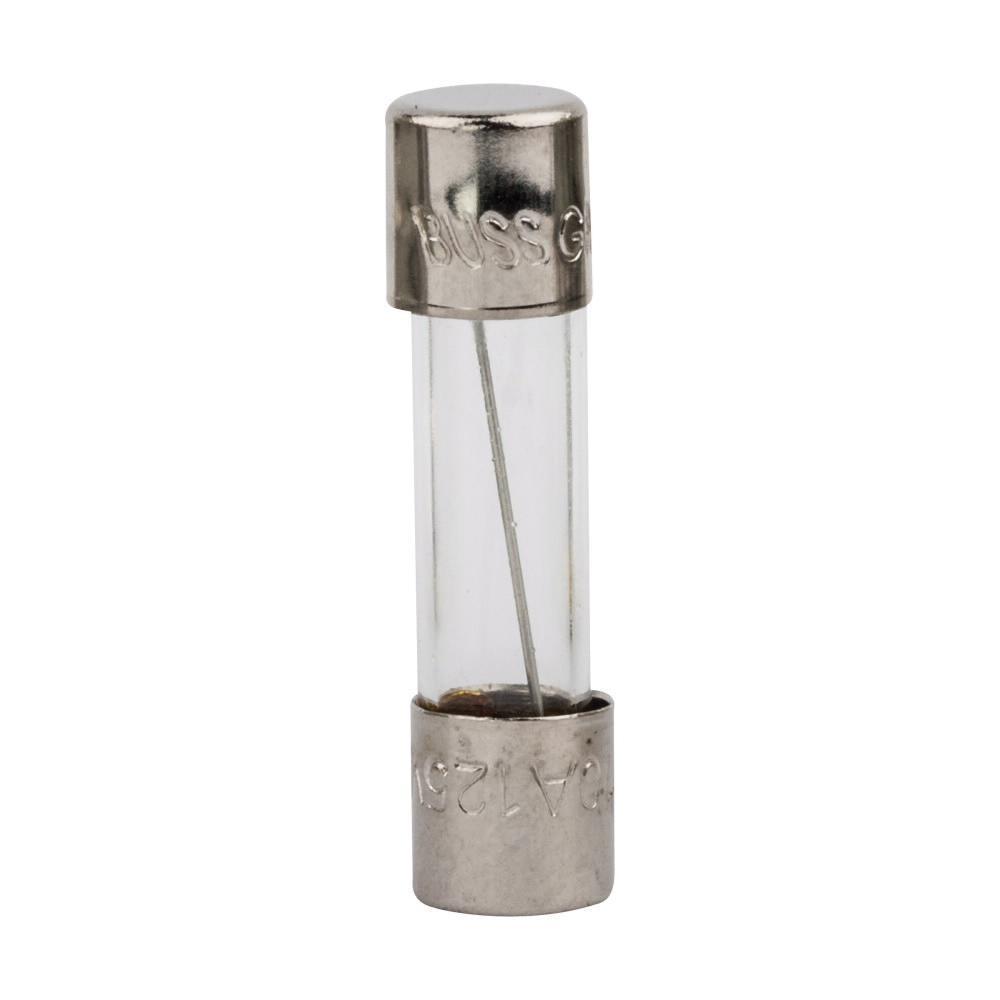

Bussmann GMC-10-R
Bussmann GMC-10-R Low Breaking Medium Time Delay Fuse With Nickel Plated Brass End Caps, 10 A, 125 VAC, 200 A, Cylindrical Body
- Manufacturer Name: Eaton
- MPN: GMC-10-R
- Brand Name: Bussmann
- UPC: 051712642828
- FEPN: GMC-10-R BU
- Min Order Qty: 5
- Quantity Interval: 5
-
Inventory Availability
-
Retail Price:
Medium time delay, glass tube 5 mm x 20 mm ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block or fuse clip. Also available with axial leads for thru-hole installation. Eaton's GMC medium time delay, glass tube 5mm x 20mm ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
Bussmann Time Delay Fuse, Low Breaking Medium, Series: GMC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 10 A, 125 VAC, 200 A Interrupt, 60 min, 2 min Response, Ferrule Terminal, Holder Mount, Cylindrical Body, Single Element, Glass, 5.2 mm Dia x 20 mm L Body Size
| Body Size | : | 5.2 mm Dia x 20 mm L |
| Element | : | Single |
| Indicating/Non-Indicating | : | Non-Indicating |
| Material | : | Glass |
| Mounting Type | : | Holder |
| Rejection/Non-Rejection | : | Non-Rejection |
| Response Time | : | 60 min, 2 min |
| Series | : | GMC |
| Terminal Type | : | Ferrule |
| Type | : | Low Breaking Medium |
| Amperage Rating | : | 10 A |
| Voltage Rating | : | 125 VAC |
| Interrupt Rating | : | 200 A |
| Body Type | : | Cylindrical |
- 200 A at 125 VAC interrupt rating
- 60 min maximum at 135%, 2 min maximum at 200% response time
