Panduit® SCS750-6

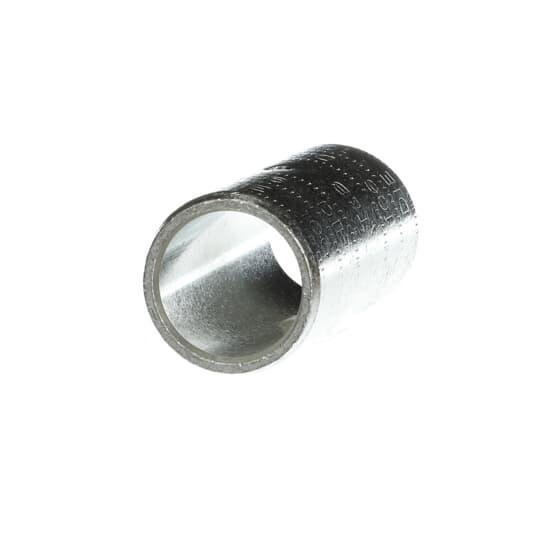

Panduit® Pan-Lug™ SCS750-6 Compression Butt Splice, 750 kcmil Conductor, 3.37 in L, Standard Barrel, Copper, Black
- Manufacturer Name: Panduit
- MPN: SCS750-6
- Brand Name: Panduit®
- UPC: 074983903757
- FEPN: SCS750-6 PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Term® splices are designed and manufactured for fast assembly and long reliable performance. As the demand for splices increases, it becomes essential to provide a complete system for termination products. We provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit® Pan-Lug™ Compression Butt Splice, Series: SCS, Stranded Copper Conductor, 750 kcmil Conductor, 3.37 in Length, Standard Barrel, 1.03 in ID x 1.29 in OD Barrel, 35 kV, 1-5/8 in L Wire Strip, 90 deg C, Copper, Black, Electro TiN Coated
| Barrel Size | : | 1.03 in ID x 1.29 in OD |
| Conductor Type | : | Stranded Copper |
| Finish | : | Electro TiN Coated |
| Series | : | SCS |
| Specifications | : | 1-5/8 in L Wire Strip |
| Temperature Rating | : | 90 deg C |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 750 kcmil |
| Length | : | 3.37 in |
| Barrel Type | : | Standard |
| Material | : | Copper |
| Color | : | Black |
- Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Internal solid center prevents over-insertion of conductor
- Tin plated to inhibit corrosion
