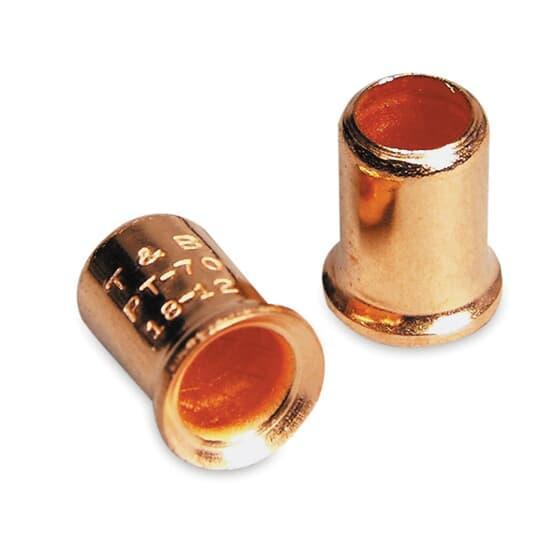

Crimp connectors from IDEAL® are designed for making fast, permanent, pressure-type connections. Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available. The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock.
IDEAL® Crimp Connector, Series: 410®, 18 to 10 AWG Wire, 600 VAC, Specifications: (1) 14 AWG with (1) 18 AWG Minimum, (2) 10 AWG with (2) 14 AWG Max Conductor Range, 221 deg F, Copper/Steel, Zinc Plated, 3/8 in L x 13/64 in W Dimensions
| Dimensions | : | 3/8 in L x 13/64 in W |
| Finish | : | Zinc Plated |
| Series | : | 410® |
| Specifications | : | (1) 14 AWG with (1) 18 AWG Minimum, (2) 10 AWG with (2) 14 AWG Max Conductor Range |
| Temperature Rating | : | 221 deg F |
| Voltage Rating | : | 600 VAC |
| Wire Size | : | 18 to 10 AWG |
| Material | : | Copper/Steel |
- Three models cover a wire range from 18 to 4 AWG
- Long zinc plated steel sleeves maximize contact area with conductors
- , will not vibrate loose when securely crimped
- Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available
- The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock
RoHS
