EATON M22 pushbutton line is a complete, modular and versatile offering. From field convertible maintained operators to customizable laser engraved buttons, the M22 pushbutton line provides endless opportunity for flexibility and reduced inventory. Each operator type provides options for ordering as complete or component parts allowing for a perfect fit for each application. All of this flexibility comes in a very rugged design.

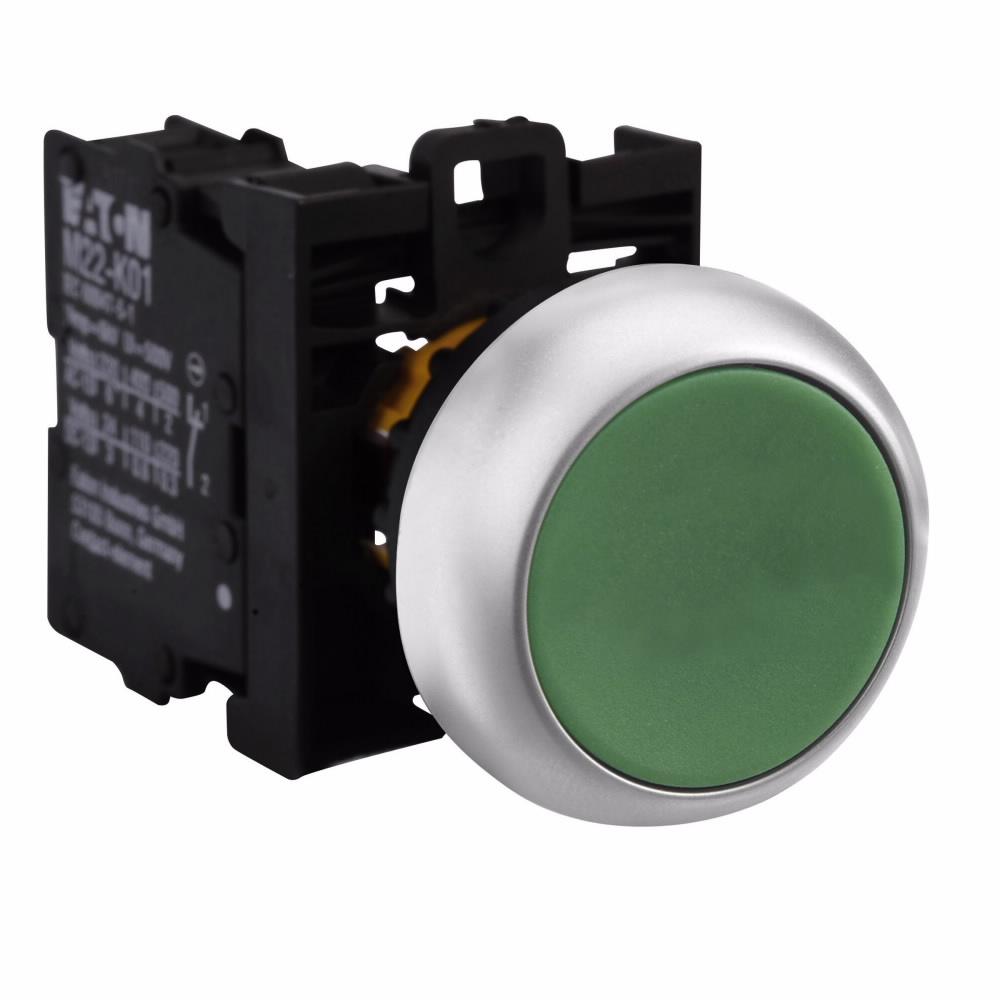

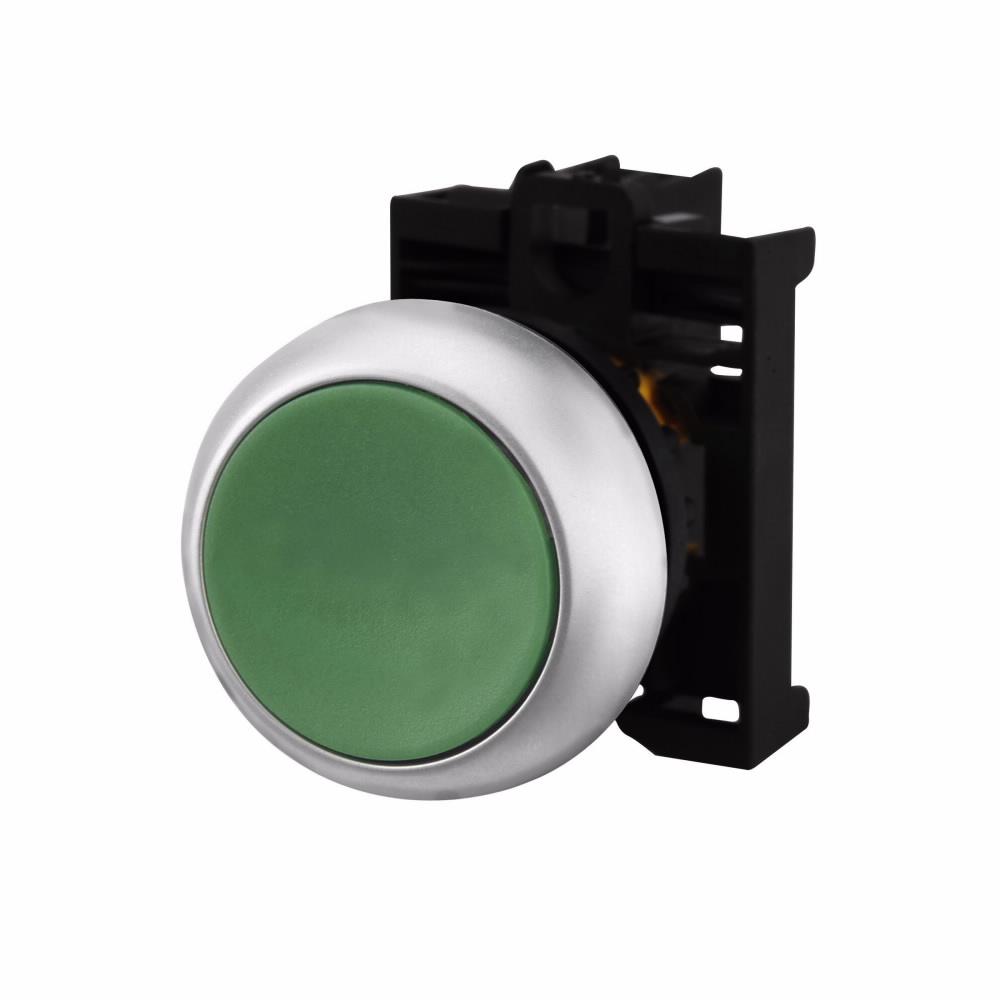

EATON RMQ-Titan® Non-Illuminated Pushbutton, Modular, Series: M22, 22.5 mm Size, 1NO-1NC Contact Configuration, Momentary Contact Mode, Bezel/Housing: Silver Bezel, Flush Button Actuator, Screw Terminal, NEMA 4X/13/IP67/IP69K Enclosure, Flush Mounting, Plastic, Green, Environmental Conditions: -25 to 70 deg C Operating Temperature
| Actuator | : | Flush Button |
| Bezel/Housing | : | Silver Bezel |
| Contact Mode | : | Momentary |
| Enclosure Type | : | NEMA 4X/13/IP67/IP69K |
| Environmental Conditions | : | -25 to 70 deg C Operating Temperature |
| Material | : | Plastic |
| Mounting Type | : | Flush |
| Series | : | M22 |
| Terminal Type | : | Screw |
| Type | : | Modular |
| Size | : | 22.5 mm |
| Contact Configuration | : | 1NO-1NC |
| Color | : | Green |
- Field convertible from maintained to momentary operation
- Customizable laser engraving on all buttons
- More than 5 million mechanical operations
- Modular construction makes assembly fast and simplifies stocking of components and complete devices
- Capable of communicating via ASi protocol with ASi adapter modules
Instruction/Installation Manual
