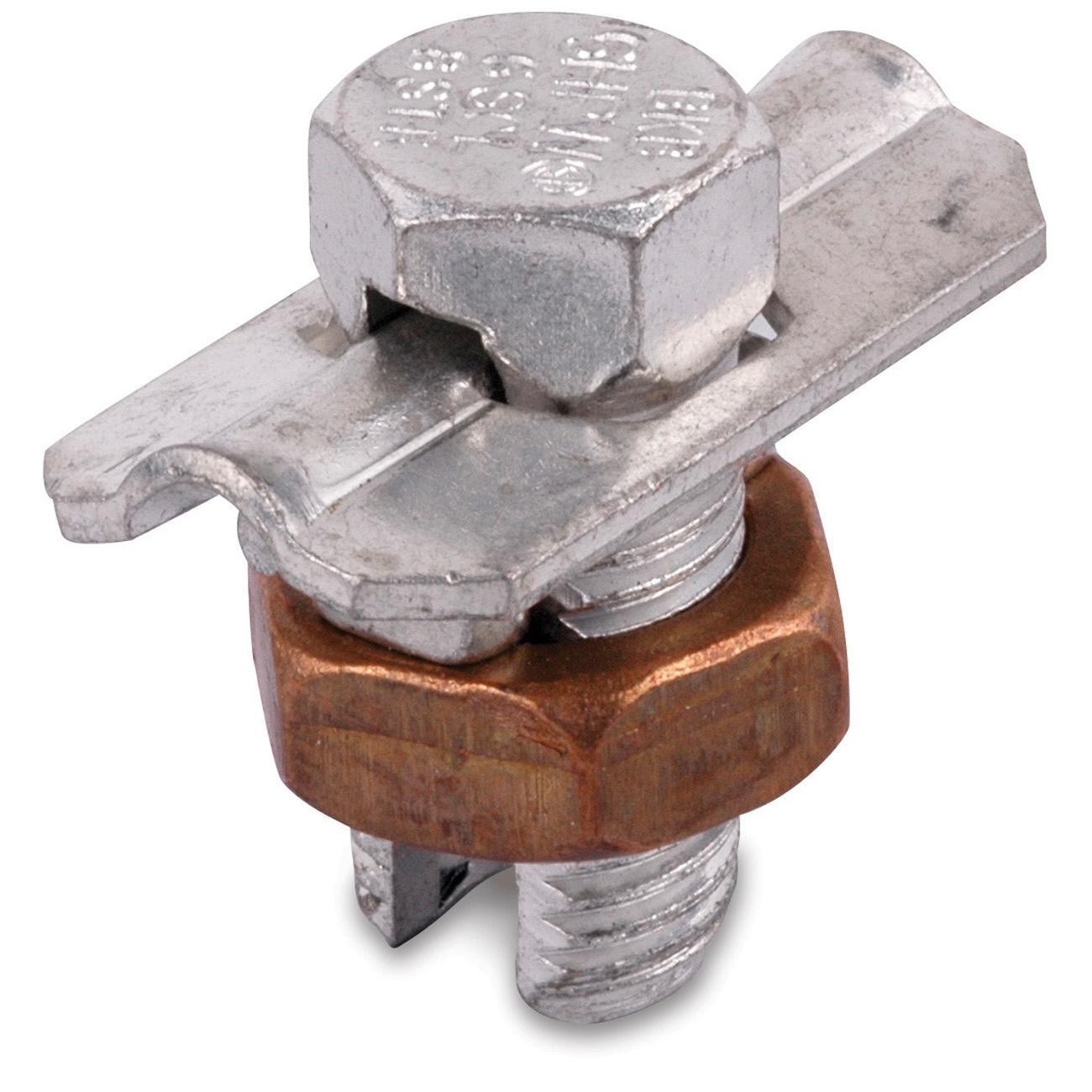

Blackburn® 40HPW
Blackburn® 40HPW Type HPW Split Bolt Connector, 4 to 4/0 AWG ACSR/Solid/Stranded Aluminum/Copper Conductor, 1 x 2-15/32 in Bolt, Copper Alloy
- Manufacturer Name: ABB
- MPN: 40HPW
- Brand Name: Blackburn®
- UPC: 783786200399
- FEPN: 40HPW TB
- Min Order Qty: 1
- Quantity Interval: 25
-
Inventory Availability
-
Retail Price:
Blackburn®, 40HPW, Split Bolt Connector, Type HPW, ACSR/Solid/Stranded Aluminum/Copper Conductor, 4 to 4/0 AWG Conductor, 1 x 2-15/32 in Bolt, Specifications: 0.58 in Split, 1-5/16 in Hex Nut, Copper Alloy, Electro-Plated Tin, Metallic, 2-15/32 in H Dimensions
| Color | : | Metallic |
| Dimensions | : | 2-15/32 in H |
| Finish | : | Electro-Plated Tin |
| Specifications | : | 0.58 in Split, 1-5/16 in Hex Nut |
| Type | : | Type HPW |
| Conductor Size | : | 4 to 4/0 AWG |
| Conductor Type | : | ACSR/Solid/Stranded Aluminum/Copper |
| Bolt Size | : | 1 x 2-15/32 in |
| Material | : | Copper Alloy |
- Spacer and washer of tin plated electrolytic copper
- Contoured spacer and bell mouth washer distribute pressure over large area of conductor
- 4/0 AWG stranded to 4 AWG solid conductor range for equal main and tap
- 25 Pieces/Pack
- Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance
- Large contoured spacer provides wide separation between copper and aluminum conductors
- Blackburn® contax recommended when used on aluminum conductors
- Split-bolt connector with spacer and washer made of copper alloy for use on copper, aluminum, ACSR conductors
