Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor. These adjustable bimetallic ambient compensated contactors are designed for use with CE or CN non-reversing and reversing contactors. They have interchangeable heater packs and are available in four sizes for overload protection up to 900 hp, reducing the number of different contactor/overload relay combinations that have to be stocked. They also feature a full line of snap-on accessories common to both IEC and NEMA devices.

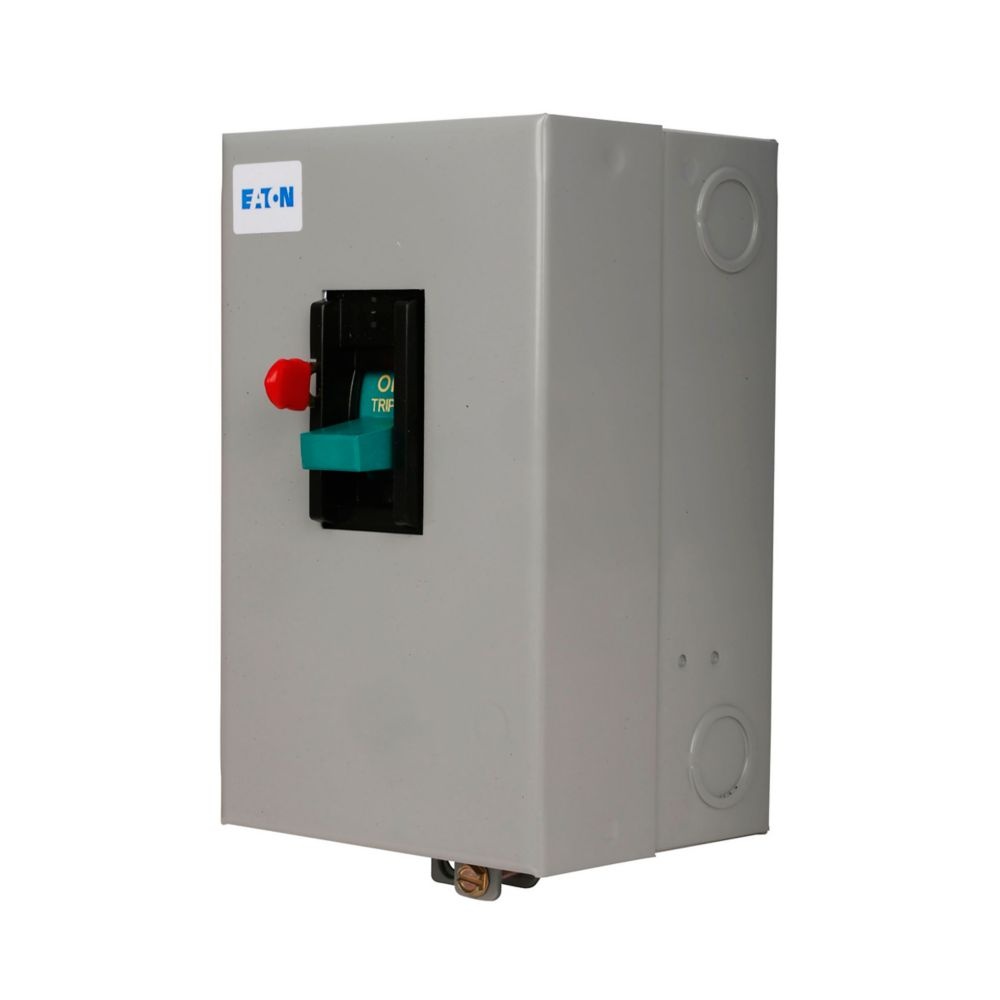

EATON Motor Starter, Enclosed General Purpose, Series: B100, 600 VAC, 26.8 A, 5 hp Motor, 3 Pole, Manual Reset, Non-Reversing Action, Bi-Metal Overload Relay, Toggle Control, NEMA 1/M-0 Enclosure, 4.72 in L x 4.98 in W x 7.59 in H Dimensions
| Amperage Rating | : | 26.8 A |
| Control Type | : | Toggle |
| Dimensions | : | 4.72 in L x 4.98 in W x 7.59 in H |
| Motor Power | : | 5 hp |
| Overload Relay | : | Bi-Metal |
| Reset Type | : | Manual |
| Series | : | B100 |
| Voltage Rating | : | 600 VAC |
| Type | : | Enclosed General Purpose |
| Action | : | Non-Reversing |
| Number of Poles | : | 3 |
| Enclosure Type | : | NEMA 1/M-0 |
- Straight-through wiring
- Field mounted auxiliary contacts
- Standard with a lockout device to lock motor in the off position
- Toggle switch operator and start/stop pushbutton operator
- For polyphase motors
