C.L dimmers are UL listed for controlling a broad range of dimmable CFLs and LEDs. They offer more reliable dimming performance over standard dimmers when dimming CFLs and LEDs, and also provide full range dimming for incandescent and halogen bulbs. C.L dimmers enable you to future-proof your lighting control for new bulbs.

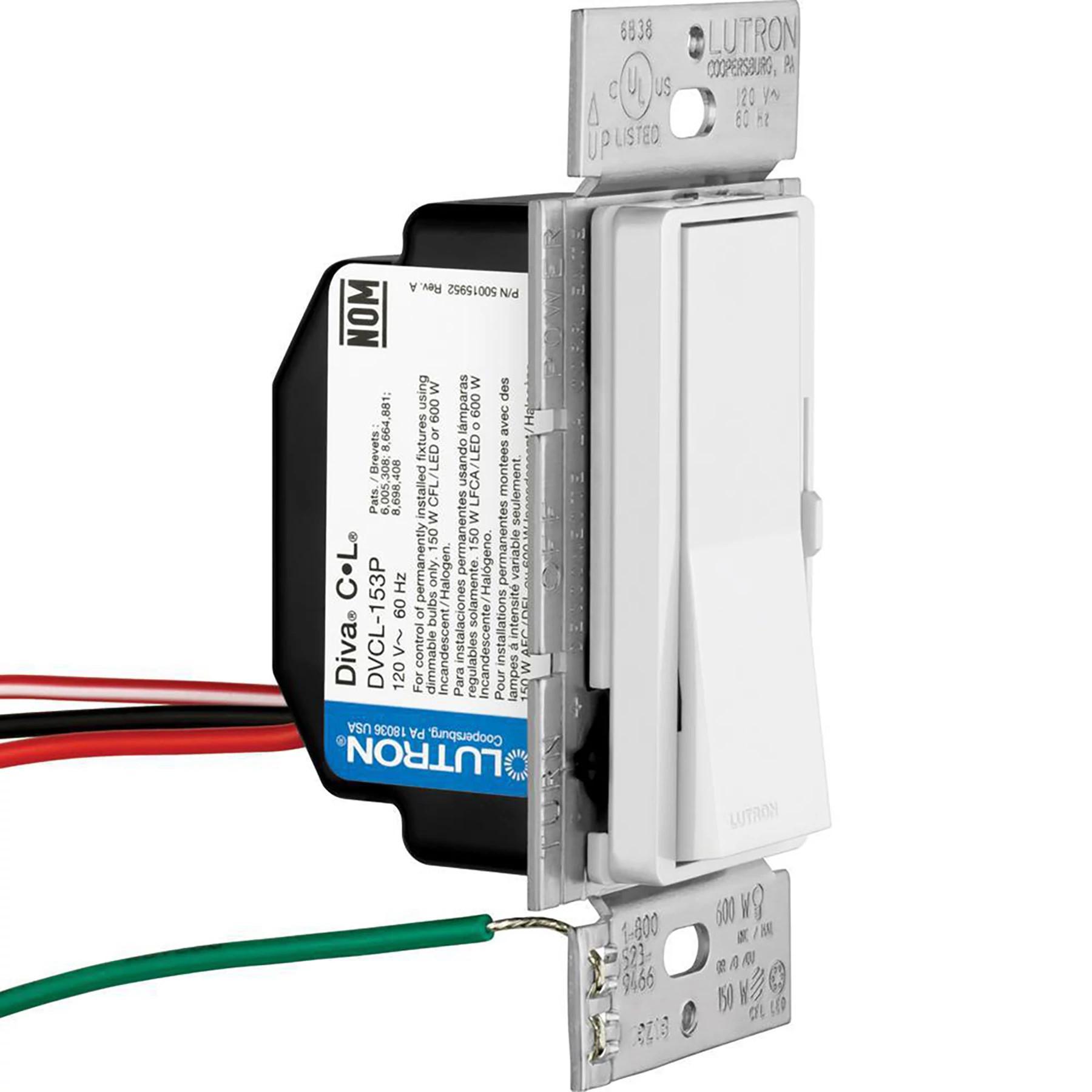

Diva C.L® Dimmer Switch, 3-Way Designer Style, 120 VAC, 150 W Power, 60 Hz Frequency, 1 Pole, CFL/LED Lamp, Preset Start, Paddle On/Off Control, Surface Mounting, Screw Terminal, 0 to 40 deg C, Plastic, White, 4.69 in H x 2.94 in W x 0.3 in D
| Control | : | Paddle On/Off |

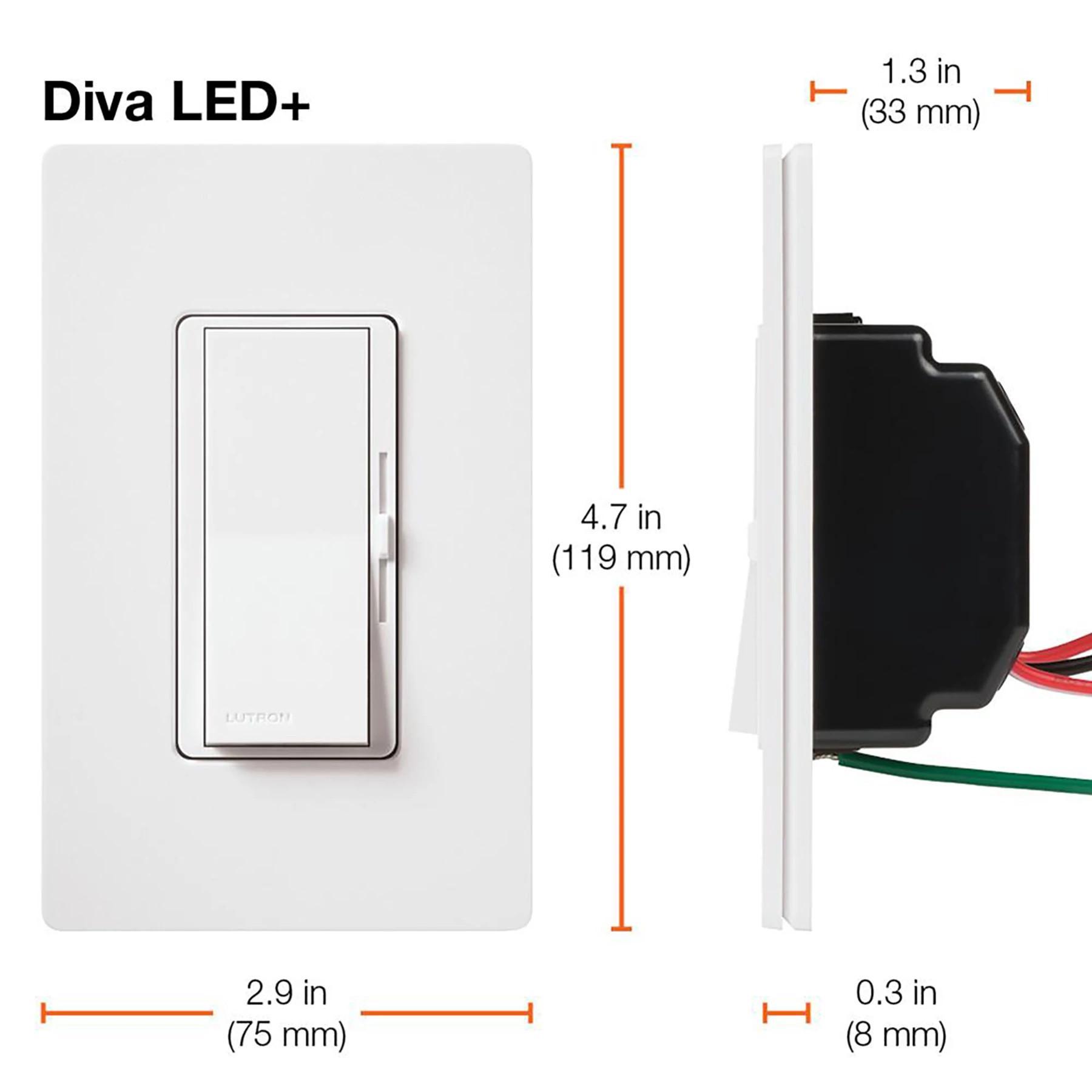

| Dimensions | : | 4.69 in H x 2.94 in W x 0.3 in D |
| Frequency Rating | : | 60 Hz |
| Lamp Type | : | CFL/LED |
| Material | : | Plastic |
| Mounting Type | : | Surface |
| Power Rating | : | 150 W |
| Start Type | : | Preset |
| Temperature Rating | : | 0 to 40 deg C |
| Terminal Type | : | Screw |
| Type | : | 3-Way Designer Style |
| Voltage Rating | : | 120 VAC |
| Number of Poles | : | 1 |
| Color | : | White |

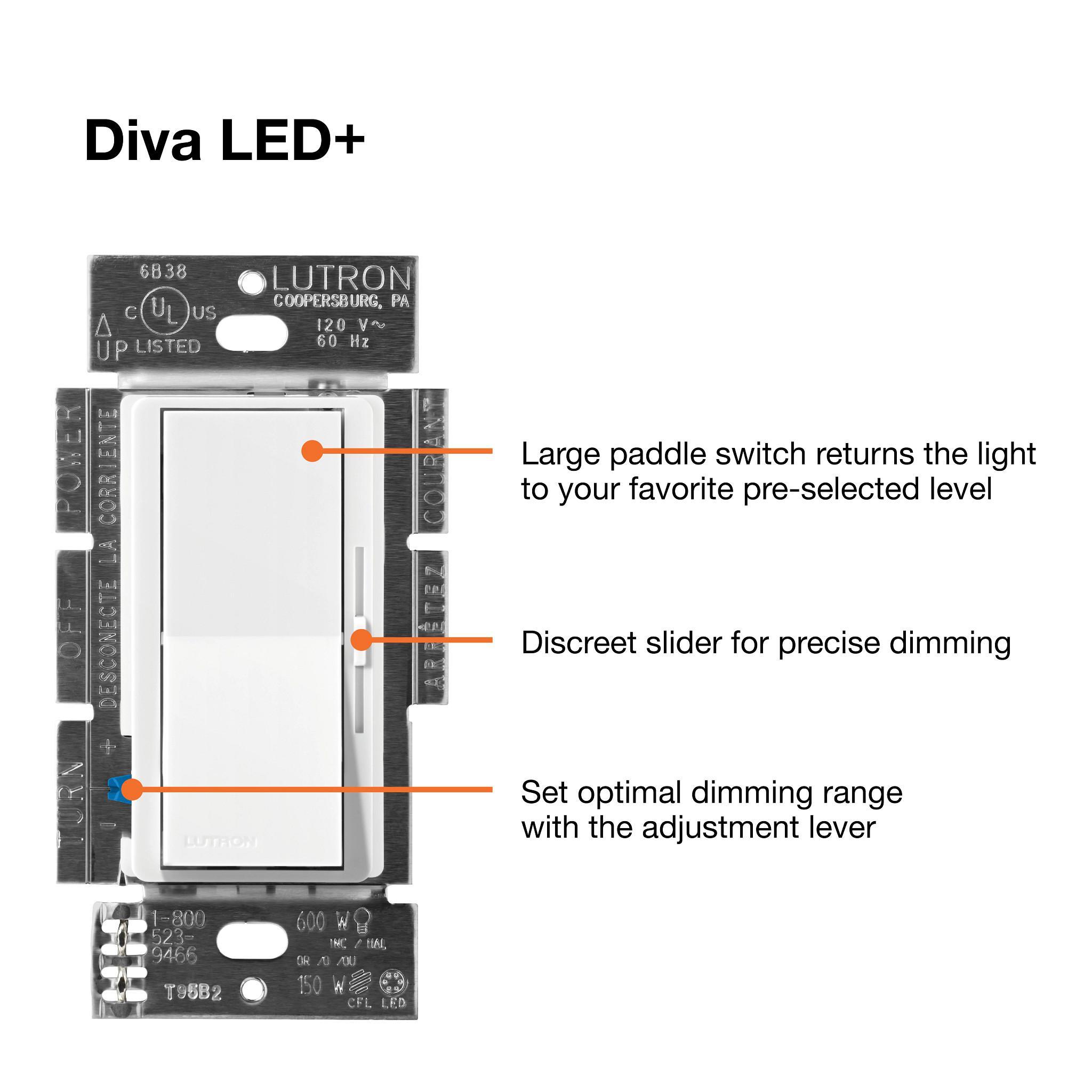

- Large paddle switch with a captive linear slide dimmer for a standard designer wallplate opening
- HED technology, advanced LutronR dimming circuitry designed for compatibility with most high efficacy light bulbs
- Dimmable compact fluorescent (CFL) with integrated ballast
- Low-end adjustment to accommodate a wide range of bulbs
- 100 Percent factory tested
- Power failure memory
- Electrostatic discharge tested
- Mechanical air-gap switch to disconnect load power
- Boxed packaging
- Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming
- Provides over 250 lighting levels so you can create the perfect light for any activity
- Works with up to 150-Watt of dimmable LED/CFL bulbs or 600-Watt of incandescent/halogen bulbs
- Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home
- Can be used in single-pole or 3-Way applications with a mechanical switch
- Rocker switch turns lights on/off to favorite light level. Discreet slider dims and brightens the lights
