The CurrentWatch EGFL Series from EATON electrical sector is a family of ground fault (earth leakage) sensors. Ground fault sensors help protect people, products and processes from damage by ground fault conditions by monitoring all current carrying conductors in grounded 1 and 3-phase delta or wye systems. The EGFL Series is available with either solid state or mechanical relay outputs. The EGFL Series with mechanical relays are available in solid core housings with a choice of NO or NC SPST latching relays and a SPDT Form C relay with auto-reset. All mechanical models can be ordered with a fixed setpoint or with a "triset" option, which provides three factory set, field adjustable set points.

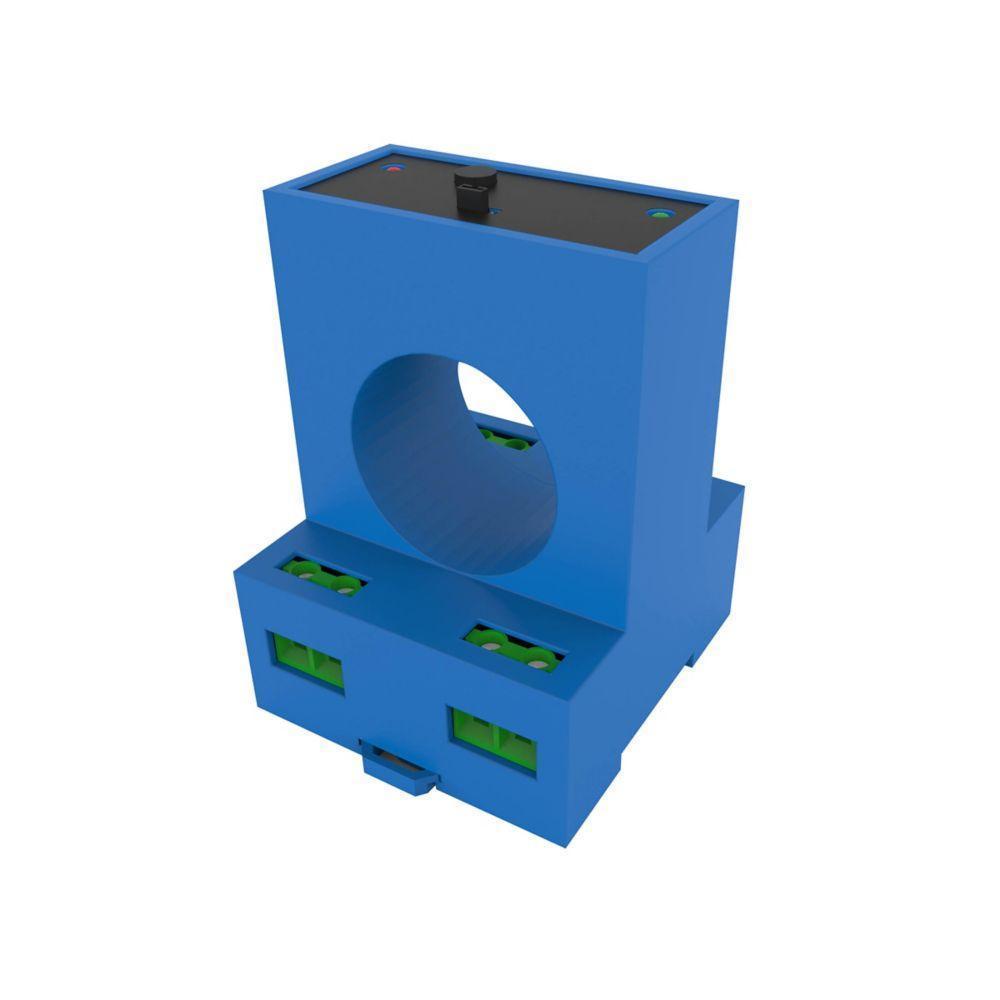

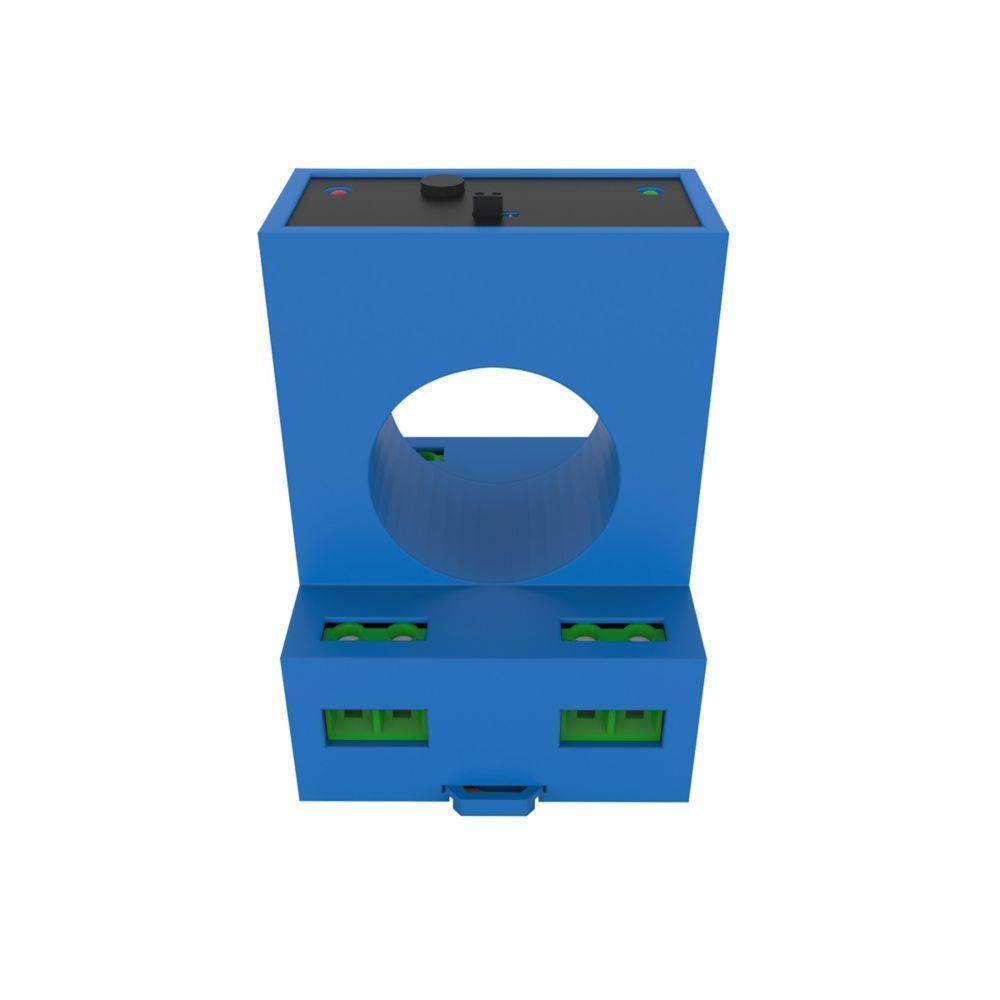

EATON Current Sensor, Solid Core Housing, Series: CurrentWatch EGFL, 15 to 200 ms Response, Mechanical Relay/SPDT Output, 24 VAC/VDC, 1 A, 50 to 400 Hz Frequency, Screw Terminal Connection, 4.2 in H x 3.25 in W x 2.99 in D Size, -4 to 122 deg F Operating, Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity

• Broad range of options to meet application needs -mechanical relays, normally energized or normally de-energized contacts
• Setpoint options maximize ease of use and application flexibility field selectable 5, 10 or 30 ma setpoints on the EGF "triset" models make user adjustments fast, sure and convenient
• Compatible with standard equipment application on single and three phase systems, ideal for use with shunt trip breakers, and magnetically isolated from monitored circuit and control power

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_EGFL2SPDTDET3_Specification_Sheet.pdf
• Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4c9290dd3ea239296d5f704f8d728cef0f699aae617f5be5dd4bc81405af6013.pdf
