Steel City® BG808L

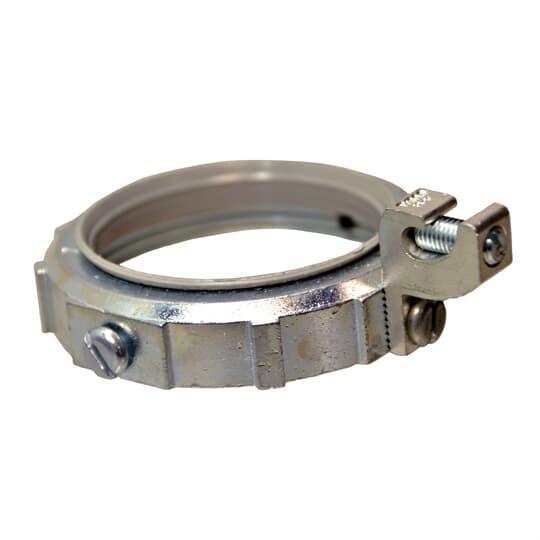

Steel City® BG808L Insulated Grounding Bushing With Aluminum Lug, 3 in Trade, 14 AWG Wire Min, 1/0 AWG Wire Max, 97.9 mm Dia, Die Cast Zinc
- Manufacturer Name: ABB
- MPN: BG808L
- Brand Name: Steel City®
- UPC: 785991088700
- FEPN: BG808L TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Steel City® products have set the standard as the leading brand in electrical construction. In manufacturing quality and innovative design, Steel City® has no peer.
Steel City® Grounding Bushing, Insulated, Series: BG Series, 3 in Trade, 14 AWG Minimum Wire, 1/0 AWG Maximum Wire, 74.3 mm Throat, Lay-In Lug, 97.9 mm Diameter, 38.25 mm Height, Die Cast Zinc
| Height | : | 38.25 mm |
| Lug Type | : | Lay-In |
| Series | : | BG Series |
| Throat | : | 74.3 mm |
| Type | : | Insulated |
| Trade Size | : | 3 in |
| Minimum Wire Size | : | 14 AWG |
| Maximum Wire Size | : | 1/0 AWG |
| Diameter | : | 97.9 mm |
| Material | : | Die Cast Zinc |
- Features thermoplastic liners for 105 deg C
- Threaded design with heavy reinforced ribs
Specification Sheet
