The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

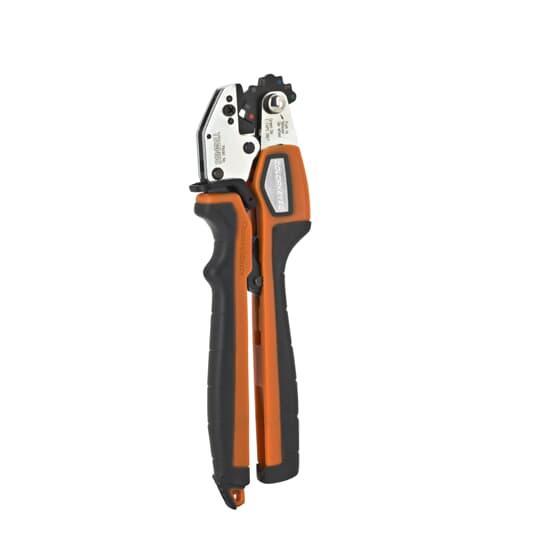

Color-Keyed® Crimping Tool, Manual, 8 to 2 AWG, 10 to 6 AWG, 10.46 in Overall Length, Palm Grip, Applicable Materials: Aluminum and Copper, No Insulated Handle, 3.71 in W
| Applicable Materials | : | Aluminum and Copper |
| Dimensions | : | 3.71 in W |
| Handle Type | : | Palm Grip |
| Overall Length | : | 10.46 in |
| Type | : | Manual |
| Cable/Wire Size | : | 8 to 2 AWG, 10 to 6 AWG |
| Insulated Handle | : | No |
- Comfort crimp ergonomic design, Shure-Stake® ratchet, rotating die wheel, Color coded die nests, die code embossment
- Shure-Stake® mechanism ensures a properly completed crimp each time
- Installs up to green Color coded C-taps and MD2 series motor disconnects
- Requires two crimps per connector
- Comfort crimp ergonomic design, Shure-Stake® ratchet, rotating die wheel
Instruction/Installation Manual
