The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wallplates that complement today homes.

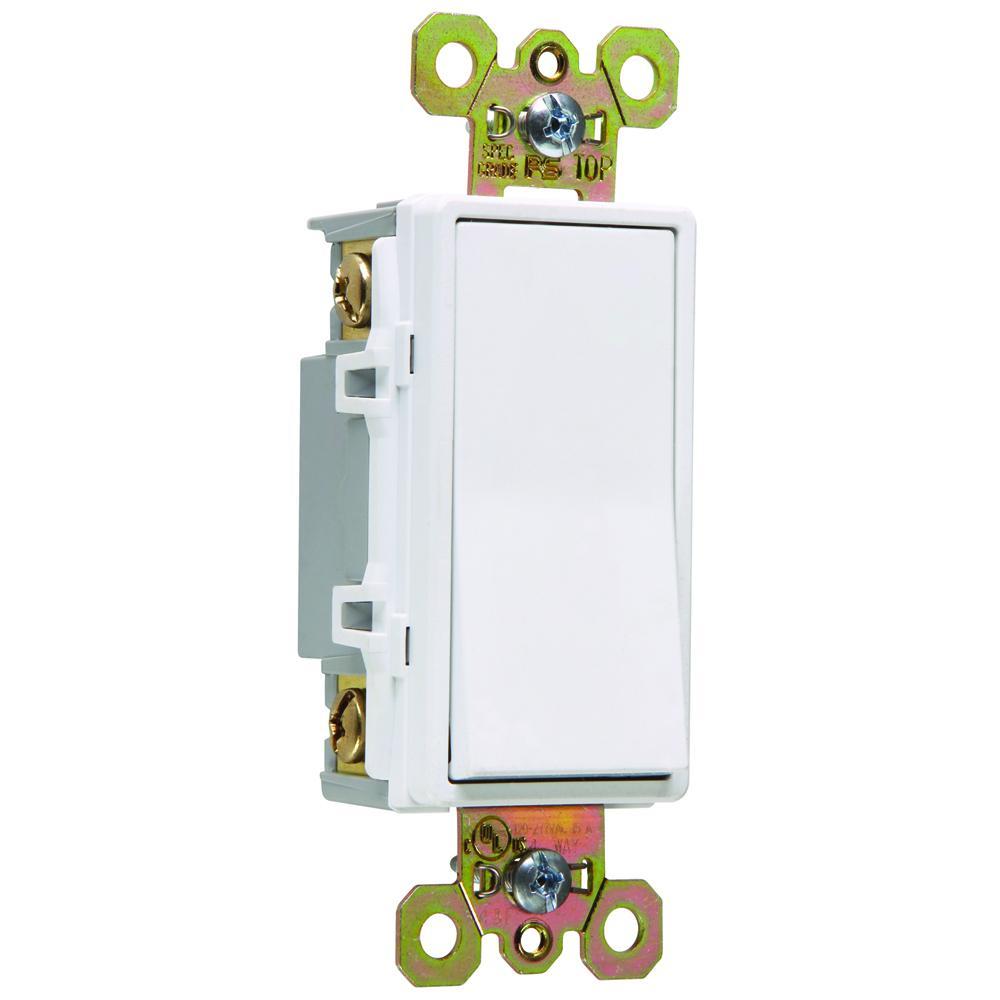

Pass & Seymour® TradeMaster® Decorator Switch, 4-Way, Series: Radiant®, 120/277 VAC, 15 A, ON/OFF Action, Rocker Actuator, Bare Insulation, Wall Mounting, Threaded Terminal, Thermoplastic, White, 4.19 in H x 1.43 in W x 1.27 in D Dimensions
| Action | : | ON/OFF |
| Actuator | : | Rocker |
| Color | : | White |
| Dimensions | : | 4.19 in H x 1.43 in W x 1.27 in D |
| Insulation | : | Bare |
| Material | : | Thermoplastic |
| Mounting | : | Wall |
| Series | : | Radiant® |
| Terminal Type | : | Threaded |
| Type | : | 4-Way |
| Voltage Rating | : | 120/277 VAC |
| Amperage Rating | : | 15 A |
- Smooth paddle action
- External screw pressure plate back and side wired
- Accepts 12 and 14 AWG wire size
- Narrow back body leaves more room for wires in the box
- Extra long, through body strap eliminates floating installations and imperfect applications
- Easy access green hex head ground screw
- Tri-drive ground, terminal and mounting screws
- On-Off switches conform to National Electrical Code 430-104 requirements for kitchen and disposal units
- Designer style satin finish rocker
- 4-phase
- 1-1/2 in THK
- Replaces any standard switch with ease, in as little as 10 min
- Uses a paddle switch for smoother control with a low-profile aesthetic
- Features durable, high-impact resistant thermoplastic construction
- Designed to install easily with a narrower back body and captivated mounting screws
- More color options available to fit any style, including finishes to match current hardware and lighting trends
- Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
