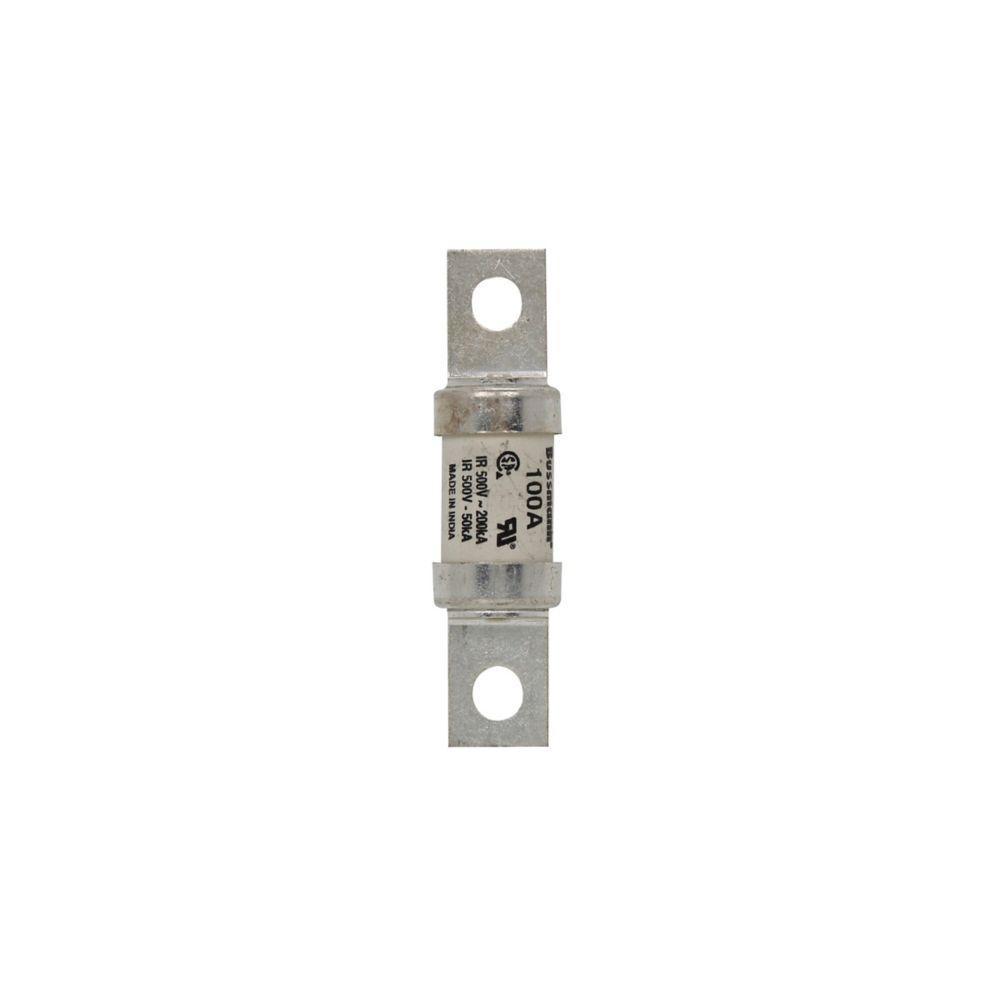

Bussmann FWH-100B
Bussmann FWH-100B Fast Acting Semi-Conductor High Speed Fuse, 100 A, 500 VAC, 200 kA Interrupt, Cylindrical Body
- Manufacturer Name: Eaton
- MPN: FWH-100B
- Brand Name: Bussmann
- UPC: 051712795821
- FEPN: FWH-100B BU
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Eaton's Bussmann series High speed cylindrical fuses are suitable for the protection of AC and DC Drives, power converters/ rectifiers and variable speed drives. They are available as gR and aR operating class
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWH, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 100 A, 500 VAC, 200 kA Interrupt, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Cylindrical Body, Single Element, Ceramic, 0.947 in Dia x 3.625 in L Body Size
| Body Size | : | 0.947 in Dia x 3.625 in L |
| Element | : | Single |
| Frequency Rating | : | 45 to 1000 Hz |
| Indicating/Non-Indicating | : | Non-Indicating |
| Material | : | Ceramic |
| Mounting Type | : | Stud |
| Rejection/Non-Rejection | : | Non-Rejection |
| Series | : | FWH |
| Terminal Type | : | Blade End |
| Type | : | Fast Acting Semi-Conductor |
| Amperage Rating | : | 100 A |
| Voltage Rating | : | 500 VAC |
| Interrupt Rating | : | 200 kA |
| Body Type | : | Cylindrical |
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
