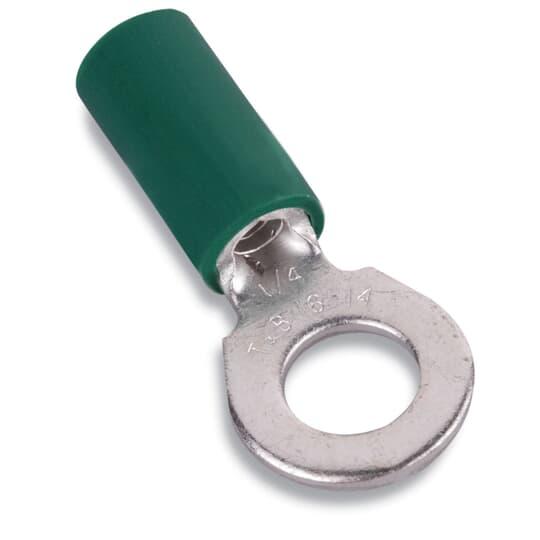

Sta-Kon® 14RBC-8
Sta-Kon® 14RBC-8 RB Series Heavy Duty Insulated Ring Terminal, 16 to 14 AWG Conductor, 1.13 in L, Brazed/Overlapped Seam Barrel, Copper, Green
- Manufacturer Name: ABB
- MPN: 14RBC-8
- Brand Name: Sta-Kon®
- UPC: 786210816876
- FEPN: 14RBC-8 TB
- Min Order Qty: 1
- Quantity Interval: 50
-
Inventory Availability
-
Retail Price:
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Sta-Kon® Ring Terminal, Heavy Duty Insulated, Series: RB Series, 16 to 14 AWG Conductor, #8 Stud, 1.13 in Length, Brazed/Overlapped Seam Barrel, Ring Tongue, 0.39 in W x 0.05 in THK Tongue, 600 V AC, 0.21 in Dia Maximum Insulation, Vinyl Insulation Short Sleeve, 105 deg C, Copper, Tin Coated, Green
| Finish | : | Tin Coated |
| Series | : | RB Series |
| Specifications | : | 0.21 in Dia Maximum Insulation, Vinyl Insulation Short Sleeve |
| Stud Size | : | #8 |
| Temperature Rating | : | 105 deg C |
| Tongue Size | : | 0.39 in W x 0.05 in THK |
| Tongue Type | : | Ring |
| Type | : | Heavy Duty Insulated |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 16 to 14 AWG |
| Length | : | 1.13 in |
| Barrel Type | : | Brazed/Overlapped Seam |
| Material | : | Copper |
| Color | : | Green |
- Funneled barrel entry
- Deep internal serrations
- Can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
- Wire range identification on the tongue of each terminal
- Constructed of electrolytic copper for high conductivity
Specification Sheet
