The HT800 Series from EATON electrical sector is a family of 30.5 mm pushbutton devices which includes momentary, illuminated and mushroom head pushbuttons, selector switches, indicating lights and push-pull switches. The HT800 devices have a familiar appearance found in most industrial applications and are suitable for replacement of several other manufacturer's 30.5 mm pushbutton devices.

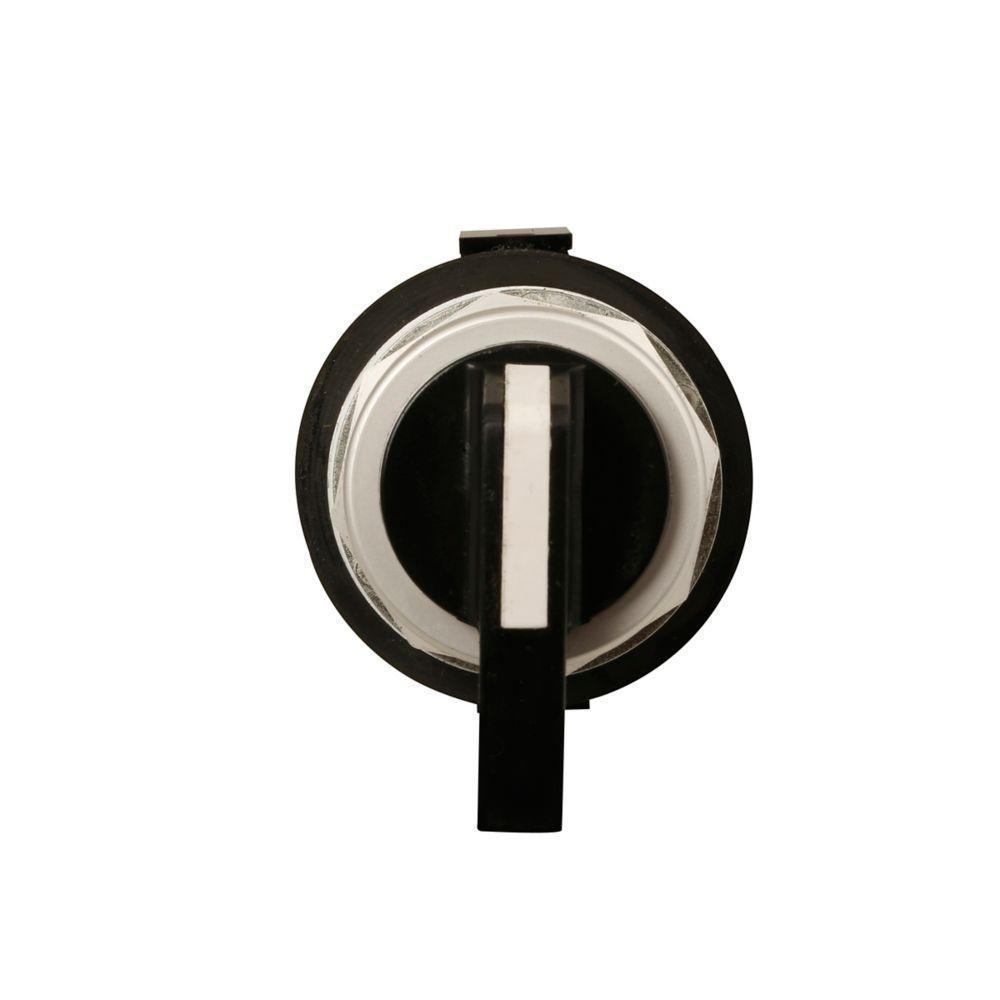

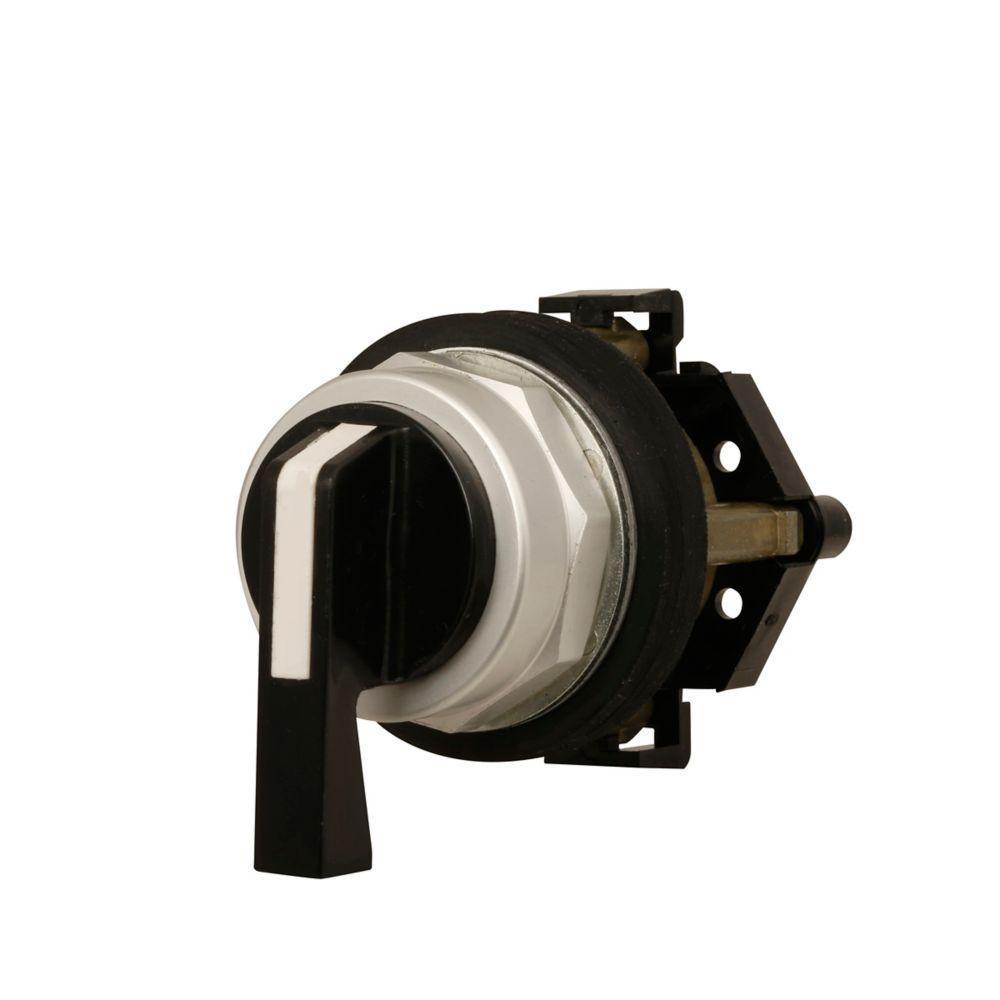

EATON Non-Illuminated Selector Switch, Oil/Watertight, Series: HT800, 30.5 mm, 2NO, Maintained Contact Mode, 10 A at 600 VAC, 5 A at 250 VDC Contact, 3 Positions, Cam Code: Cam 1D, Bezel/Housing: Round Polished Chrome Bezel, Lever, Screw Terminal, NEMA 3/3R/4/4X/12/13, Black, Environmental Conditions: 10 to 140 deg F Operating Temperature, -40 to 176 deg F Storage Temperature, 95% Relative Humidity at 60 deg C
| Actuator | : | Lever |
| Bezel/Housing | : | Round Polished Chrome Bezel |
| Cam Code | : | Cam 1D |
| Contact Mode | : | Maintained |
| Contact Rating | : | 10 A at 600 VAC, 5 A at 250 VDC |
| Enclosure Type | : | NEMA 3/3R/4/4X/12/13 |
| Environmental Conditions | : | 10 to 140 deg F Operating Temperature, -40 to 176 deg F Storage Temperature, 95% Relative Humidity at 60 deg C |
| Number of Positions | : | 3 |
| Series | : | HT800 |
| Terminal Type | : | Screw |
| Type | : | Oil/Watertight |
| Size | : | 30.5 mm |
| Contact Configuration | : | 2NO |
| Color | : | Black |
- Anodized aluminum mounting rings
- Watertight double V-gasket seals
- Transparent housing contact blocks
- Color coded contact blocks
- Gold plated contacts (on low voltage contact block)
- Reliability ridge on movable contact
- Stackable screw mounted contact blocks
- Contact blocks can be mounted in left/right or top/bottom positions
- Standard NC contact opens before No contact closes (break before make operation)
- Field convertible maintained selector switches from 2 to 3-position and vice versa
- Field selectable knob/lever mounting positions at any 22.5 deg increment
