Specially designed for easy installation, EATON BR 1 in loadcenters house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

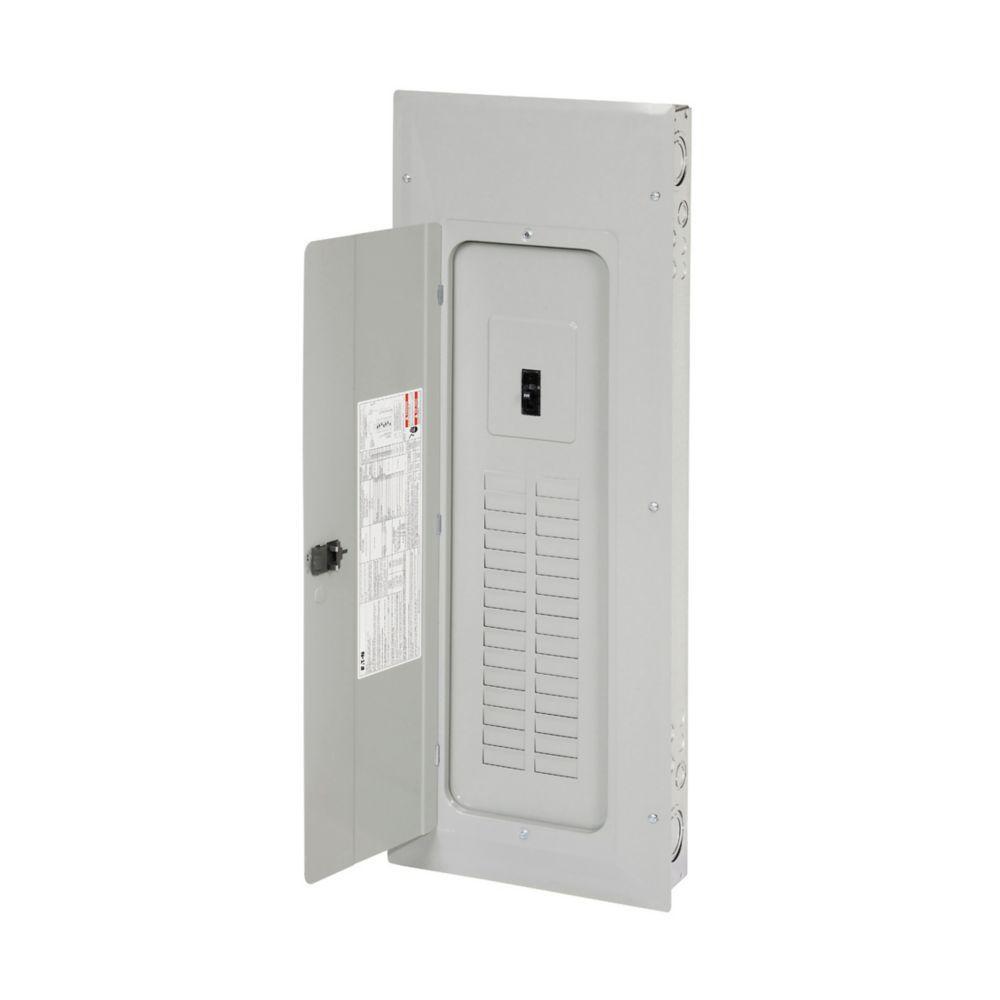

EATON Main Circuit Breaker Load Center, 3-Phase, 208Y/120/240 VAC, 200 A, 25 kA Interrupt, 42 Circuits, BR/BWH Breaker, 4-Wire Wiring Configuration, 30 Spaces, 1 AWG to 250 kcmil Wire, Flush Mounting, NEMA 1 Enclosure, NEMA L1 Enclosure Box, Metal Housing Material, 3.88 in L x 14.31 in W x 4.5 in H Dimensions
| Breaker Type | : | BR/BWH |
| Dimensions | : | 3.88 in L x 14.31 in W x 4.5 in H |
| Enclosure Box Size | : | NEMA L1 |
| Enclosure Type | : | NEMA 1 |
| Housing Material | : | Metal |
| Mounting Type | : | Flush |
| Number of Circuits | : | 42 |
| Number of Spaces | : | 30 |
| Type | : | 3-Phase |
| Wire Size | : | 1 AWG to 250 kcmil |
| Wiring Configuration | : | 4-Wire |
| Voltage Rating | : | 208Y/120/240 VAC |
| Amperage Rating | : | 200 A |
| Interrupt Rating | : | 25 kA |
- Flexible neutral design
- Tangential main knockout
- Single key hole mounting
- Factory pre-attached neutral bonding strap
- Aluminum bus housing
- No feed-thorough lugs
- Bottom/top feed location
- Insulated/bondable single neutral
- 60/75 deg C conductor rating
- Without feed-through lugs
