For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

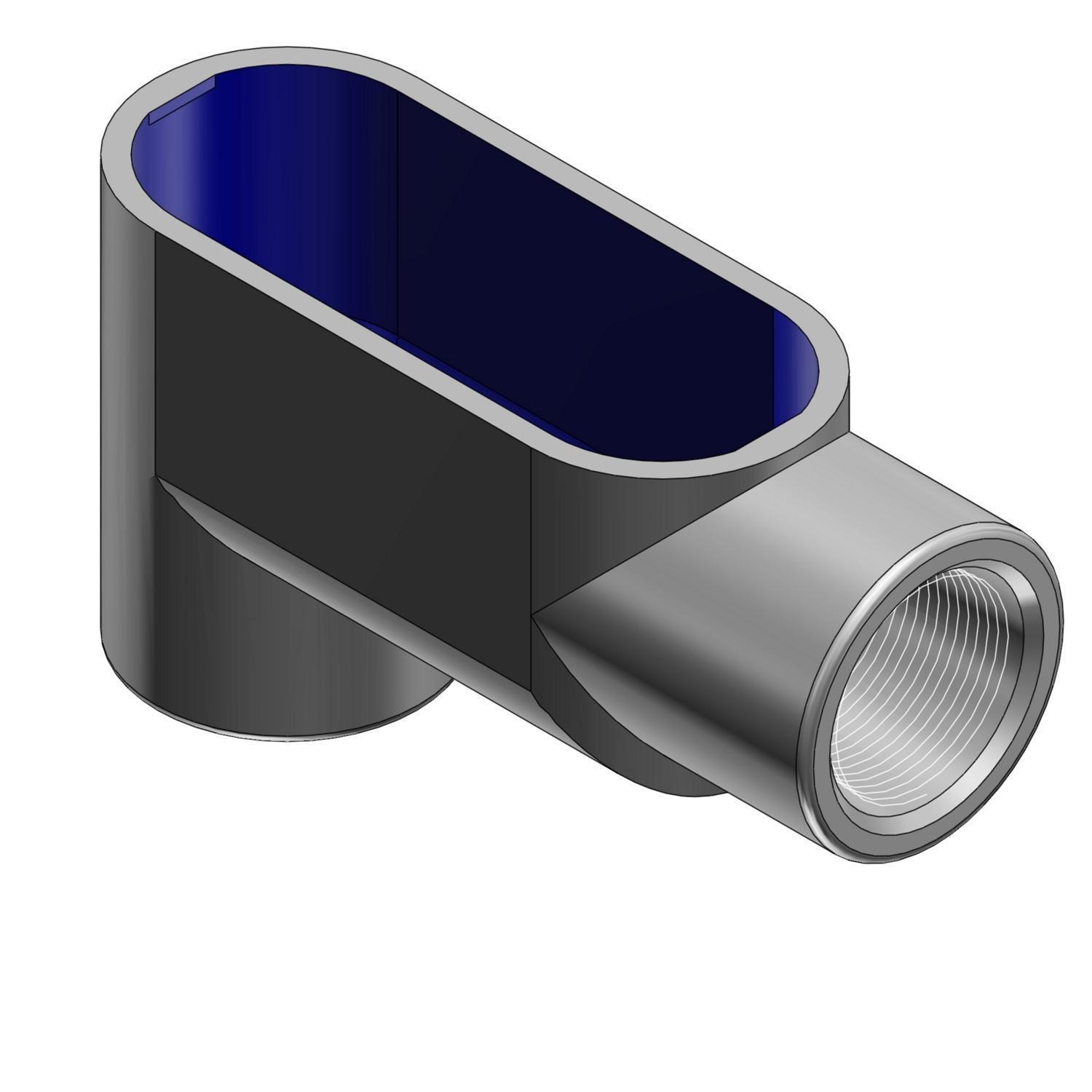

T&B® BlueKote® Conduit Body, Type LB, 1 in Hub, 2 Hubs, 10.6 cu-in Capacity, Form 7, Tapered NPT, Gray Iron, Epoxy Powder Coated/Zinc Plated, 6 in L x 1.8 in W x 2.65 in H
| Connection Type | : | Tapered NPT |
| Dimensions | : | 6 in L x 1.8 in W x 2.65 in H |
| Number of Hubs | : | 2 |
| Type | : | Type LB |
| Hub Size | : | 1 in |
| Form | : | Form 7 |
| Capacity | : | 10.6 cu-in |
| Material | : | Gray Iron |
| Finish | : | Epoxy Powder Coated/Zinc Plated |
- Bluekote® Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
