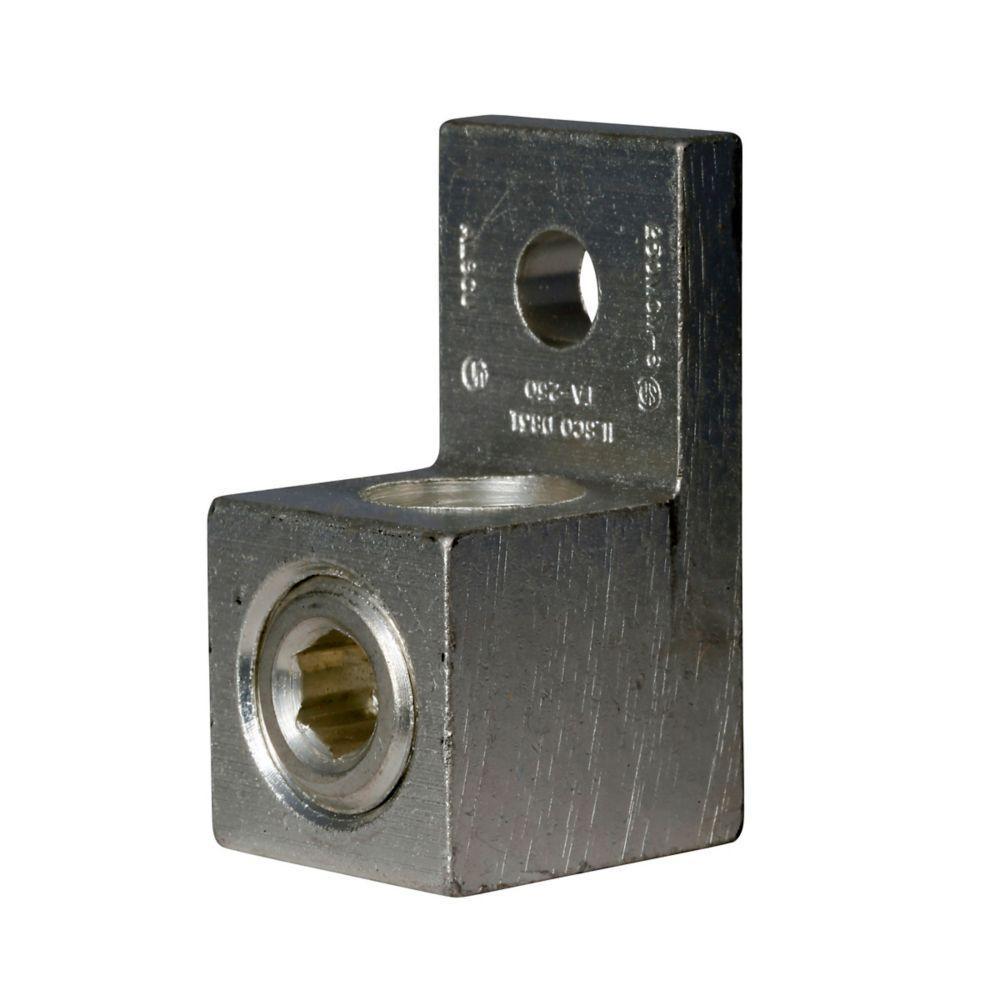

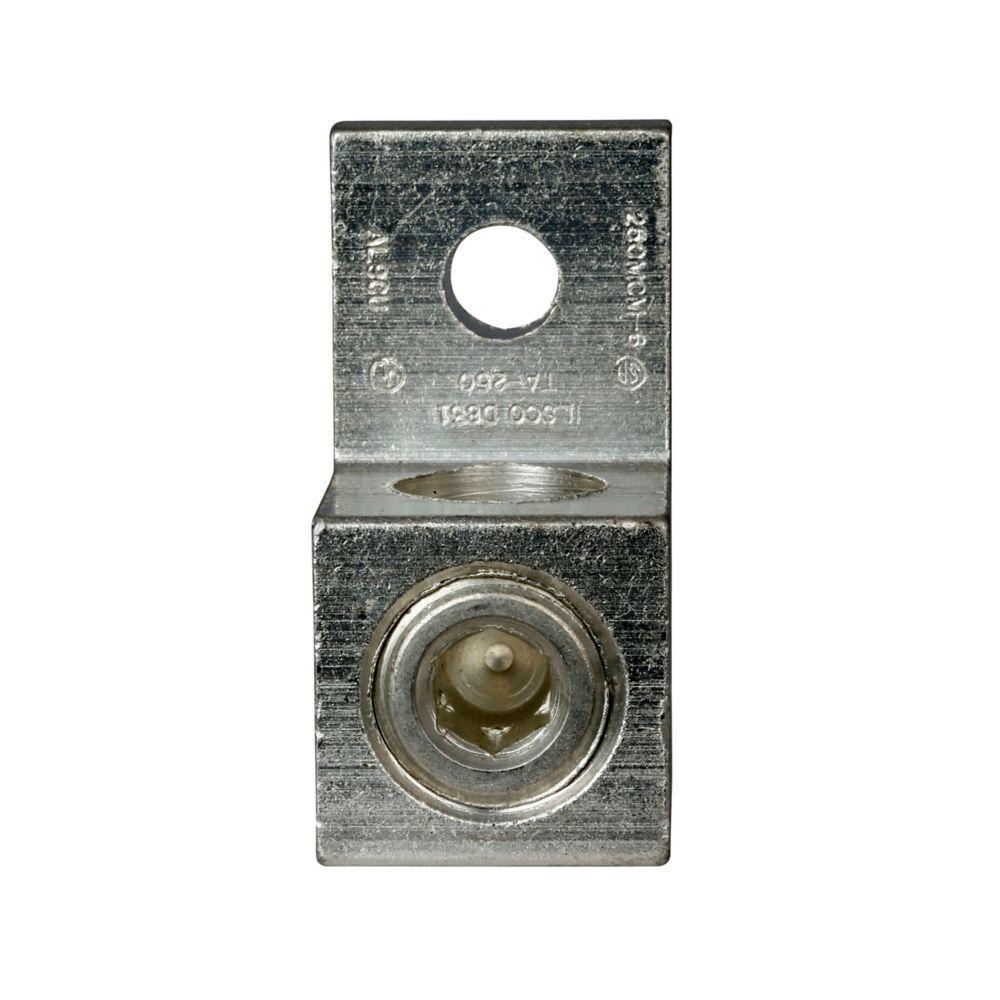

EATON Terminal Lug Kit, 1-Phase Dry, Specifications: 6 AWG to 250 kcmil Cable, 1/4-20 x 3/4 in, 3-Phase 1/4-20 x 1-3/4 in Bolt, For Use With: Type DT-3 50 to 75 kVA 1-Phase and 75 to 112.5 kVA 3-Phase Transformer, 5 in L x 5 in W x 2 in H Dimensions
| Dimensions | : | 5 in L x 5 in W x 2 in H |
| Specifications | : | 6 AWG to 250 kcmil Cable, 1/4-20 x 3/4 in, 3-Phase 1/4-20 x 1-3/4 in Bolt |
| Type | : | 1-Phase Dry |
| Suitable For Use With | : | Type DT-3 50 to 75 kVA 1-Phase and 75 to 112.5 kVA 3-Phase Transformer |
