Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.

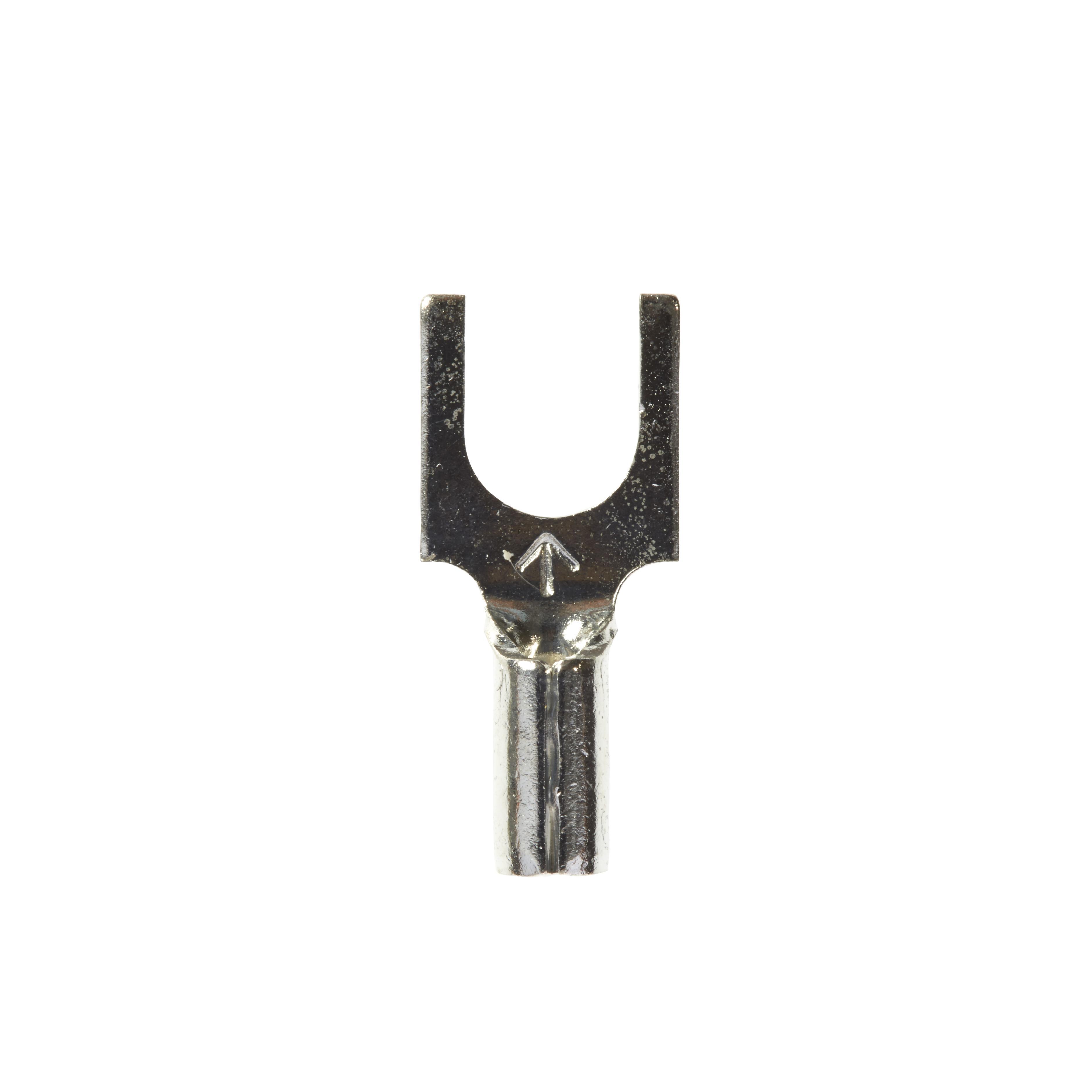

Panduit® Pan-Term® Fork Terminal, Loose Piece Non-Insulated, Series: P-FN, Copper Stranded Conductor, #16 Conductor, #10 Stud, 0.71 in Length, Brazed Seam Barrel, 0.07 in ID x 0.14 in OD Barrel, Narrow Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 2000 V, Specifications: 9/32 in L Wire Strip, 1/4 in Clearance, Standard Barrel Configuration, Fork Shape Enclosure, 302 deg F, Copper, Tin Plated, Metallic

• Fork design provides for fast and easy installation, without the need to remove fastener
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Locks in place for secure connection
• Brazed seam protects terminal barrel from splitting during the crimp process
• Non-expanded insulation
• Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time

• Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_P18-6F-M_Full_Engineering_Drawing.pdf
