Wiring Device-Kellems HBL430MI7W
Send Print
  1. pin-int

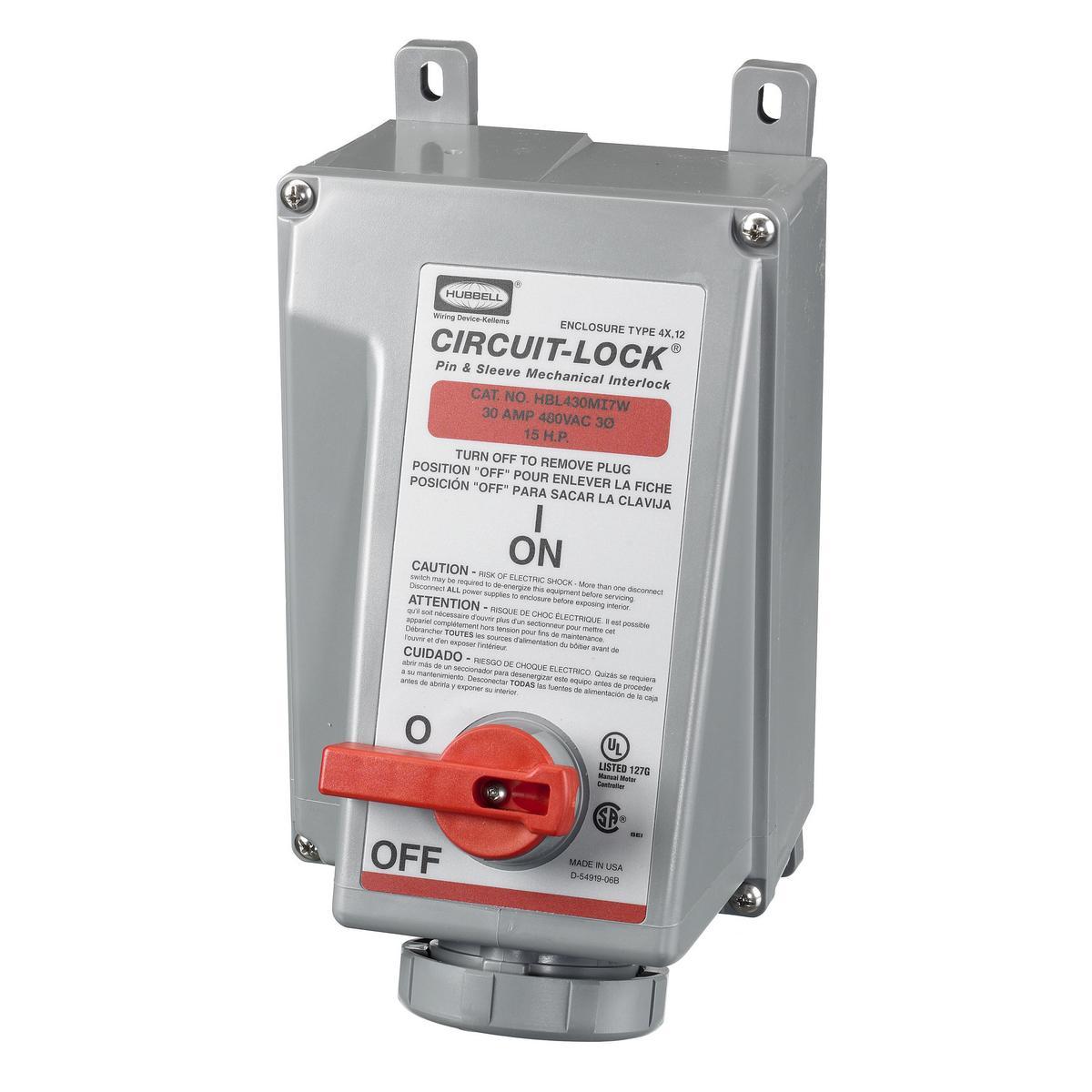

Wiring Device-Kellems HBL430MI7W

Wiring Device-Kellems HBL430MI7W 3-Phase Female Grounding Non-NEMA Standard Watertight Pressure Screw Terminal Mechanical Interlock Device, 480 VAC, 30 A, 3 Poles, 4 Wires

  • Manufacturer Name: Hubbell
  • MPN: HBL430MI7W
  • Brand Name: Wiring Device-Kellems
  • UPC: 783585405971
  • FEPN: HBL430MI7W HW
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Wiring Device-Kellems, HBL430MI7W, Mechanical Interlock Device, 3-Phase Female Grounding Non-NEMA Standard Watertight Pressure Screw Terminal, 480 VAC, 30 A, 14400 W Power, 3 Pole, 4 Wires, 1 in Hub, NEMA 4X/12/IP67 Enclosure, Threaded Mounting, Thermoplastic, Red, 8-3/4 in W x 11 in H Dimensions

Color       :      Red
Dimensions       :      8-3/4 in W x 11 in H
Enclosure       :      NEMA 4X/12/IP67
Hub Size       :      1 in
Material       :      Thermoplastic
Mounting       :      Threaded
Power Rating       :      14400 W
Type       :      3-Phase Female Grounding Non-NEMA Standard Watertight Pressure Screw Terminal
Voltage Rating       :      480 VAC
Amperage Rating       :      30 A
Number of Poles       :      3
Number of Wires       :      4

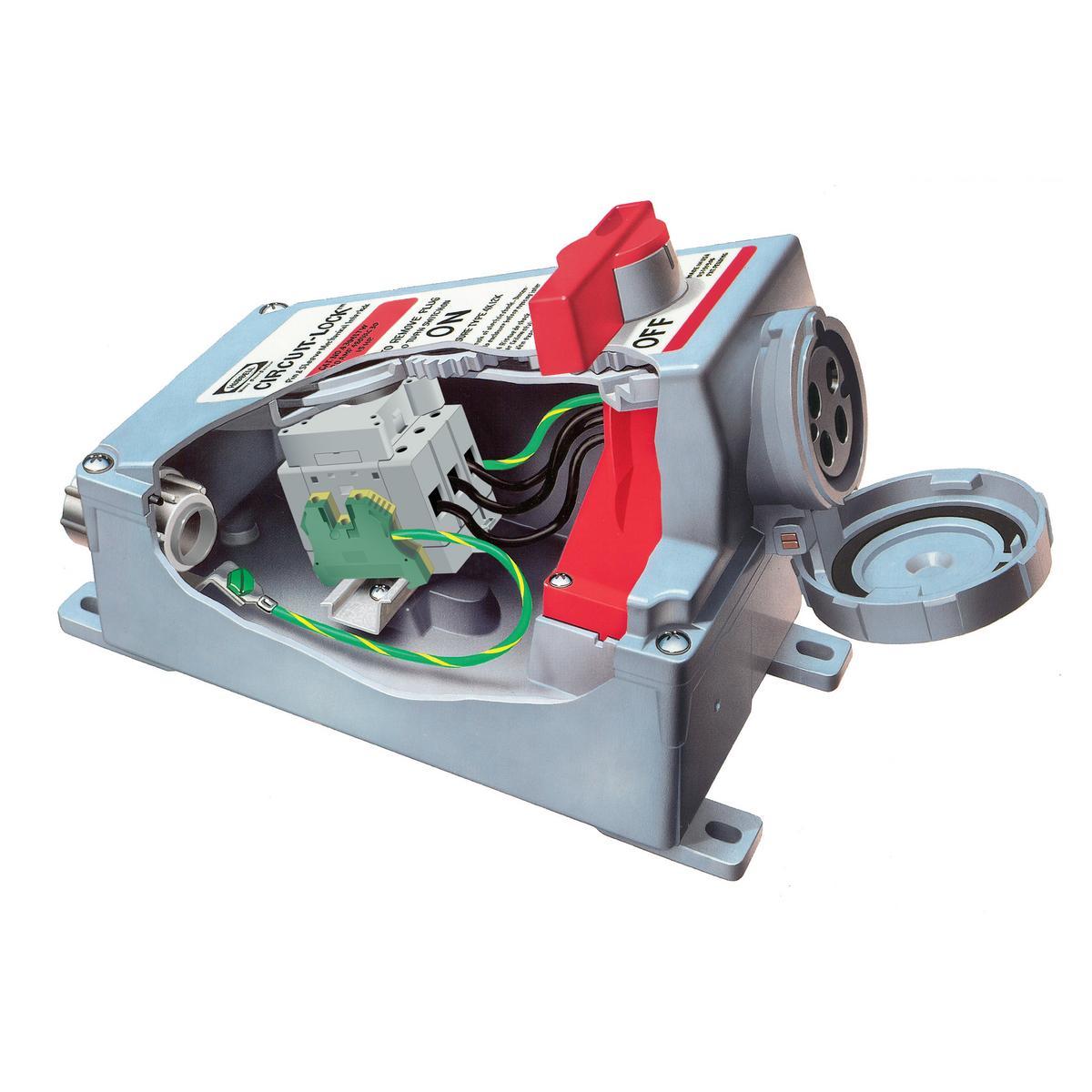

  • Large gears enclosed in a gear box
  • Pre-wired IEC Pin and Sleeve receptacle
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3b17e7ff2c8da5ce36c5debee7409c74204b9157bb30aaad3a2466a3c454f5b4.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cbc77276544478d46f95c85b83ce981abf5ec7d4cc94c0ec7f3595ff535c77c9.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fc0a0833ec27726d8a4e03550a8a2ec7e151b3d7d61b439b171fa0bd54a2393a.pdf
  • linkVIDEO LINK https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
