EATON E34GDBC2-51
Send Print
  1. pin-int

EATON E34GDBC2-51

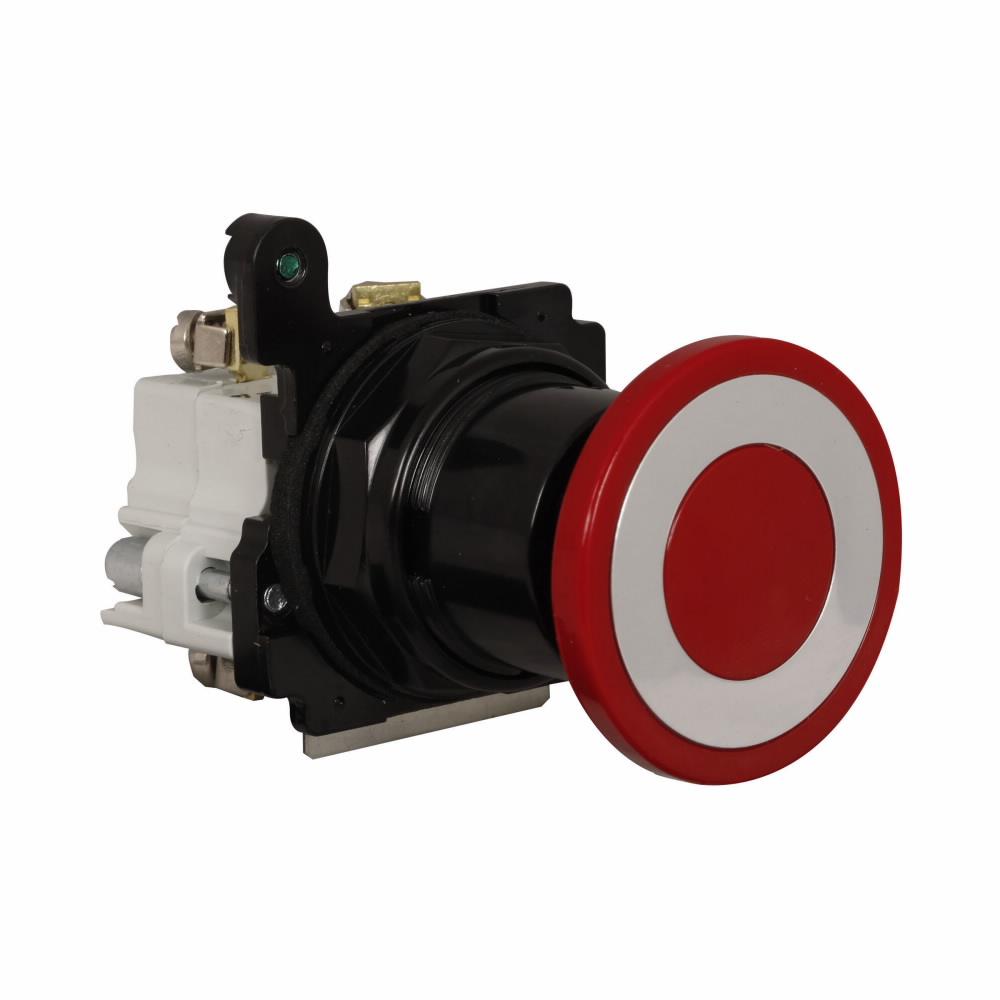

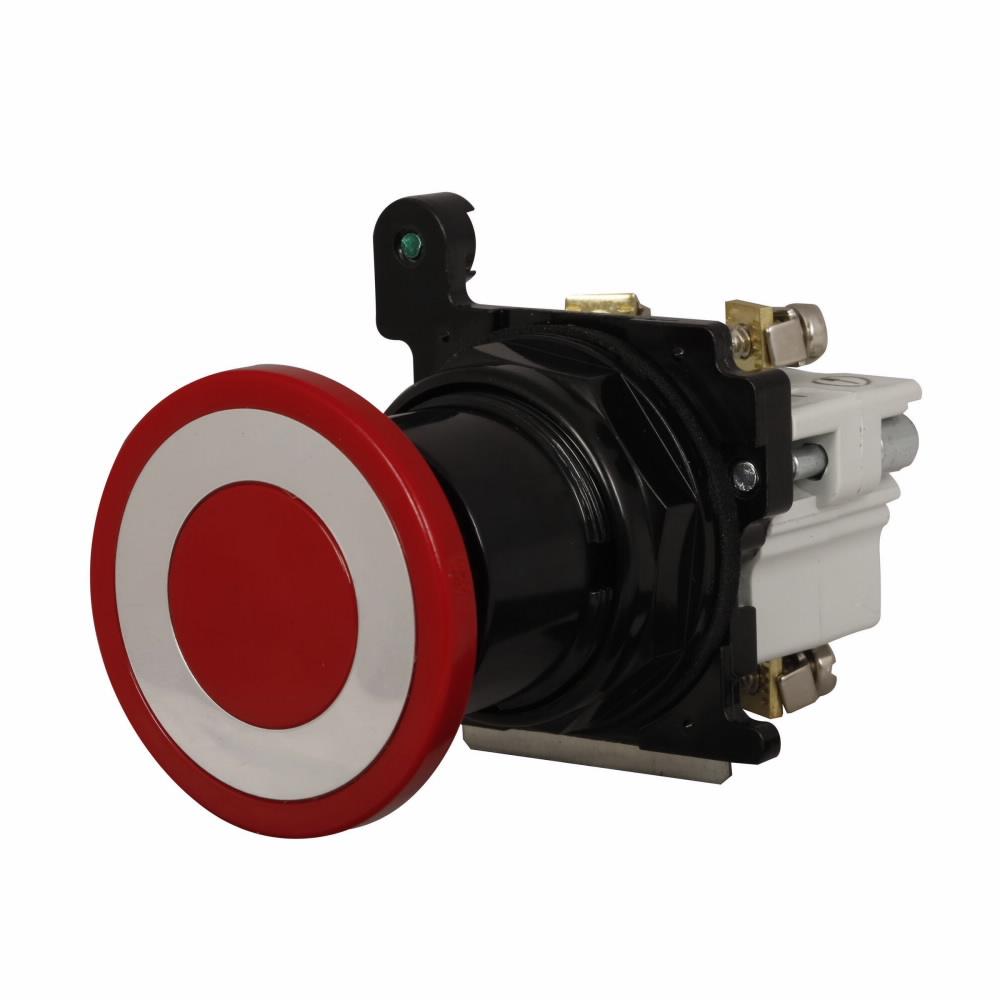

EATON E34GDBC2-51 Assembled Corrosion-Resistant Oil/Watertight Non-Illuminated Push/Pull Unit, 40 mm, 1NC Contact, Push/Pull Operator, Red

  • Manufacturer Name: Eaton
  • MPN: E34GDBC2-51
  • Brand Name: EATON
  • UPC: 782113882352
  • FEPN: E34GDBC2-51 EC
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

EATON E34 series 30.5 mm pushbutton line features the same rugged die-cast construction of our 10250T line with an additional 2-layer 100% solid thermosetting cathodic epoxy coating. This coating provides a flat black smooth, consistent, corrosion-resistant surface that has passed a demanding 600 hr salt spray test.

EATON Non-Illuminated Push/Pull Unit, Assembled Corrosion-Resistant Oil/Watertight, Series: E34, 40 mm Size, 1NC Contact Configuration, Maintained Contact Mode, 10 A at 600 VAC, 5 A at 250 VDC Contact, Push/Pull Operator, 2 Positions, Bezel/Housing: Metal Bezel, Standard Actuator, Integral Ground Screw/Saddle Clamp Terminal, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Die-Cast Zinc, Epoxy Coated, Red, Environmental Conditions: 1 to 150 deg F Operating Temperature, 95% Relative Humidity at 60 deg C

Actuator       :      Standard
Bezel/Housing       :      Metal Bezel
Contact Mode       :      Maintained
Contact Rating       :      10 A at 600 VAC, 5 A at 250 VDC
Enclosure Type       :      NEMA 3/3R/4/4X/12/13/IP65
Environmental Conditions       :      1 to 150 deg F Operating Temperature, 95% Relative Humidity at 60 deg C
Finish       :      Epoxy Coated
Material       :      Die-Cast Zinc
Number of Positions       :      2
Series       :      E34
Terminal Type       :      Integral Ground Screw/Saddle Clamp
Type       :      Assembled Corrosion-Resistant Oil/Watertight
Size       :      40 mm
Contact Configuration       :      1NC
Operator Type       :      Push/Pull
Color       :      Red
  • Factory sealed contact blocks
  • Front of panel drainage holes
  • Grounding nibs on the operator casing
  • Solid thermosetting cathodic epoxy coating on E34
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/E34GDBC2_51_Specification_Sheet_02.pdf
  • pdfOwners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/E34GFBC2N8_3X_User_Manual.pdf
  • linkVIDEO LINK http://videos.eaton.com/detail/video/6243433319001/how-to-size-and-select-a-power-supply?autoStart=true&q=power%20supplies
