Wiring Device-Kellems IG2320

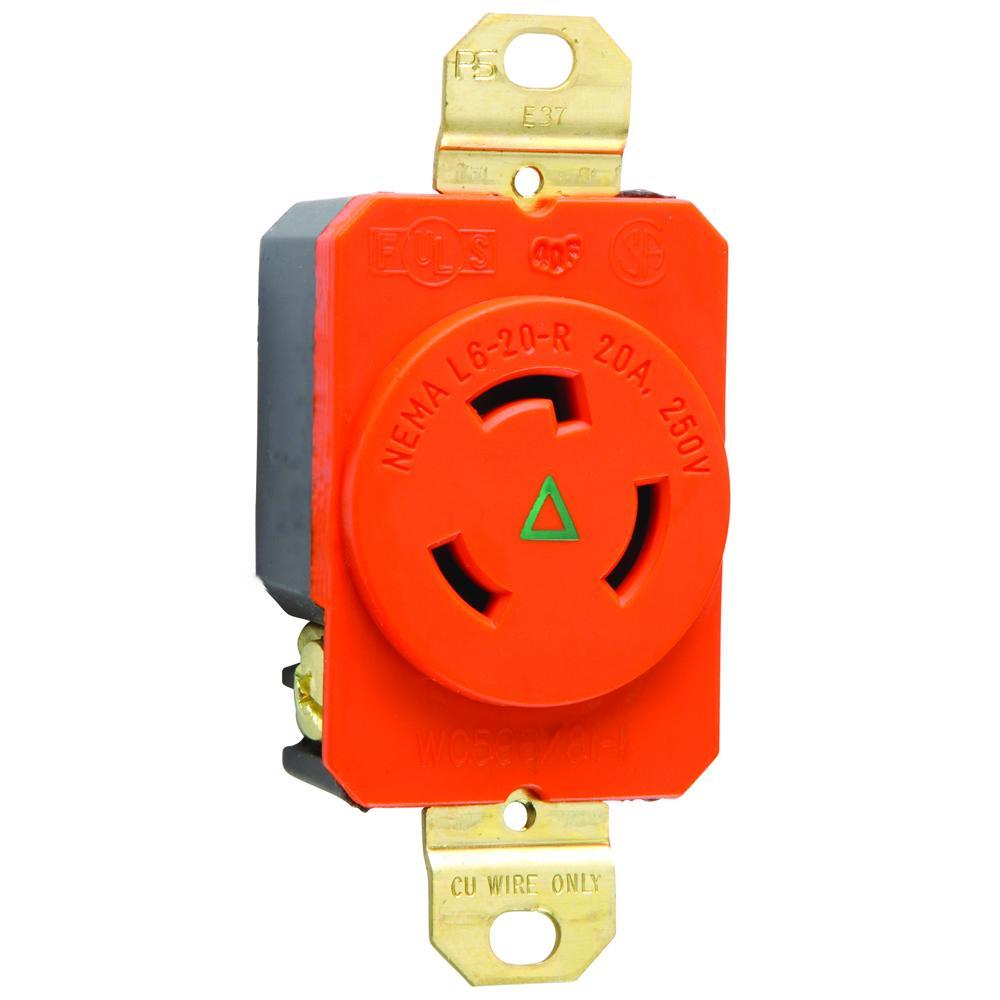

Wiring Device-Kellems IG2320 IG Series 1-Phase Heavy Duty Isolated Ground Screw Mount Flush Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Orange
- Manufacturer Name: Hubbell
- MPN: IG2320
- Brand Name: Wiring Device-Kellems
- UPC: 783585872223
- FEPN: IG2320 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, IG2320, Flush Receptacle, 1-Phase Heavy Duty Isolated Ground Screw Mount, Series: IG Series, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Orange, 3.28 x 1.7 x 1.24 in Dimensions
| Dimensions | : | 3.28 x 1.7 x 1.24 in |
| Enclosure | : | IP20 |
| Grade | : | Industrial |
| Horsepower | : | 2 hp |
| Material | : | Nylon |
| NEMA Rating | : | L6-20R |
| Series | : | IG Series |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase Heavy Duty Isolated Ground Screw Mount |
| Voltage Rating | : | 250 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Orange |
- Insulation barrier construction isolates ground contact from mounting strap
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- High-impact, abuse-resistant nylon face
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
