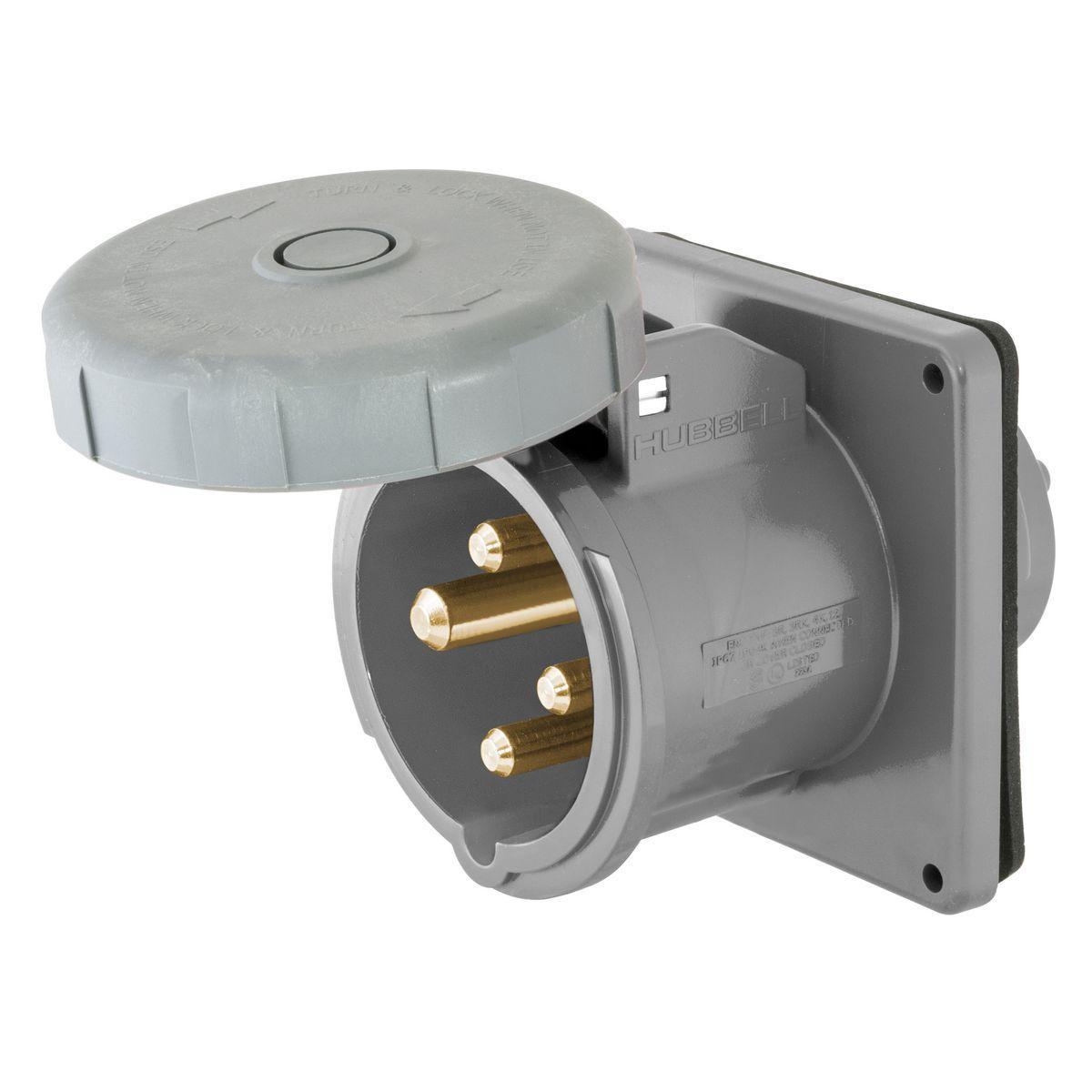

Wiring Device-Kellems M4100B12R
Wiring Device-Kellems M4100B12R 1-Phase Flanged Male Hull Mount Single Standard Watertight Screw Mount Pin and Sleeve Inlet, 125/250 VAC, 100 A, 3 Poles, 4 Wires, Gray
- Manufacturer Name: Hubbell
- MPN: M4100B12R
- Brand Name: Wiring Device-Kellems
- UPC: 783585410012
- FEPN: M4100B12R HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Pin and Sleeve Inlet, 1-Phase Flanged Male Hull Mount Single Standard Watertight Screw Mount, 125/250 VAC, 100 A, 3 Pole, 4 Wires, Marine Grade, IP56/IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Gray, 5-1/2 in W x 5-1/2 in H
| Dimensions | : | 5-1/2 in W x 5-1/2 in H |
| Enclosure | : | IP56/IP67 |
| Grade | : | Marine |
| Material | : | Thermoplastic |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Pressure Screw |
| Type | : | 1-Phase Flanged Male Hull Mount Single Standard Watertight Screw Mount |
| Voltage Rating | : | 125/250 VAC |
| Amperage Rating | : | 100 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Gray |
- Solid one piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
Specification Sheet
VIDEO LINK
