EATON Freedom series adjustable bi-metallic ambient compensated contactors are designed for use with CE or CN non-reversing and reversing contactors. They have interchangeable heater packs and are available in four sizes for overload protection up to 900 hp, reducing the number of different contactor/overload relay combinations that have to be stocked. They also feature a full line of snap-on accessories common to both IEC and NEMA devices.

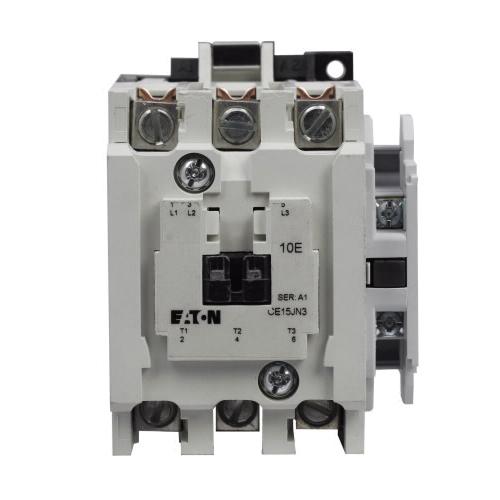

EATON IEC Contactor, Non-Reversing, Series: Freedom, 110/120 VAC Coil, 37 A Maximum Load Current, 3 hp Coil, 3 Pole, 50/60 Hz Frequency, Auxiliary Contact, 1NO Contact Configuration, 1 Auxiliary Contacts, 90 mm Size, Screw Terminal, Open Enclosure, 3000000 Cycles Operating Cycles, -5 to 65 deg C Operating, Panel/Side Mounting, 4.22 in L x 2.56 in W x 4.27 in H Dimensions
| Coil Power Rating | : | 3 hp |
| Contact Type | : | Auxiliary |
| Dimensions | : | 4.22 in L x 2.56 in W x 4.27 in H |
| Enclosure Type | : | Open |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | Panel/Side |
| Number of Auxiliary Contacts | : | 1 |
| Operating Cycles | : | 3000000 Cycles |
| Operating Temperature | : | -5 to 65 deg C |
| Series | : | Freedom |
| Size | : | 90 mm |
| Terminal Type | : | Screw |
| Type | : | Non-Reversing |
| Coil Voltage | : | 110/120 VAC |
| Maximum Load Current | : | 37 A |
| Contact Configuration | : | 1NO |
| Number of Poles | : | 3 |
- Horizontal or vertical mounting on upright pane allows for application freedom
- Screw type power terminals have captive, backed out self-lifting pressure plates with screws result in reduced wiring time
- Accessible terminals allow for ease of use and are convenient for simple wiring
- Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
- No overload relay
- For motor and power control equipment applications
