Wiring Device-Kellems HBL2711SW

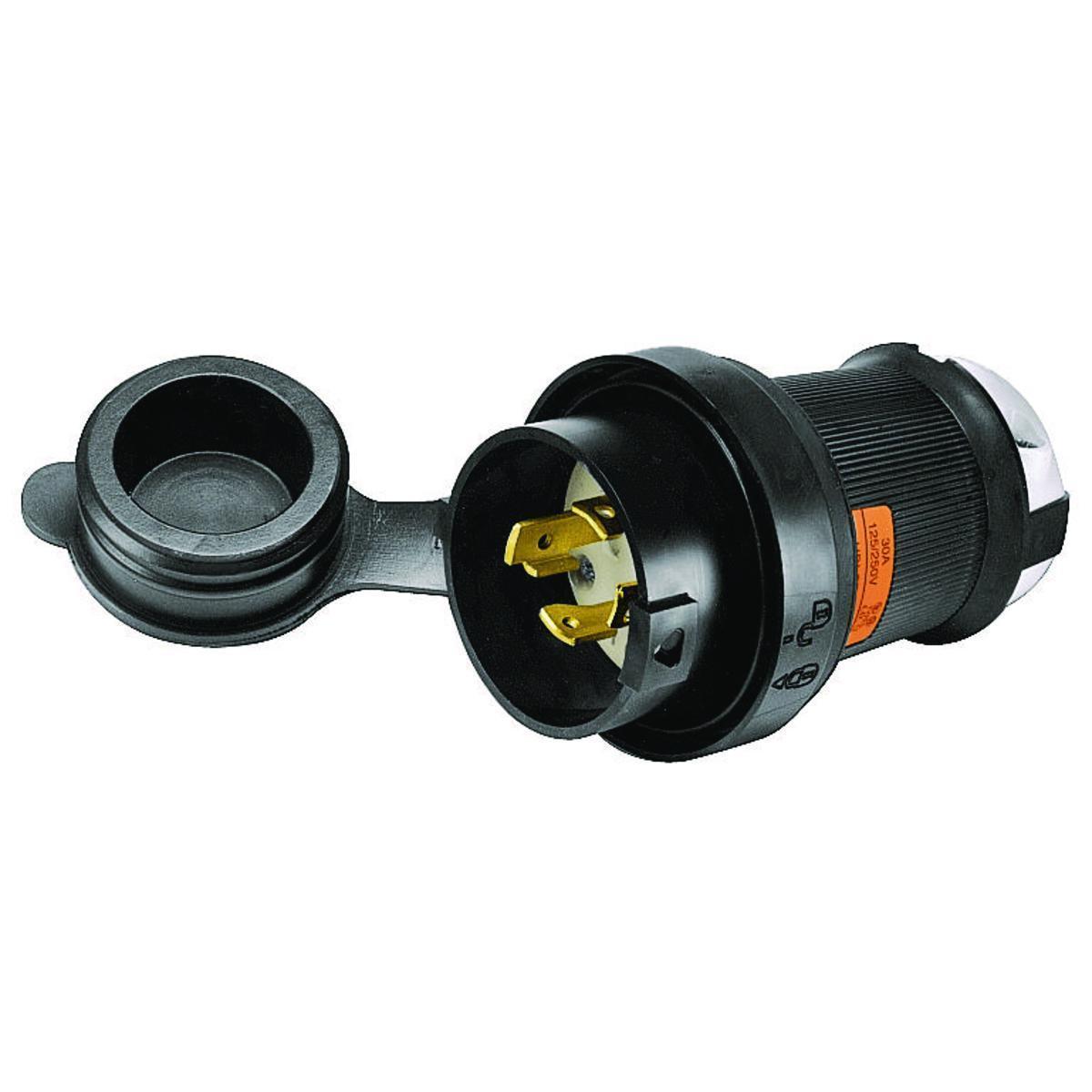

Wiring Device-Kellems HBL2711SW HBL® 1-Phase Extra Heavy Duty Grounding Cord Mount Watertight Locking Plug, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL2711SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585231761
- FEPN: HBL2711SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, HBL2711SW, Locking Plug, 1-Phase Extra Heavy Duty Grounding Cord Mount Watertight, Series: HBL®, 125/250 VAC, 30 A, 2 hp, 3 Pole, 4 Wires, L14-30P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.94 x 2.94 x 4.40 in Dimensions
| Cord Diameter | : | 0.35 to 1.15 in |
| Dimensions | : | 2.94 x 2.94 x 4.40 in |
| Enclosure | : | NEMA 4/4X/12/IP66 |
| Grade | : | Industrial |
| Horsepower | : | 2 hp |
| Material | : | Composite |
| NEMA Rating | : | L14-30P |
| Series | : | HBL® |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase Extra Heavy Duty Grounding Cord Mount Watertight |
| Voltage Rating | : | 125/250 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Black/White |
- Impact resistant shroud protects blades against bending and breaking
- Reduces exposure to arcing when connecting or disconnecting under load
- Superior cord grip design protects terminations from excess strain
Line Drawing
VIDEO LINK
