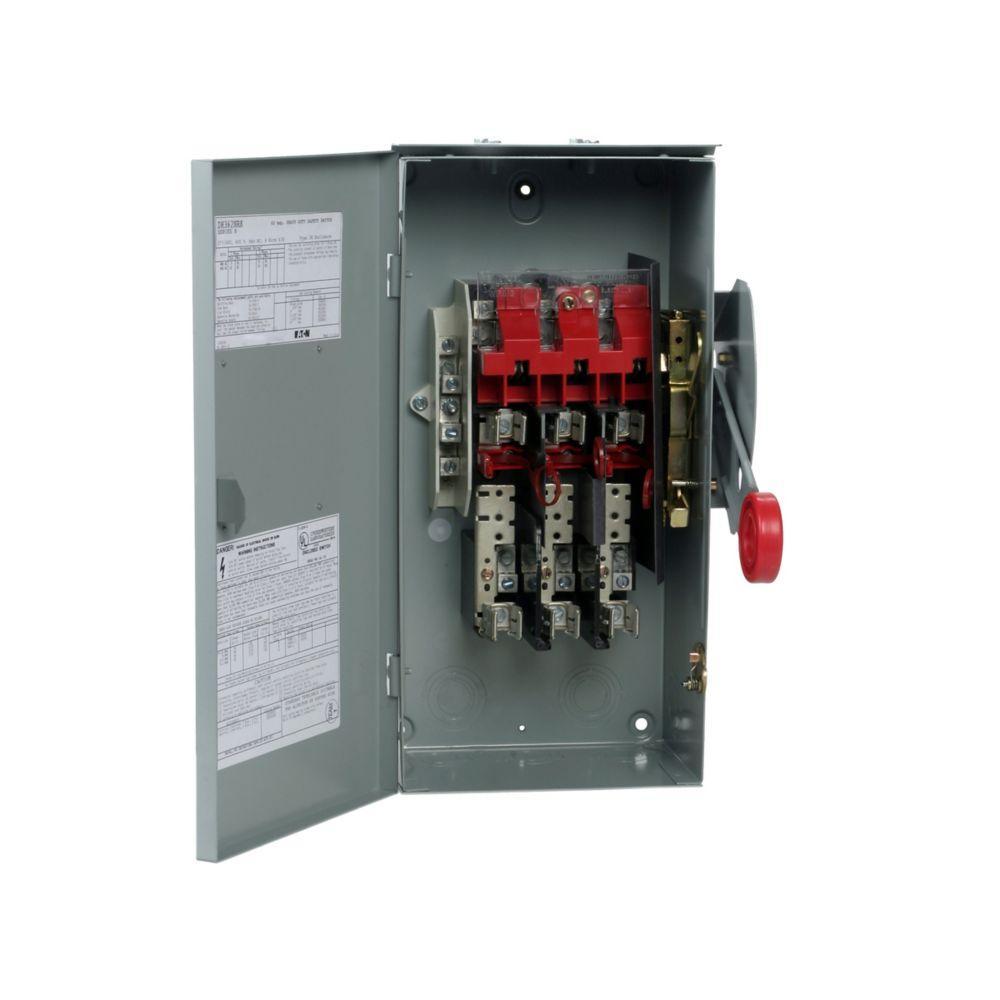

EATON DH362NRK
EATON DH362NRK K Series Heavy Duty Fusible Rainproof Safety Switch With Neutral, 600 VAC, 60 A, 20 hp, 25 hp, 30 hp, 50 hp, TPST Contact, 3 Poles
- Manufacturer Name: Eaton
- MPN: DH362NRK
- Brand Name: EATON
- UPC: 782113206059
- FEPN: DH362NRK EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
The safety switch flex center is a special facility at the site of our Cleveland, Tennessee, plant that is dedicated to providing customized safety switches that meet customer's challenging applications.
EATON Safety Switch, Heavy Duty Fusible Rainproof, Series: K Series, 600 VAC, 60 A, 20 hp, 25 hp, 30 hp, 50 hp, 1/3 ph, 3 Pole, 4 Wires, 200 kA Short Circuit, TPST, Class H Insulation, NEMA 3R, 16-1/2 in L x 9-1/4 in W x 8-1/4 in H, Steel, Galvanized/Painted
| Dimensions | : | 16-1/2 in L x 9-1/4 in W x 8-1/4 in H |
| Enclosure Type | : | NEMA 3R |
| Finish | : | Galvanized/Painted |
| Insulation Type | : | Class H |
| Material | : | Steel |
| Number of Wires | : | 4 |
| Phase | : | 1/3 |
| Series | : | K Series |
| Short Circuit Current Rating | : | 200 kA |
| Type | : | Heavy Duty Fusible Rainproof |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 60 A |
| Horsepower | : | 20 hp, 25 hp, 30 hp, 50 hp |
| Contact Form | : | TPST |
| Number of Poles | : | 3 |
