Wiring Device-Kellems DD100NLWH DD100NLWH HW | Fromm
Send Print
  1. pin-int

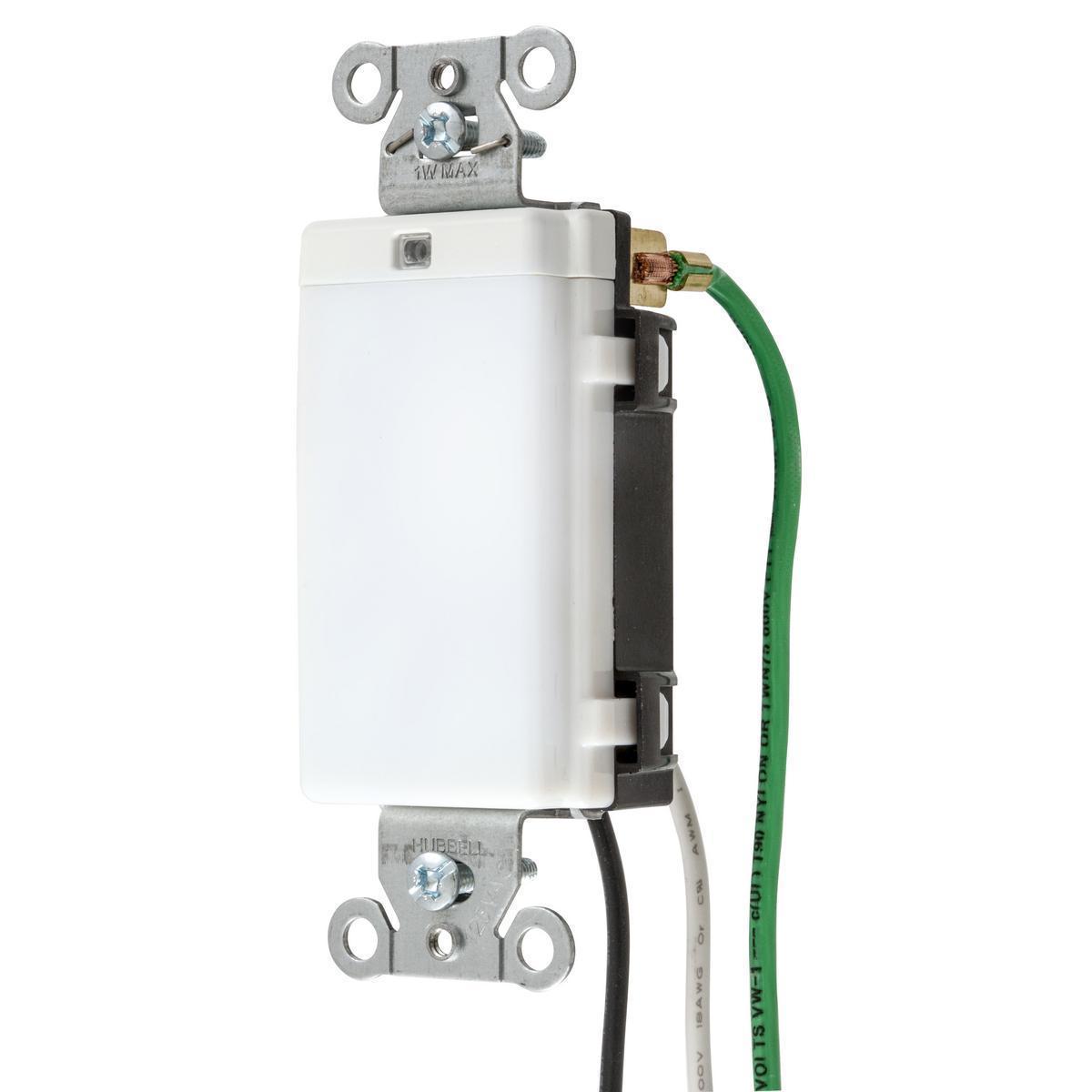

Wiring Device-Kellems DD100NLWH

Wiring Device-Kellems tradeSELECT® netSELECT® DD100NLWH 1-Phase 3-Wire Decorator Screw Terminal Night Light, LED Lamp, 125 VAC, White Housing

  • Manufacturer Name: Hubbell
  • MPN: DD100NLWH
  • Brand Name: Wiring Device-Kellems
  • UPC: 783585424842
  • FEPN: DD100NLWH HW
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Wiring Device-Kellems tradeSELECT® netSELECT® Night Light, 1-Phase 3-Wire Decorator Screw Terminal, 125 VAC, LED Lamp, 1 W Lamp, 3400 to 3600 K Color Temperature, Polycarbonate Lens, 1.5 Lumens, Threaded Mounting, Composite Housing Material, White Housing Finish, 1.74 in W x 1.13 in D x 4.14 in H

Color Temperature       :      3400 to 3600 K
Dimensions       :      1.74 in W x 1.13 in D x 4.14 in H
Housing Material       :      Composite
Lamp Wattage       :      1 W
Lens Type       :      Polycarbonate
Lumens       :      1.5 Lumens
Mounting Type       :      Threaded
Type       :      1-Phase 3-Wire Decorator Screw Terminal
Lamp Type       :      LED
Voltage Rating       :      125 VAC
Housing Finish       :      White
  • Full face lens for maximum illumination
  • 6 in pre-wired stranded wire with 1/2 in stripped ends
  • LED light activated when low levels of ambient light are detected by photosensor
  • Pre-wired 6 in leads for ease of installation
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_DD100NLLA_Installation_Manual.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_DD100NLLA_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_DD100NLWH_Specification_Sheet.pdf
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_IG8362SA_Warranty.pdf
