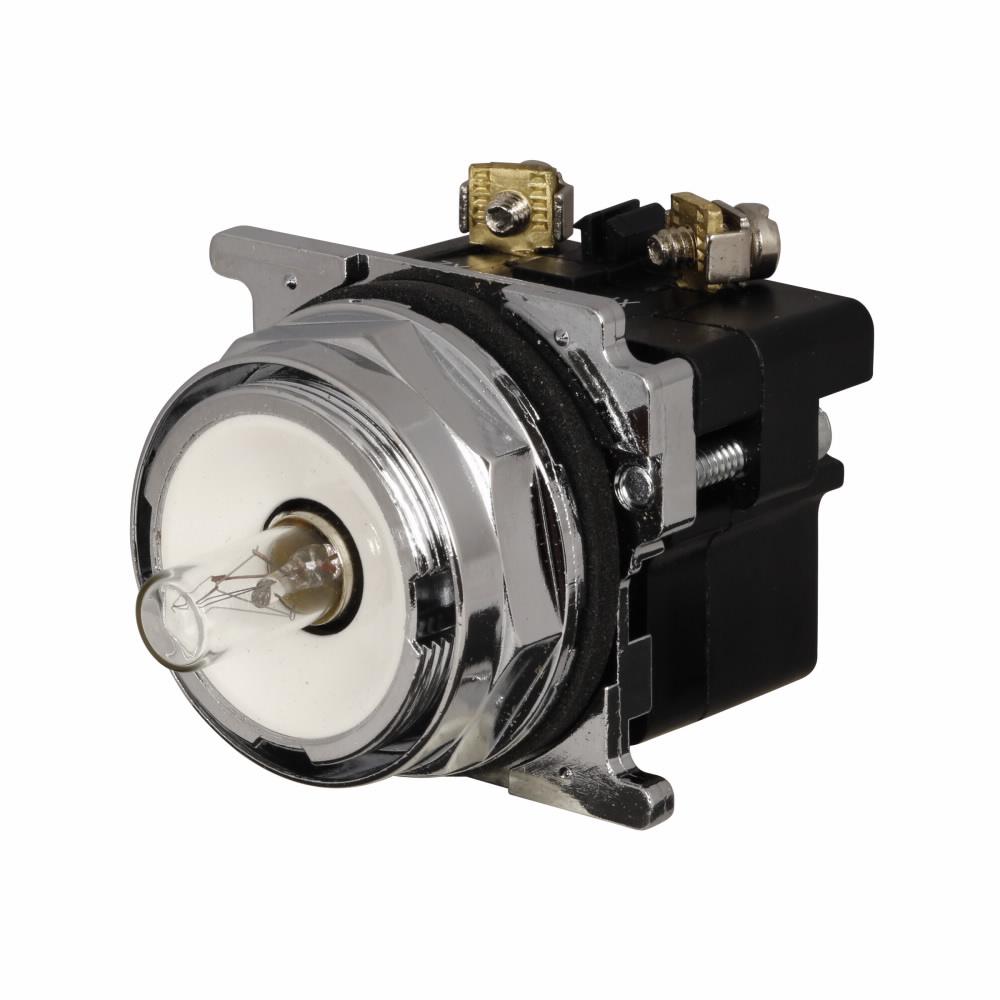

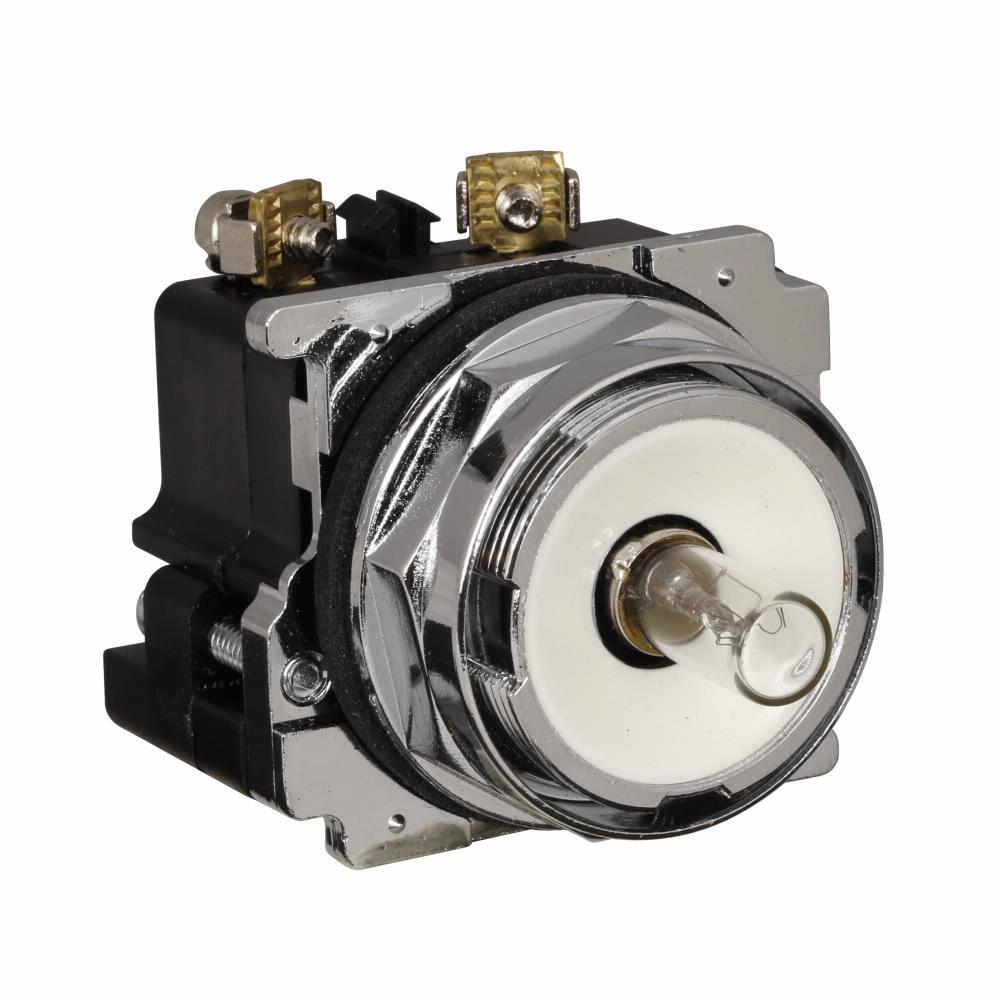

EATON 10250T201NC2N
EATON 10250T201NC2N 10250T Heavy Duty Oiltight Watertight Standard Actuator Indicating Light, 120 VAC, 0.5 A, Fresnel Lens, Panel Mount
- Manufacturer Name: Eaton
- MPN: 10250T201NC2N
- Brand Name: EATON
- UPC: 782113370941
- FEPN: 10250T201NC2N EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
EATON's 10250T line of 30.5 mm pushbuttons features a heavy duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the build-up of liquid inside the operator, which can prevent operation in freezing environments.
EATON Indicating Light, Heavy Duty Oiltight Watertight Standard Actuator, Series: 10250T, 120 VAC, 0.5 A, Fresnel Lens, Green Lens, Plastic Lens, Incandescent Lamp, Bezel/Housing: Polished Chrome, 30.5 mm, Round, 2500 hr Average Life, Pressure Plate Terminal, NEMA 3/3R/4/4X/12/13/IP65, Panel Mount, Environmental Conditions: 1 to 150 deg F Operating, 95% Relative Humidity at 60 deg C
| Average Life | : | 2500 hr |
| Bezel/Housing | : | Polished Chrome |
| Enclosure Type | : | NEMA 3/3R/4/4X/12/13/IP65 |
| Environmental Conditions | : | 1 to 150 deg F Operating, 95% Relative Humidity at 60 deg C |
| Lamp Type | : | Incandescent |
| Lens Color | : | Green |
| Lens Material | : | Plastic |
| Series | : | 10250T |
| Shape | : | Round |
| Size | : | 30.5 mm |
| Terminal Type | : | Pressure Plate |
| Type | : | Heavy Duty Oiltight Watertight Standard Actuator |
| Voltage Rating | : | 120 VAC |
| Amperage Rating | : | 0.5 A |
| Lens Type | : | Fresnel |
| Mounting Type | : | Panel |
- 120MB lamp number
- 2.4 in L x 2.1 in W x 3.2 in H dimension
- Resistor type light unit
