Panduit® LCCX1/0-12-X
Send Print
  1. pin-int

Panduit® LCCX1/0-12-X

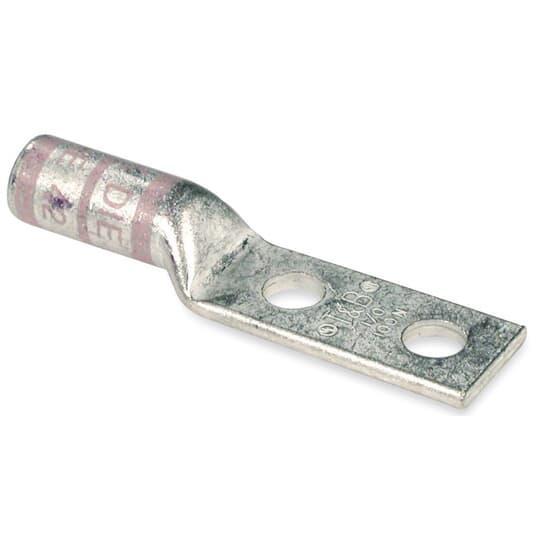

Panduit® Pan-Lug™ LCCX1/0-12-X 2-Hole Compression Connector Lug, 1/0 AWG Extra-Flexible/Flexible/Stranded Copper Conductor, Die Code: P42, 1/2 in Stud, Tin Plated Copper

  • Manufacturer Name: Panduit
  • MPN: LCCX1/0-12-X
  • Brand Name: Panduit®
  • UPC: 074983425778
  • FEPN: LCCX1/0-12-X PC
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Panduit® Pan-Lug™ Compression Connector Lug, 2-Hole, Series: LCCX, Extra-Flexible/Flexible/Stranded Copper Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kV, 1/2 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 4.83 in Overall Length, Long Barrel, 0.45 in ID x 0.58 in OD x 1.5 in L Barrel, 1-3/4 in Stud Hole Spacing, 1.56 in L Wire Strip, 90 deg C, 1.56 in Mounting Hole, Tin Plated Copper, Pink

Barrel Size       :      0.45 in ID x 0.58 in OD x 1.5 in L
Barrel Type       :      Long
Color       :      Pink
Mounting Hole Size       :      1.56 in
Overall Length       :      4.83 in
Series       :      LCCX
Specifications       :      1-3/4 in Stud Hole Spacing, 1.56 in L Wire Strip
Temperature Rating       :      90 deg C
Tongue Size       :      0.85 in W x 0.13 in THK
Tongue Type       :      Straight
Type       :      2-Hole
Voltage Rating       :      35 kV
Conductor Size       :      1/0 AWG
Conductor Type       :      Extra-Flexible/Flexible/Stranded Copper
Die Code       :      P42
Stud Size       :      1/2 in
Material       :      Tin Plated Copper
  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
  • Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • For use with flexible, extra-flexible and code stranded copper conductors
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC8-10AW-L_Installation_Manual.pdf
  • pdfFull Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCCX1_0-12-X_Full_Engineering_Drawing.pdf
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCCX6-14AB-L_Technical_Bulletin.pdf
  • videoVIDEO LINK https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4
