For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

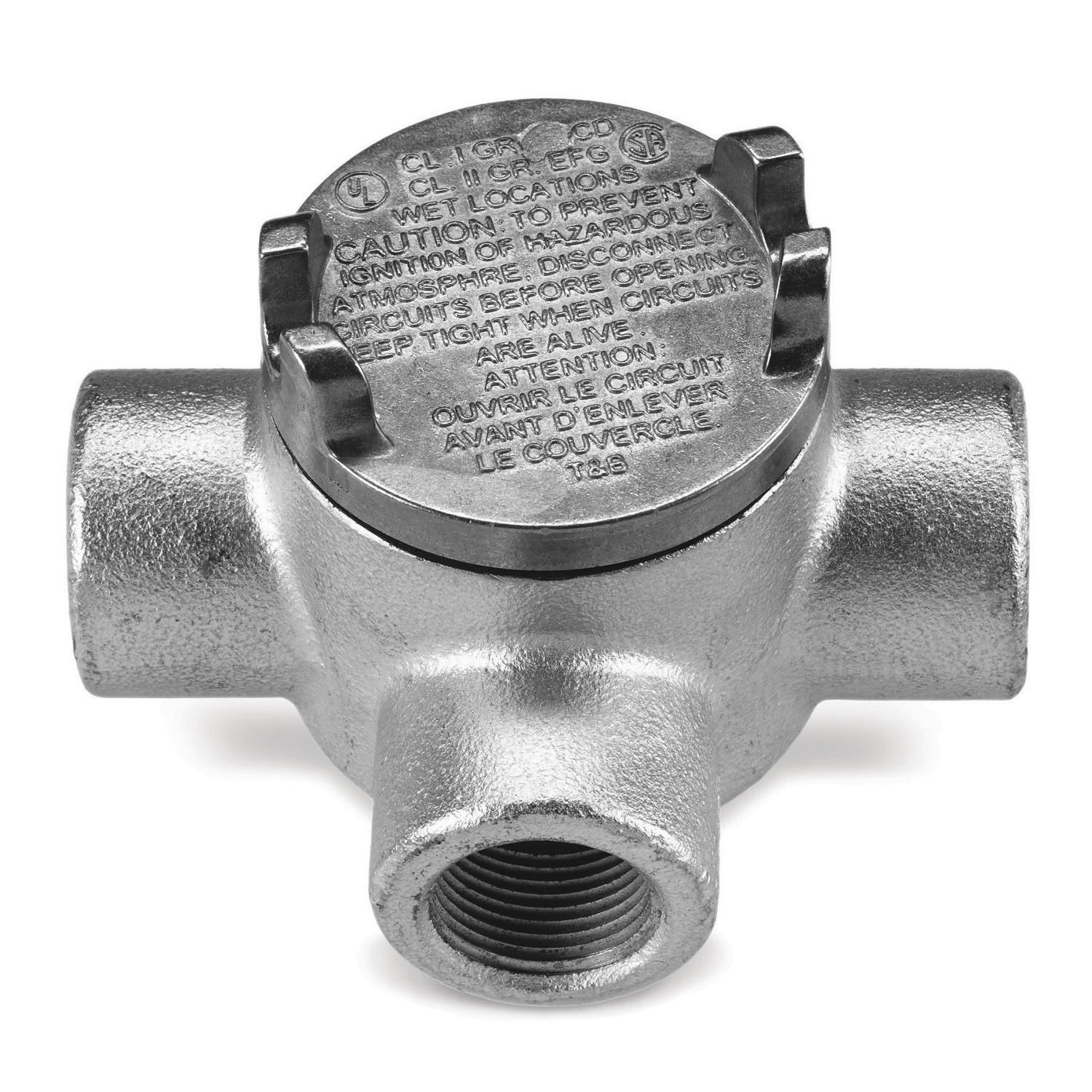

T&B® Conduit Outlet Box, Explosionproof, Series: GUAT, 3/4 in, 3 Gangs, 13.3 cu-in, Ductile Iron, Zinc Plated, 3-1/2 in OD
| Dimensions | : | 3-1/2 in OD |
| Material | : | Ductile Iron |
| Series | : | GUAT |
| Type | : | Explosionproof |
| Size | : | 3/4 in |
| Number of Gangs | : | 3 |
| Capacity | : | 13.3 cu-in |
| Finish | : | Zinc Plated |
- All hubs have a minimum of 5 full threads and integral bushing
- All boxes are furnished with internal grounding screw
- Provides easy access to wiring
- Provides junction in conduit for wire pulling and splices
- Changes direction in rigid conduit systems
- Attaches two or more pieces of conduit long run
- Guards against damage to wires in rigid conduit
- Cover supplied with O-ring gasket
- Die cast aluminum cover with natural finish
- Dust, ignitionproof and raintight
- 0.755 to 0.81 in Dia throat
- Zinc plated with aluminum acrylic paint boxes
- Grade 60-45-10 ductile iron bodies and cast aluminum covers
Specification Sheet
