Eaton's residential BR Circuit Breakers are used in load centers, panelboards, or similar devices. They are made for a wide range of applications and include: BR 1" circuit breakers and accessories for BR-style load centers; arc fault circuit interrupters (AFCI); and ground fault circuit interrupters (GFCI).

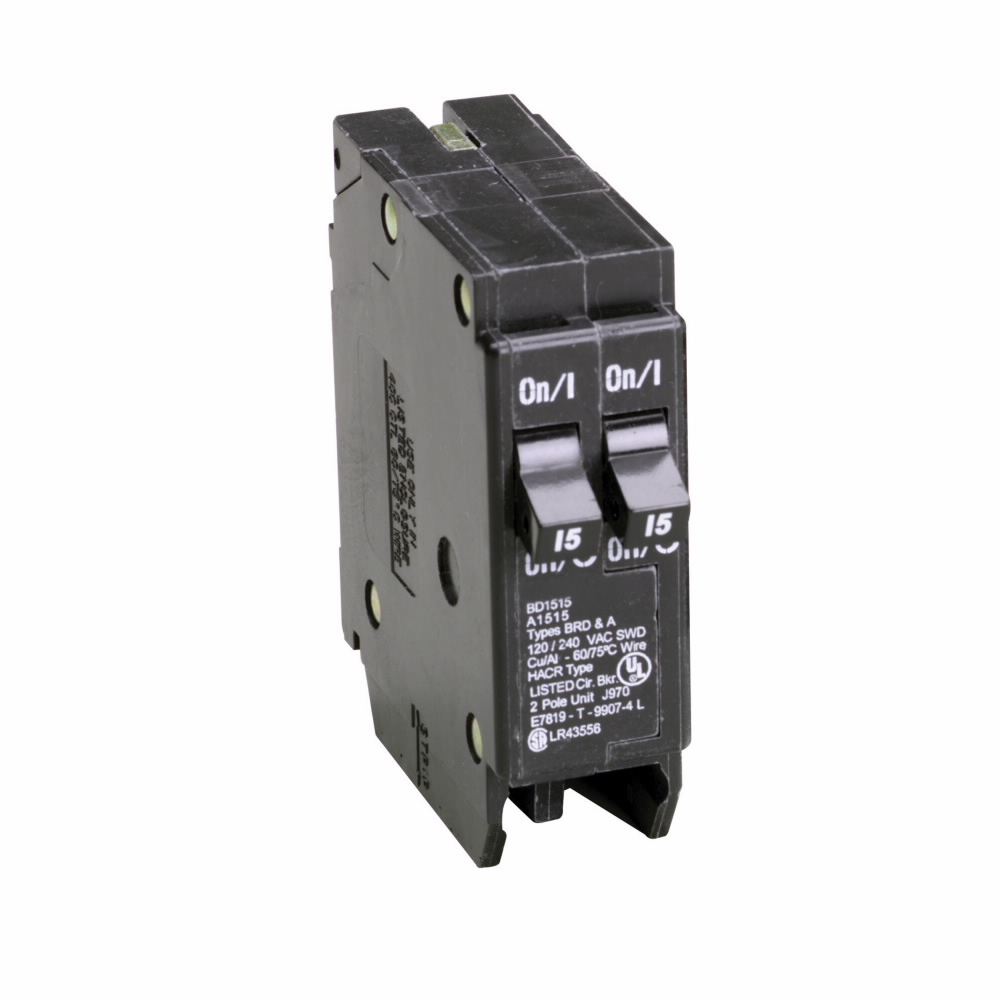

EATON Circuit Breaker, Type BR, 120/240 VAC, (2) 15 A, 10 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph ph, 14 to 4 AWG Wire, NEMA 1/4X/3R Enclosure, Plug-On Mounting, 600 to 750 deg C, 3 in L x 1 in W x 3 in H Dimensions
| Dimensions | : | 3 in L x 1 in W x 3 in H |
| Enclosure Type | : | NEMA 1/4X/3R |
| Mounting Type | : | Plug-On |
| Phase | : | 1 |
| Temperature Rating | : | 600 to 750 deg C |
| Type | : | Type BR |
| Wire Size | : | 14 to 4 AWG |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | (2) 15 A |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 1 |
| Trip Type | : | Thermal/Magnetic |
- BR duplex circuit breakers have independent trip
- BR duplex circuit breakers do not have the rejection tab feature
- BR duplex circuit breakers are a replacement breaker for enclosures manufactured prior to 1968 with un-notched stabs
- Requires one 1 in space
- For heating, air conditioning and refrigeration
- For use with BR loadcenter
